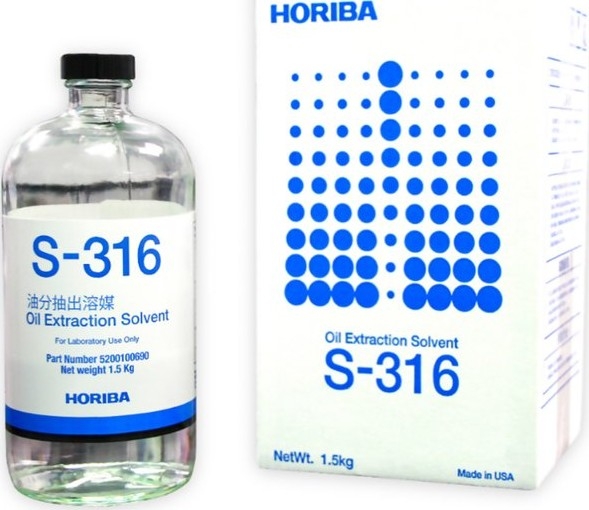

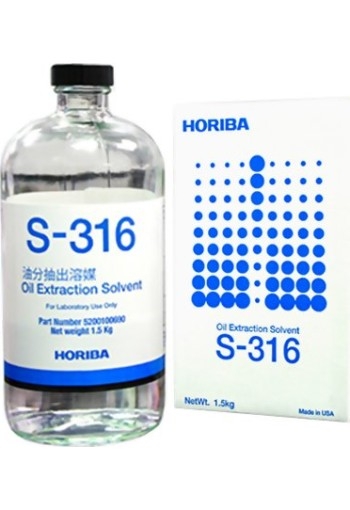

Horiba S-316 # 100690 Extraction Solvent Oil 1.5 Kg Bottle # 5200100690

---

Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration)

---

Extract the oil and grease from the sample

---

Perform the measurement by Infrared Absorption (NDIR)

---

Clean the measurement cel

---

The Horiba S-316 # 100690 is the solvent recommended in the ASTM Method D 7066-04 "Standard Test Method for dimer/trimer of chlorotrifluoroethylene (S-316) Recoverable Oil and Grease and Nonpolar Material by Infrared Determination".

Extraction solvent used with HORIBA Oil in Water analyzers OCMA (models, OCMA-310, OCMA-550, and OCMA-500). The solvent Horiba S-316 is used to extract the oil and grease (Total Hydrocarbons) from a water based sample as well as to extract hydrocarbons from metal parts (for contamination check).

This solvent is required to:

• Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration)
• Extract the oil and grease from the sample
• Perform the measurement by Infrared Absorption (NDIR)
• Clean the measurement cel

One bottle of S-316 allows performing up to 40 measurements* on a previously calibrated OCMA-550 analyzer

Ingredient Name	%	CAS Number
Polychlorotrifluoroethylene	65 - 75 %	9002-83-9
Chlorotrifluoroethylene Trimer or Tetramer	25 - 35 %	9002-83-9

*Base on 20 ml per measurement (15 ml for extraction and 5ml for cell cleaning)

Specifications

Net Weight	1.5 kg
Color	Colorless
Volume	approx. 847 ml
Density	1.77 at 20˚C
Viscosity at 100 °F	0.72 - 1.1 cs
Boiling Point	134°C (273.2°F)
IR Absorption	at 2930 cm-1 or 3.4 µm
Certificate of Analysis	on request (please specify the lot number)

Downloads

Horiba S-316 Extraction Solvent Oil - Data Sheet
