Measuring Range: 5 - 50% MC
2 Models
BMC - Biomass Moisture Meter with Memory - NO OUTPUT

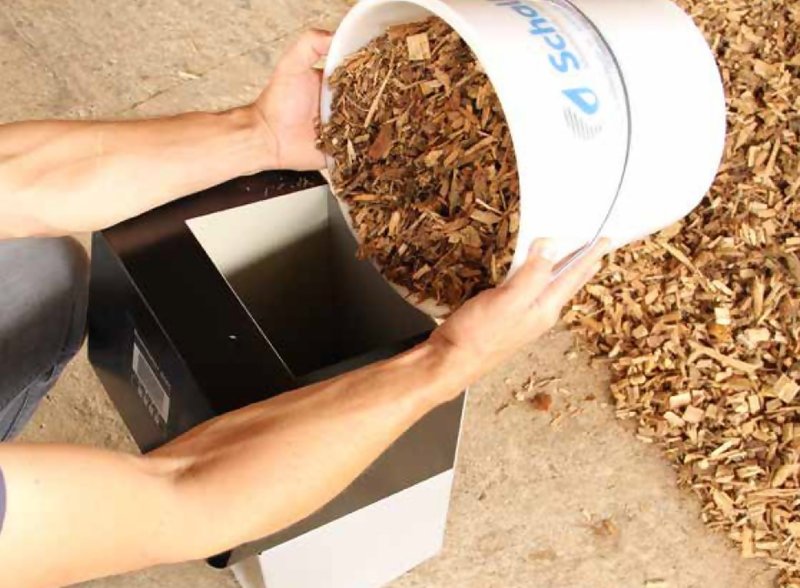

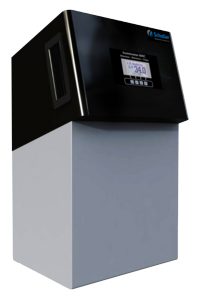

BMC-USB - Biomass Moisture Meter with Memory - USB DATA OUTPUT The Humimeter BMC Wood Chip Moisture Meter is a highly accurate moisture meter with automatic bulk density compensation for quick determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust. The entire measurement procedure is extremely easy & only takes seconds. Simply turn on the gauge, collect the desired Biomass test sample and pour into storage bin and view the water content (%-moisture) on the large backlit LCD display. The Humimeter BMC and BMC-USB models both include a built-in datalogger for storage of 10,000 values. The BMC-USB model ads USB data output for downloading stored data to a PC with software included at no additional charge. Both models include the possibility to program and store three (3) custom calibrations if one of the factory-supplied calibration is not sufficient to produce desired results. Also known as the HGF moisture meter.
Kit Contents
The BMC Moisture meter for determination of water content of wood chips includes everything needed for testing: - Includes Moisture Meter
- 13 Liter Platic Bucket
- Batteries and Instruction Manual
- BMC-USB also includes USB data transfer cable and PC Software
| |
Features
- Measuring range 5 to 50% water content, depending on the material
- Resolution 0.5% water content
- Calibration accuracy to reference material: +/-1.5%
- 12.5 liters sample volume
- Temperature can be set to °C or °F as required
- Automatic temperature compensation
- Temperature range for determination of water content: 0 to +40°C / 32 to 104°F
- Measurement within seconds without prior treatment of samples
- Sample temperature measurement
- Hold function, manual saving of results of up to 10,000 measuring values with measuring point report
- Operates from 4x AA-Batteries
- Dimensions 296 x 278 x 508 mm, weight approx. 7.9 kg
- Scope of supply: BMC with plastic bucket and batteries
- Measurement within seconds without prior treatment of samples
- Optional USB interface with internal rechargeable batteries
- Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
FactoryCalibration Curves
| Calibration Name | Description | Category | | Wood chips | For wood chips with fine fraction, consisting of at least one third hardwood. The fine fraction mainly derives from barks, small branches and bushes. | P31 to P45 | | Coarse wood chips | For coarse wood chips without fine fraction, consisting of at least one third hardwood. This curve is predominantly suited for measuring wood chips deriving from logs and full trees (poplar, willow) | P45 to P63 | | Softwood chips | For wood chips with fine fraction, mainly (more than two thirds) consisting of softwood (spruce, fir, pine, larch). The fine fraction mainly derives from barks, small branches and bushes. | P16 to P45 | | Softwood coarse chips | For coarse wood chips without fine fraction, mainly (more than two thirds) consisting of softwood (spruce, fir, pine, larch) of 70% and more. This curve is predominantly suited for measuring wood chips deriving from logs and full trees as well as saw | P45 to P63 | | Fine wood chips | For fine wood chips with a high proportion of fine fraction, consisting of at least one third hardwood. The fine fraction mainly derives from barks, small branches and bushes | P16 to P31 | | Free 1 | For custom calibration | | | Free 2 | For custom calibration | | | Free 3 | For custom calibration | | | Reference | For self-check using BM-ISO Test Medium | |
Specifications
| Measuring range | 5 to 50% water content, depending on the material | | Resolution | 0.5% water content | | Calibration accuracy | +/- 1.5% | | Measuring Principle | Capacitance | | Sample volume | 12.5 liters | | Temperature compensation | Automatic (°F or °C) | | Built-in Memory | 10.000 measuring values with measuring point report | | Housing Protection | IP40 | | Menu Languages | English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish | | Display | Graphic LCD display with backlight (128 x 64 pixel) | | Operating temperature | -20°C to +40°C (-4 °F to 104 °F) | | Storage temperatur | 0°C to +60°C (32 °F to 140 °F) | | Dimensions | 296 x 278 x 508 mm (11.7" x 10.9" x 20") | | Weight | 7.9 Kg (17.4 Lbs) |
