Name: Imada FB-30 Mechanical Force Gauge FB Series, 30 lbf
Rating: 5.0 (1 reviews)

Imada FB-30 Mechanical Force Gauge Series FB, 30 lbf Capacity

See More Mechanical Force Gauges

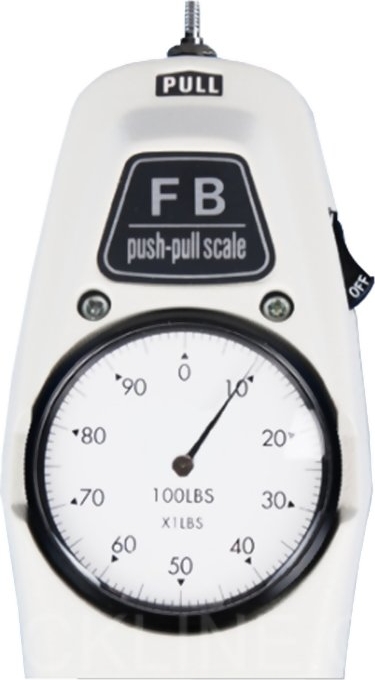

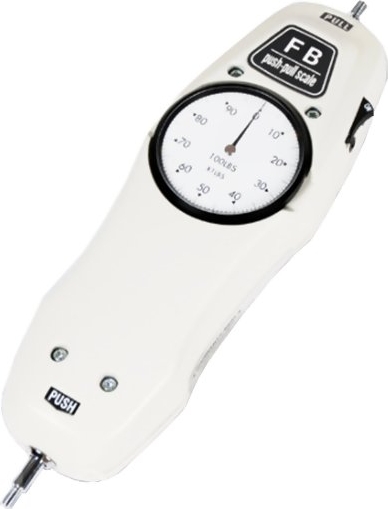

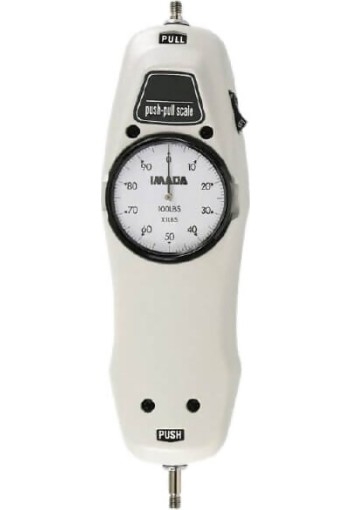

Imada FB Economical Mechanical Force Gauge

25 Ranges up 100lbs / 50 Kg / 500 N

Intrinsically Safe for use in hazardous environments

Rugged construction and excellent accuracy make the Imada FB Mechanical Force Gauge ideal for tension and compression quality control measurements. Many ranges of the Imada FB are offered, calibrated in Pounds, Kilograms, or Newtons.

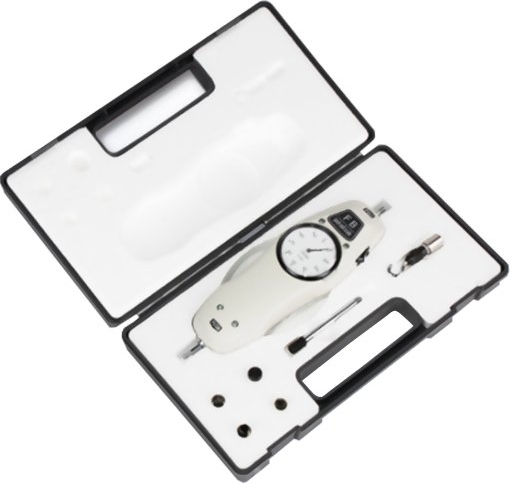

Kit Contents

Imada FB Mechanical Force Gauge

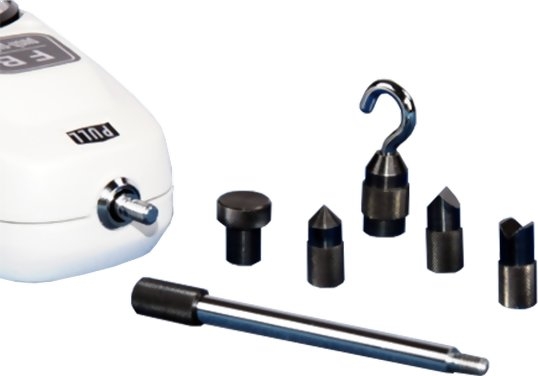

5 measuring attachments (flat head, conical, chisel, notched, and small hook)
3 inch extension shaft
NIST Traceable Calibration Certificate

Features

Accuracy of ± 0.3%
Ideal for push / pull measuremnts in all envirements
Real Time force display with peak capture
Free manufacturer´s calibration report
Zero Tare Ring to zero the gauge in each position
Full set of accessories and carrying case included
Hand-held use or can be mounting a on test stand
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty

Force Ranges

Model	Capacity (resolution)	Model	Capacity (resolution)
FB-2	2 lb (0.02 lb)	FB-10KG	10 kg (100 g)
FB-5	5 lb (0.05 lb)	FB-20KG	20 kg (200 g)
FB-10	10 lb (0.1 lb)	FB-30KG	30 kg (250 g)
FB-20	20 lb (0.2 lb)	FB-50KG	50 kg (500 g)
FB-30	30 lb (0.25 lb)	FB-10N	10 N (0.1 N)
FB-50	50 lb (0.5 lb)	FB-20N	20 N (0.2 N)
FB-100	100 lb (1 lb)	FB-30N	30 N (0.25 N)
FB-150*	150 lb (1 lb)	FB-50N	50 N (0.5 N)
FB-1KG	1 kg (10 g)	FB-100N	100 N (1 N)
FB-2KG	2 kg (20 g)	FB-200N	200 N (2 N)
FB-3KG	3 kg (25 g)	FB-300N	300 N (2.5 N)
FB-5KG	5 kg (50 g)	FB-500N	500 N (5 N)
