Ergonomic, heavy-duty metal construction
Intrinsically safe
Capacity up to 100 lbf

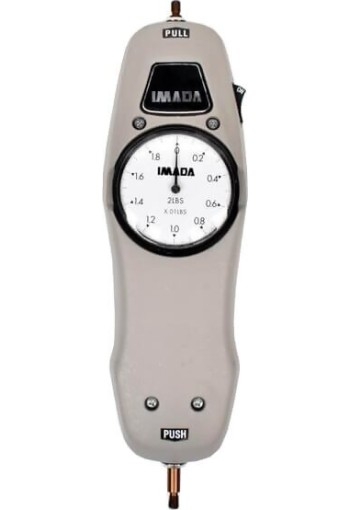

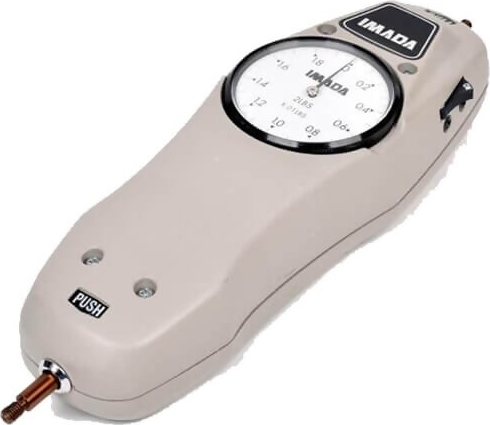

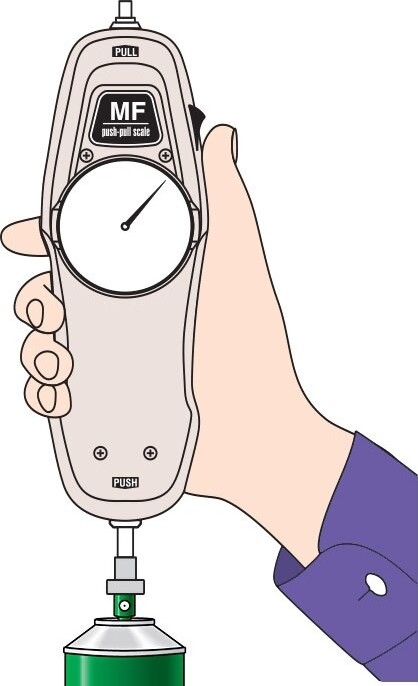

The Imada MF Mechanical Force gauges are the highest accuracy gauges available, making them ideal for precision tension and compression measurements in laboratory environments. Ergonomic design makes it ideal for hand held use, or the force gauge can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows users to easily switch between Real-Time Mode and Peak Mode. The MF force gauge is an analog force gauge and does not require charging, it is available for use at any time. Many ranges are available to cover all of your measurement needs (also available in Newtons).

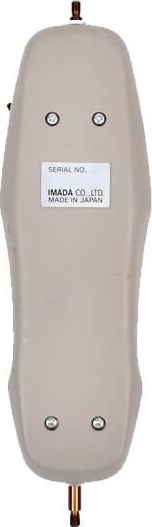

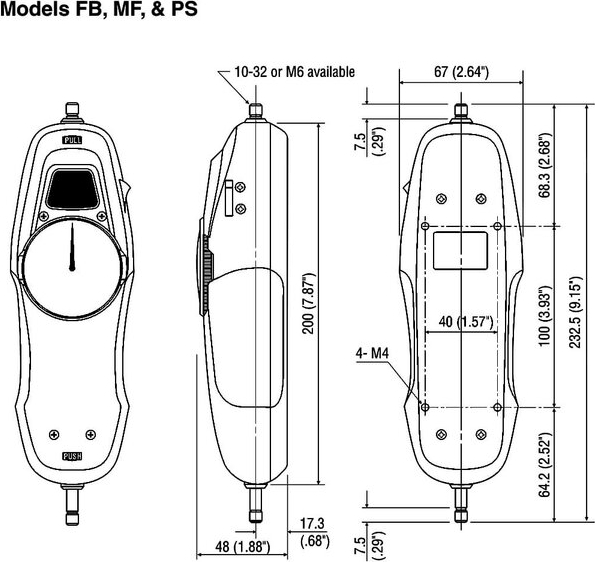

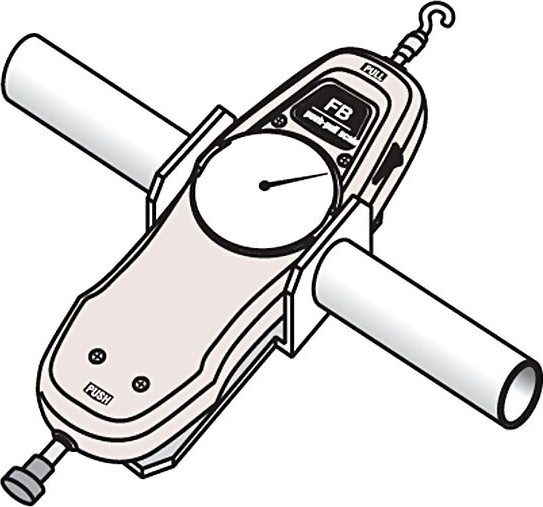

The resolution of the MF is 2 times finer than the FB mechanical force gauge. The ergonomic design is well suited for hand held testing, and the gauges have four threaded holes for mounting to a test stand or the optional handle.
ISO-17025 certificates are available for an additional charge.
Kit Contents
- Imada MF Mechanical Force Gauge
- 7 Measuring Sttachments (flat head, cone, chisel, notched, small hook, large hook, and Y-hook)
- Extension Rod
- Certificate of Calibration Traceable to NIST
- Hard Plastic Carrying Case
|
|
Features
- Push/Pull
- Ergonomic, heavy-duty metal construction
- No batteries needed
- Intrinsically safe
- Capacity up to 100 lbf
- Accuracy ±0.3% F.S.
- Overload capacity 165 lbf on all ranges
- Tare ring
- Real time and peak mode
- Full set of accessories and carrying case included
- Mechanical force gauges are not recommended for destructive testing or shock load applications
Ranges
| Model |
Capacity (Resolution) |
| Pounds |
|
| MF-32oz |
32 ozf (0.25 ozf) |
| MF-80oz |
80 ozf (1 ozf) |
| MF-2 |
2 lbf (0.01 lbf) |
| MF-5 |
5 lbf (0.025 lbf) |
| MF-10 |
10 lbf (0.05 lbf) |
| MF-20 |
20 lbf (0.1 lbf) |
| MF-30 |
30 lbf (0.2 lbf) |
| MF-50 |
50 lbf (0.25 lbf) |
| MF-100 |
100 lbf (0.5 lbf) |
| Kilograms |
|
| MF-2kg |
2 kgf (10 gf) |
| MF-3kg |
3 kgf (20 gf) |
| MF-5kg |
5 kgf (25 gf) |
| MF-10kg |
10 kgf (50 gf) |
| MF-20kg |
20 kgf (100 gf) |
| MF-30kg |
30 kgf (200 gf) |
| MF-50kg |
50 kgf (250 gf) |
| Newtons |
|
| MF-10N |
10 N (0.05 N) |
| MF-20N |
20 N (0.1 N) |
| MF-30N |
30 N (0.2 N) |
| MF-50N |
50 N (0.25 N) |
| MF-100N |
100 N (0.5 N) |
| MF-200N |
200 N (1 N) |
| MF-300N |
300 N (2 N) |
| MF-500N |
500 N (2.5 N) |
