Compact STE4 Electronic Stethoscope with Peltor Headphones including 70mm & 300mm probes

See More Electronic Stethoscope

Compact STE4 Electronic Stethoscope with Peltor Headphones including 70mm & 300mm probes

See More Electronic Stethoscope
Price:
$769.00
warrenty

Product Description

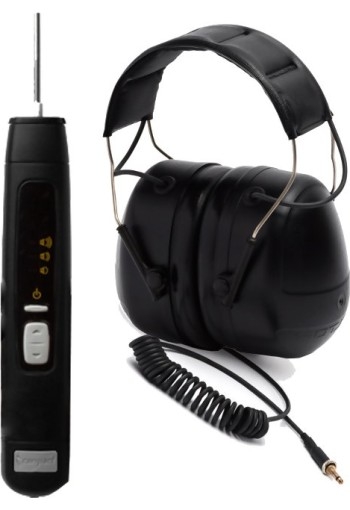

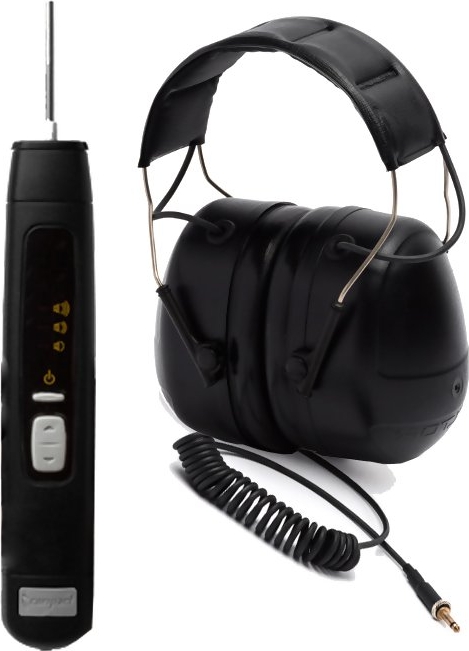

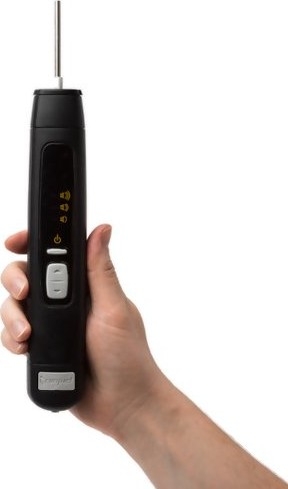

Compact STE4 Electronic Stethoscope
Electronic Stethoscope
Two probes - 70mm & 300mm
Includes Peltor Headphones

The Compact STE4 Electronic Stethoscope is designed to help locate the source of excess bearing and machine noise easily at low cost. It is an ideal easy to use listening device for mechanical generated noise in all types of applications.

The 3.5mm jack socket tape output can also be fed into an audio tape recorder to store the data for either further analysis or as a reference for future comparison.


line

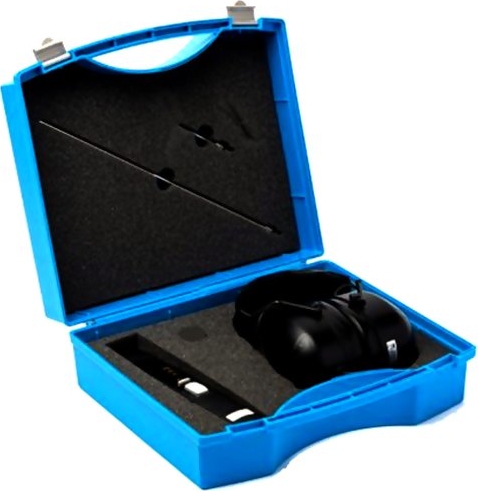

Kit Contents
line

  • STE4 Electronic Stethoscope
  • Peltor headset
  • 70mm probe
  • 300mm probe
  • Batteries
  • Carrying Case


line
Features
line

  • Piezo Transducer
  • Peltor headset
  • Two probes - 70mm & 300mm
  • Digital volume control - 32 steps
  • 4x AAA batteries for 30 hrs continuous use (typical)
  • Jack socket output for recording


line
Specifications
line

Frequency Range30Hz - 15KHz
Ambient Temp-10 to +45°C
Output VolumeDigitally adjustable in 32 steps
Battery4 x AAA Alkaline cells
Battery lifeApprox. 30 Hours
Dimensions300 x 40 x 40mm
Probes1 x 300mm
1 x 70mm
Headphones8 Ohm
Probes300mm and 70mm


line
Applications
line

An ideal easy-to-use listening device for mechanically generated noise in all types of applications.

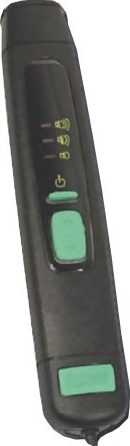

  • Maintenance Tool:The new STE3 is ideal for checking abnormal operational machinery noise levels when setting up routine maintenance plans.
  • Recording Data:The jack socket output is designed to be fed into an Audio Tape Recorder to store data for further analysis.
  • Contact Probes:Two lengths of contact probe are supplied, 70mm for normal use and 300mm to give access to more difficult locations.

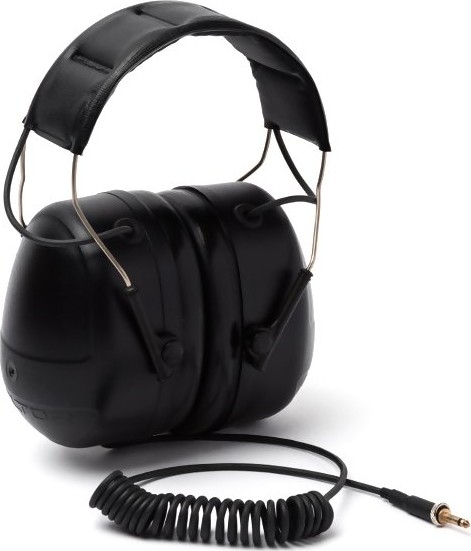

  • Headset: A high quality Peltor headset is included, designed to minimise background sounds in high noise environments.


line
Downloads
line

STE4 Electronic Stethoscope - Instruction Manual
STE4 Electronic Stethoscope - Certificate of Calibration Example
