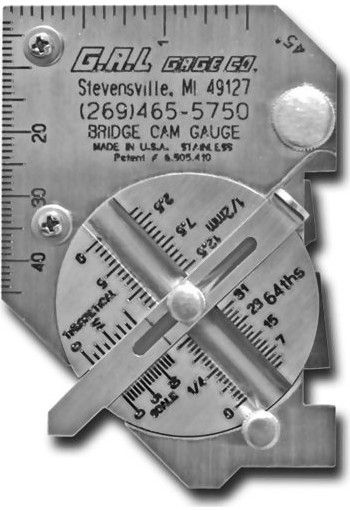

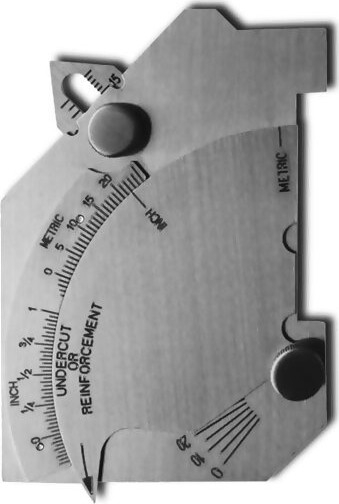

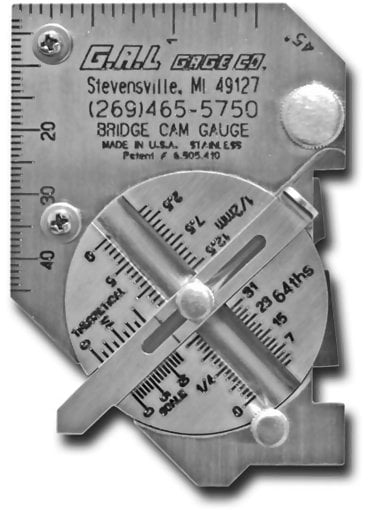

G.A.L. Gage Co. Cat # 4a Pocket Bridge Cam Gauge GAL-4a, Inch & Metric

---

Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more.

---

Measurement Scale: Inch & Metric

---

Warranty: One Year

---

G.A.L. Gauge Co. GAL-4 Bridge Cam Gauge Cat # 4

The following measurements are possible in either inches or millimeters

Features

---

• Angle of Preparation, 0º to 60º
• Excess Weld Metal (capping size)
• Depth of Undercut By 1/32”
• Depth of Pitting By 1/32”
• Fillet Weld Throat Size (1/64” or .5 mm, Theoretical & Actual)
• Fillet Weld Leg Length
• Misalignment (High-Low)

Downloads

---

G.A.L. Gage Co. Cat # 4a Pocket Bridge Cam Gauge GAL-4a, Inch & Metric - Data Sheet

G.A.L. Gage Co. Cat # 4a Pocket Bridge Cam Gauge GAL-4a, Inch & Metric - Instruction Manual
