Name: G.A.L. Gage Co. Cat # 8 Fillet Weld Gauge 7-Piece Sets GAL-8
Brand: G.A.L. Gage Co.
SKU: 1280

G.A.L. Gage Co. Cat # 8 Fillet Weld Gauge 7-Piece Sets GAL-8

See More G.A.L. Gage Co. Weld Measuring

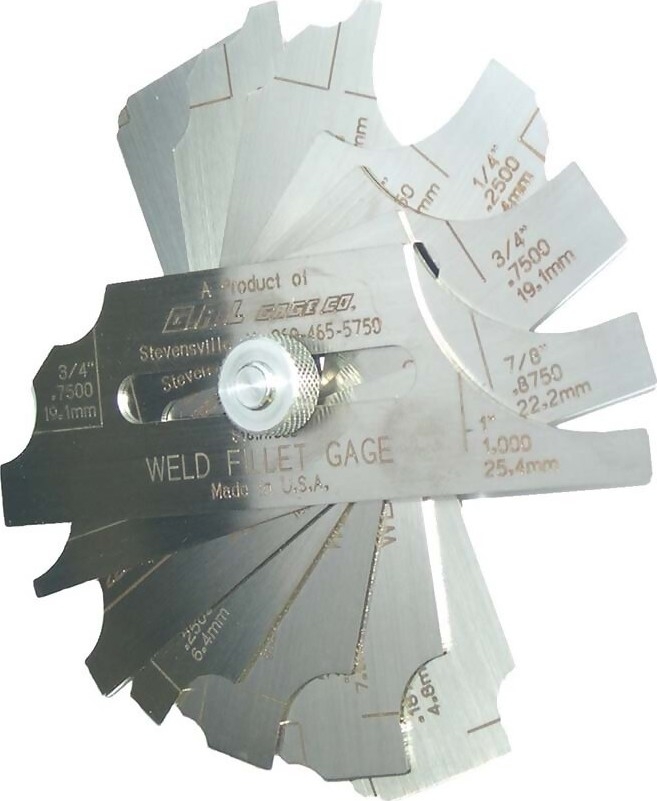

7 Piece Fillet Weld Set

For Inspection of concave or convex fillet welds.

The G.A.L. Fillet Weld Gage allows fast, accurate measurement of eleven (11) fillet welds sizes: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, and 11”, and their metric equivalentes, to determinate weld sizes, either concave or convex.

Each gage blade is made 1/4” X 4” cold rolled stainless steel to resist rust na bending.

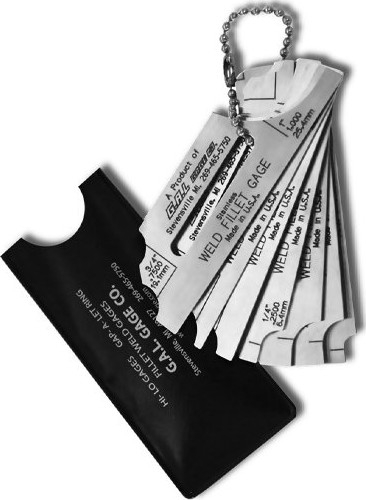

Blades are deburred to remove rough adges. All sizes and numerals are laser engraved. The set of seven blades comes in a handy 2” x 4 1/2” pocket case weighing Only 4 oz.

Feaures line

Stainless Steel
Can Be Certified

Use For line

Checking Fillet Leg Size
Checking Fillet Throat Size

line
Comparison Chart
line

Cat # 8	Inch Scale: Markings on ONE Side
Cat # 8b	Metric Scale: Markings on ONE Side
Cat # 8a	Inch Scale: Markings on BOTH Sides
Cat # 8c	Metric Scale: Markings on BOTH Sides

line
Easy to Use
line

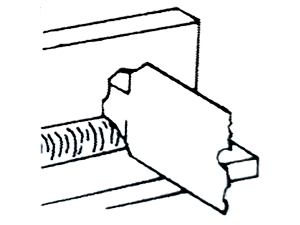

G.A.L. Fillet Weld Gage is easy to use

Gage blade must be flush to the base material with the tip touching the vertica member. Use the singles arc corners for measuring CONVEX weld. Use the single arc corners for determining if the welds are concave (under size). If They are, more filer material is required to build weld throat to the size Where the tip between the double arcs touch

line

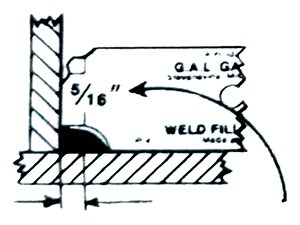

Convex Weld

Place single arc edge flush to base material so blade tip touches vertical member. If tip touches the weld as it touches vertical member, the weld is the size indicated.

line

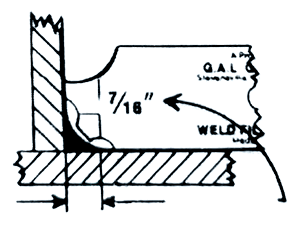

Concave Weld

Place double arc edge flush to the base material so tip touches vertical member. If the tip between the double arc touches the center of the weld, the weld is the profile desired and is the size indicated.
