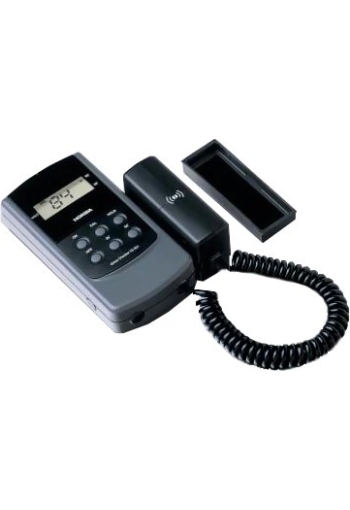

Horiba IG-331 # 3014035117 Gloss Meter / Checker, Old # 375152
High efficiency measurement
Measuring angles 20° and 60°
Flexible use with its remote probe
Range 0-100
Cost Effective
Horiba IG-331 # 3014035117 Gloss Meter / Checker, Old # 375152 is designed for greater ease of operation, maintain clean surfaces and improve quality control inspection in various industrial applications.
The Horiba IG-331 features high efficiency and flexibility utilizing a separate detector and light source, offers the ability to switch between 60 degree measuring angle for standard gloss measurement, and 20 degree measuring angle for high-gloss surfaces with gloss values over 70.
The flexible connection between the probe and display unit ensures greater work efficiency.
Just one touch of the calibration key starts the automatic sequential zero-span calibration.
Features
- High efficiency measurement
- Measuring angles 20° and 60°
- Flexible use with its remote probe
Specifications

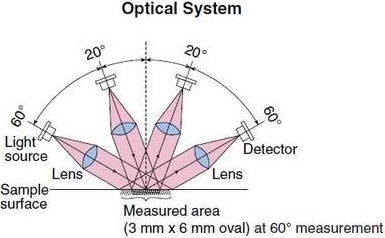

Optical system | 60° measurement: Incident angle 60°, Reception angle 60°.
20° measurement: Incident angle 20°, Reception angle 20°. |
Measuring area | 60° measurement 3*6mm oval
20° measurement 3*4mm oval |
Light source | LED (wavelength: 890 nm) |
Detector | SPD (silicone photodiode) |
Measuring range | 0-100 |
Display range | 0-199 (resolution: 1) |
Repeatability | ±5% F.S. ±1 digit |
Power Source | A3 dry cell battery *4 (Not rechargeable) |
Battery life | 50 hours or more |
Operating temperature | 10 - 40°C |
Dimensions | Main body: 140 (W) * 75 (H) * 34 (D) mm
5.5 (W) * 3.0 (H) * 1.3 (D) in
Optical sensor: 88 (W) * 30 (H) * 45 (D) mm
3.5 (W) * 1.2 (H) * 1.8 (D) in |
Weight | Approx. 350g (with batteries) |
Additional functions | - Automatic calibration
- Automatic power cut-off
- Display hold
- Overrange display
- Battery life display
|
