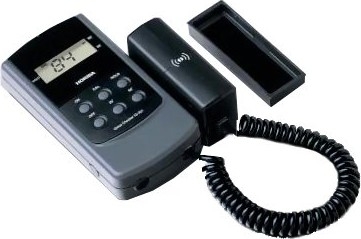

    Horiba IG-331 # 3014035117 Gloss Meter / Checker, Old # 375152
    High efficiency measurement
    Measuring angles 20° and 60°
    Flexible use with its remote probe
    Range 0-100
    Cost Effective

    Horiba IG-331 # 3014035117 Gloss Meter / Checker, Old # 375152 is designed for greater ease of operation, maintain clean surfaces and improve quality control inspection in various industrial applications.

    The Horiba IG-331 features high efficiency and flexibility utilizing a separate detector and light source, offers the ability to switch between 60 degree measuring angle for standard gloss measurement, and 20 degree measuring angle for high-gloss surfaces with gloss values over 70.

    The flexible connection between the probe and display unit ensures greater work efficiency.

    Just one touch of the calibration key starts the automatic sequential zero-span calibration.


    line
    Features
    line

    • High efficiency measurement
    • Measuring angles 20° and 60°
    • Flexible use with its remote probe


    line
    Specifications
    line

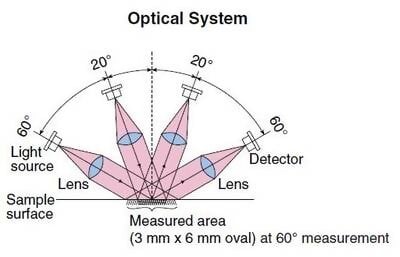

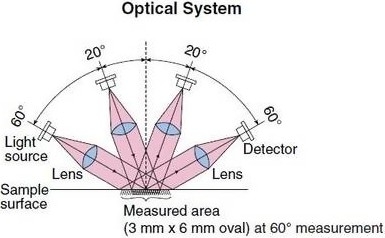

    Optical system

    60° measurement: Incident angle 60°, Reception angle 60°.
    20° measurement: Incident angle 20°, Reception angle 20°.

    Measuring area

    60° measurement 3*6mm oval
    20° measurement 3*4mm oval

    Light source

    LED (wavelength: 890 nm)

    Detector

    SPD (silicone photodiode)

    Measuring range

    0-100

    Display range

    0-199 (resolution: 1)

    Repeatability

    ±5% F.S. ±1 digit

    Power Source

    A3 dry cell battery *4 (Not rechargeable)

    Battery life

    50 hours or more

    Operating temperature

    10 - 40°C

    Dimensions

    Main body: 140 (W) * 75 (H) * 34 (D) mm
    5.5 (W) * 3.0 (H) * 1.3 (D) in
    Optical sensor: 88 (W) * 30 (H) * 45 (D) mm
    3.5 (W) * 1.2 (H) * 1.8 (D) in

    Weight

    Approx. 350g (with batteries)

    Additional functions

    • Automatic calibration
    • Automatic power cut-off
    • Display hold
    • Overrange display
    • Battery life display


    line
    Downloads
    line

    Horiba IG-331 Gloss Meter No. 3014035117 - Instruction Manual
