Checkline MK-21 Hand Held Vibration Meter

---

Portable Vibration Meter for Machinery Diagnostics

---

Vibration monitoring in accordance with ISO 10816

---

Portable, Compact and Light Weight

---

The Checkline MK-21 hand held vibration meter accurately measures machine vibration, as recommended by ISO 10816, to alert the user to know when to provide cost-effective machinery maintenance to avoid costly down time, now and in the future.

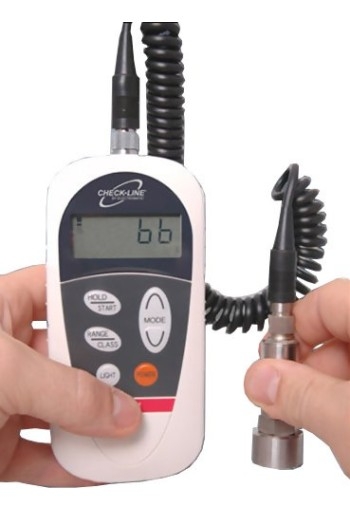

In addition to standard approaches, the MK-21 uniquely checks machinery condition, in the Diagnostic mode, without reference to a chart … as easy as reading a, bb, ccc and dddd on the display - where a = Quite Good (Zone A), bb = Good (Zone B), ccc = Poor (Zone C) and dddd = Bad (Zone D).

Condition Zones A,B,C & D cover those vibration velocity ranges noted in ISO 10816

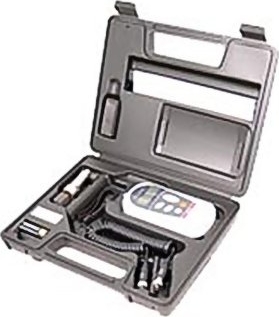

Kit Contents

---

Features

---

• Five (5) measuring modes: Diagnostic, Displacement, Velocity, Acceleration Peak and Acceleration, as required for a wide choice of vibration analysis techniques
• Compact, ergonomic, lightweight design with simple button keypad and menu make for easy operation
• Selectable backlit display for dark, hard-to-read locations
• Four (4) Target Machinery Classes, per ISO 10816, in Diagnostic mode: Classes I, II, III and IV, for machines from less that 15 KW to Large Prime Movers, such as turbo generators and gas turbines with outputs greater than 10 MW
• Powerful magnet-fitted sensor assures dependable mounting on vibrating steel surfaces

Specifications

---

Sensor	Piezoelectric vibration pickup
Probe Operating temperature	0 ~ 80° Celsius
Probe Dimensions	Ø 24 x 14mm (Total heigth 115mm)
Measuring modes	Acceleration (ACC): RMS value Acceleration (ACCP): PEAK value Velocity (VEL): RMS value Displacement (DISP): P-P value
Linearity	<+ />2% F.S. of each range
Resolution	1/200 F.S. of each range
Display	4½ - digit LCD display
Display Size	18.4 x 49.8 mm
Power	One AA alkaline battery
Automatic power off	- No use for more than 10 minutes - Low battery
Battery life	> 8 hours continuous use (light off)
Operating temperature	0° ~ 50° Celsius (<90% RH, Non condensing)
Storage temperature	-10° ~ 60° Celsius (<90% RH, Non condensing)
Dimensions	69 W x 30 D x 154 H mm
Weight	Approx. 140g (battery included)
Warranty	Gauge: 1 year Probe: 90 days

Measuring and Frequency Ranges

---

Downloads

---

Checkline MK-21 Hand Held Vibration Meter - Data Sheet
