AC & Only AC/DC Magnetizing Coils

---

3000 Amp Turns (AC Output) and 4000 Amp Turns (DC Output)

---

Light Weight & Comfortable to Hold

---

Built-in Switch (Optional Footswitch available)

---

Used with Wet/Dry Method Media for Magnetization applications

---

Normally used to find transverse cracks in Tubes/Pipes, Shafts/Bars, or Small Parts

---

Used with Wet/Dry Method Media for Magnetization applications.
Normally used to find transverse cracks in Tubes/Pipes, Shafts/Bars, or Small Parts.

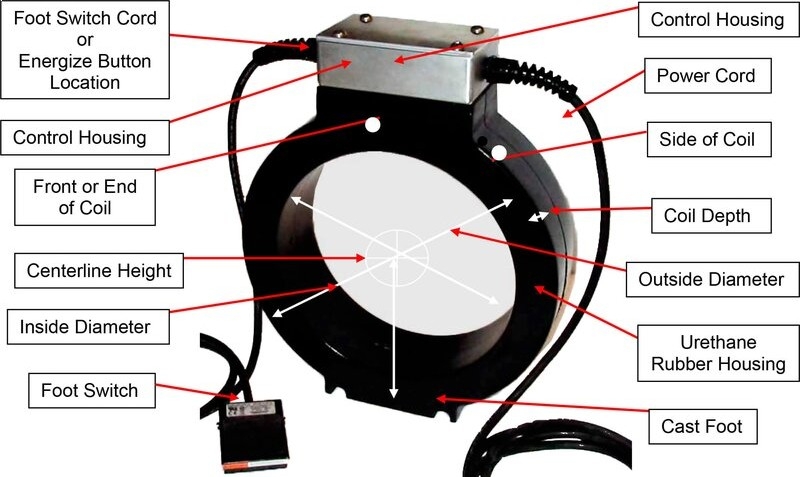

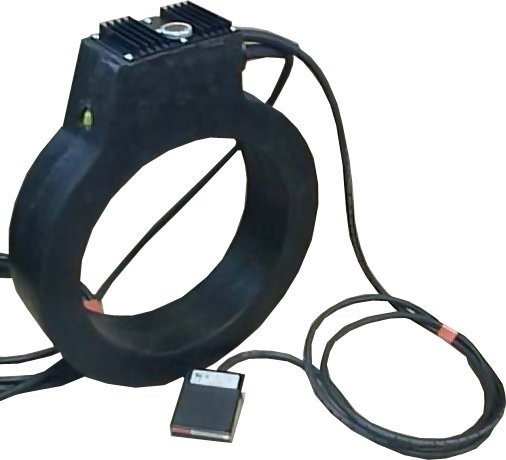

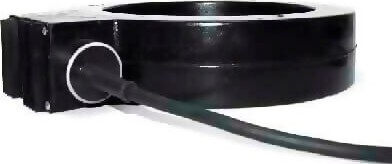

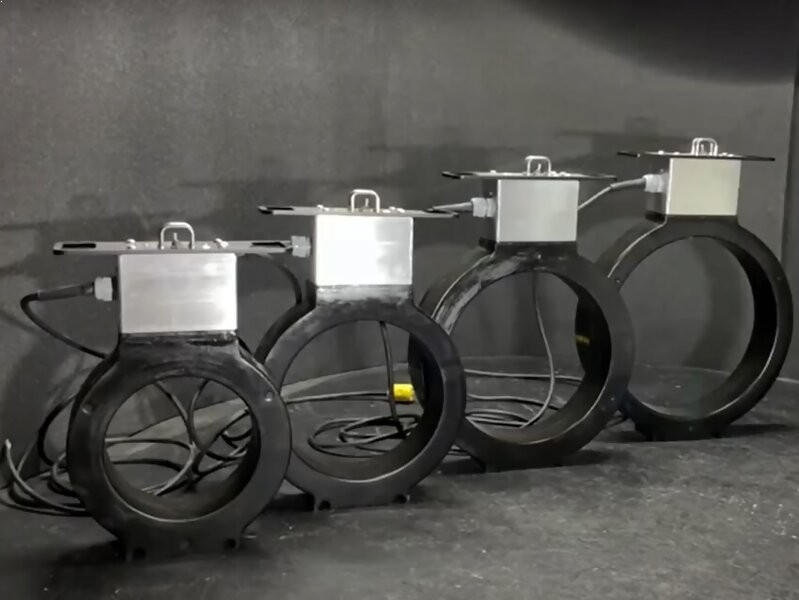

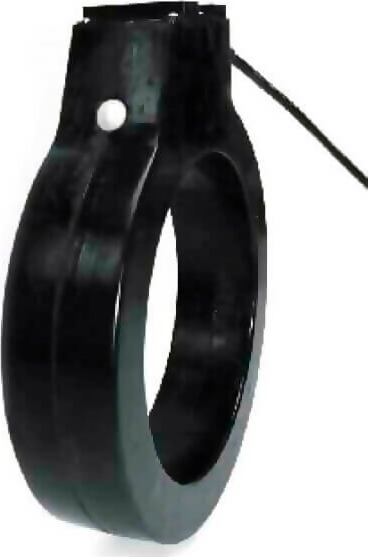

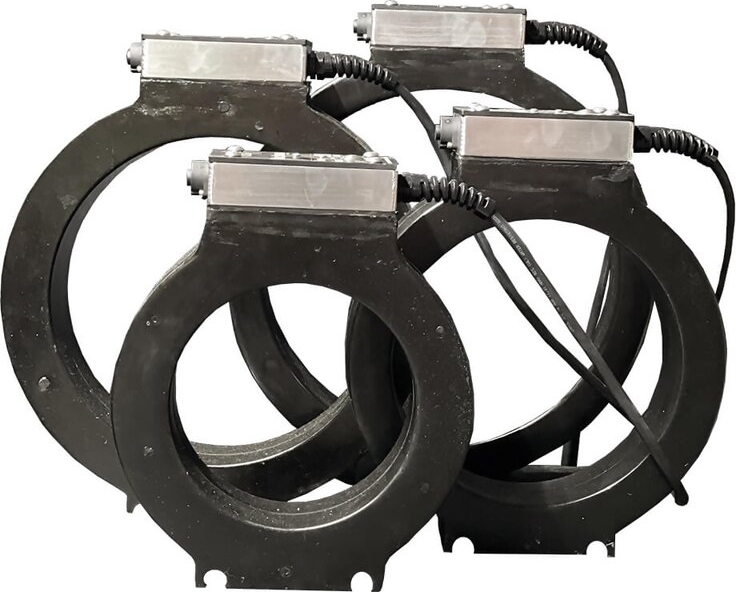

Western Instruments WA-Series AC Magnetizing Coils were designed for Oil Country Tubular Goods Inspectors, with particular emphasis on Collars and other Bottom Hole Assemblies. However, these Coils 'pack enough punch' to make them suitable for numerous other industrial inspection applications. WA-Series Portable Magnetic Particle Testing Coils utilize our advanced Mechanical, Electrical, and Solid State Electronics designs and allows Western to offer them in both AC and AC/DC models. These advanced designs, which are similar to our W-Series Yokes, ensure the best quality product for excellent operator mobility and equipment longevity. The aluminum wire coil is precision wound using the most advanced techniques, to ensure the most homogeneous magnetic field possible. The wire core is cast in a hard wear resistant Urethane Rubber housing, which reduces impact to the core, for years of maintenance free operation. WA-Series coils are designed to be comfortable to hold, but are available with optional Cast Feet.

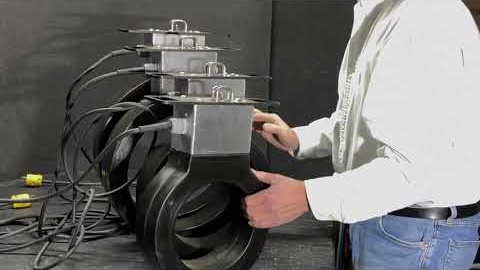

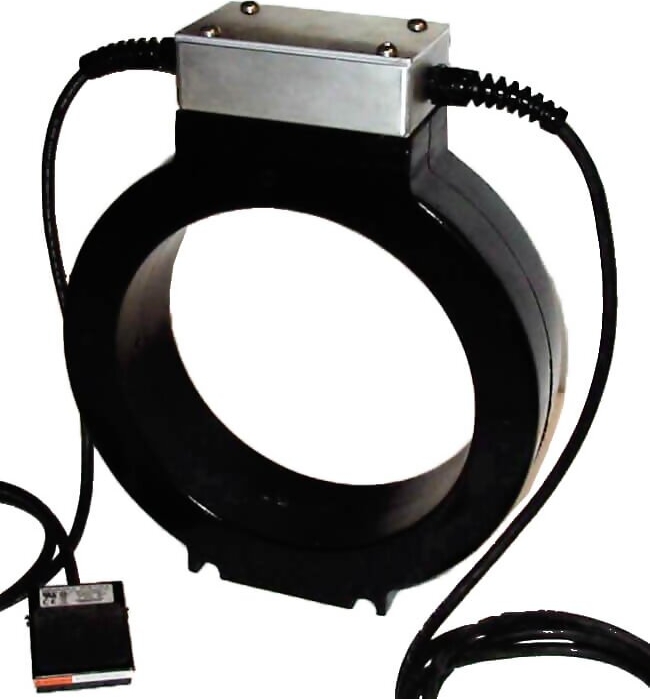

The Solid State Controls are completely contained in the Cast Urethane Rubber Housing located on the top of the coil. The activation switch is of sealed construction, has a grounded cover, and in turn is sealed with a Urethane Rubber membrane. The double seal switch system is designed for; operator safety; comfort; is very rugged; and is easily activated by the operators Thumb. All of the electrical and electronic components are mounted on the reverse side of the Control Housing Cover, making maintenance and service very convenient. While intended to be hand held, WA-Series Coils are available with options such as; a Foot Switch; Carrying Handle, and Cast Feet for Table Top use and to prevent the coil from rolling. Like all W-Series products, the Power Cord Strain Relief system is without question the most durable in the industry.

The WM-5C is our Cable Type Permanent Magnet Yoke. The Coated Cable allows a great deal of flexibility to easily permit maximum contact area between the Non-Ferrous contact surface and the workpiece. The Hand Grip is Ergonomically designed for operator comfort, with provisions for easy removal off the workpiece.

Kit Contents

Features

Applications:

Specifications

*options: Cast Feet, Handle, Foot Switch, Cast Feet/Handles



* 'K' - Added to any coil designation designates 220-240V AC 50Hz
