Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils

See More Magnetic Particle Inspection MPI Coils

Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils

See More Magnetic Particle Inspection MPI Coils
Price:
$6,408.00 - $8,608.00
warrenty

Product Description

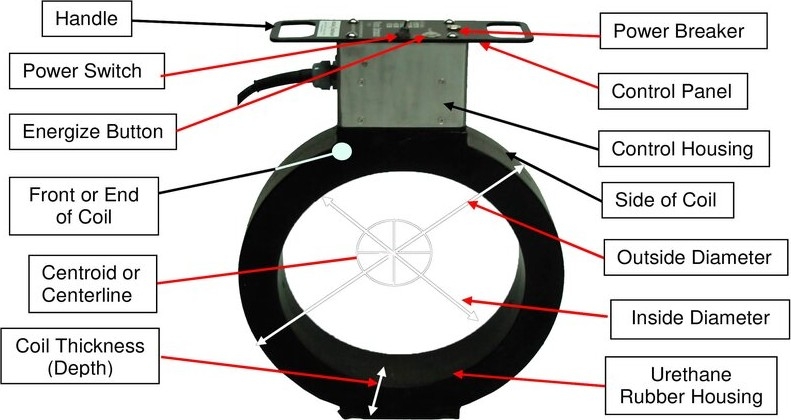

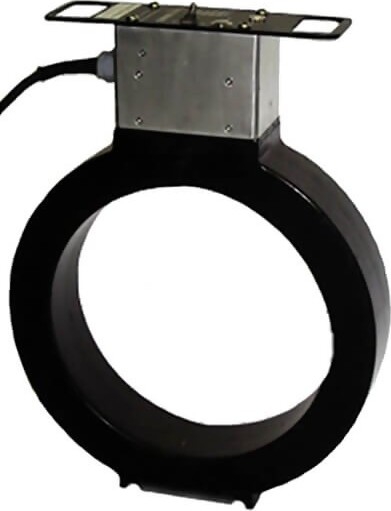

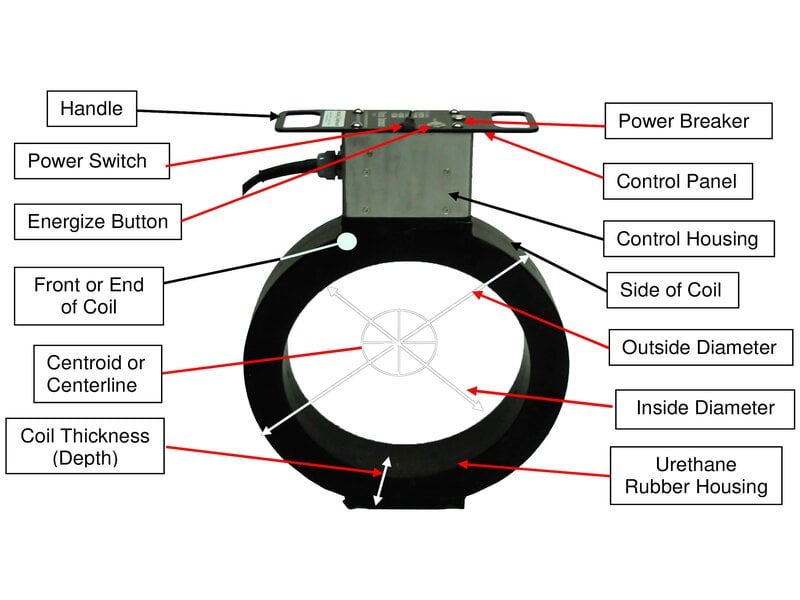

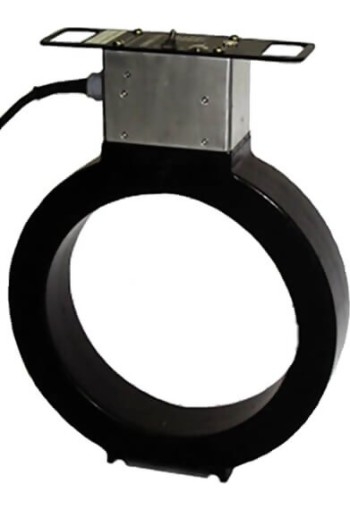

Western Instruments WS-Series Magnetizing Coil
Powerful yet extremely light MPI Coils meet many applicable specifications for MPI
Shown here in 8”, 10”, 12” and 14” sizes

The Western Instruments WS-Series Magnetizing Coil is list of Portable MPI Equipment. These powerful yet extremely light MPI Coils meet many applicable specifications for MPI. The WS-Series use Western Instruments' innovative Capacitive Discharge Power Supply. The unique WS power supply provides the necessary energy pulse to provide an output of 1,200 Amp Turns per inch of ID and more specifically greater than 400 Gauss in the Center of the Coil. These outputs are common to all four models: WS-8, WS-10, WS-12 and WS-14, while all remain under 20 pounds (9kg).

In the Oil well Drilling Business WS-Coils are commonly called Drilco (Drill Pipe Coils), where Drill Pipe is rarely Demagnetized. It is typically the Tools on the Bottom End of the Drilling String that are demagnetized, and where our WD-Series Coils earned their reputation. Drill Pipe Coils pulse about once per second and induce a very high Residual Magnetic Field, into the workpiece.


line
Specifications
line

Diameter Range23/8" to 133/8" End Areas
Meets Output requirements ofDS1 and NS-2
Centerline field> 400 Gauss
CD pulse rate1 Pulse per second
Power110VAC / 60Hz @ 15 amps, 230VAC / 50Hz @ 15 amps
Depth35/8" (92mm)

line

ModelWeight Lbs ( mm )Size In (kg)Amperes & VoltageAmp Turns / Gauss
WS-814 Pounds (7kg)8" (201 mm)15 Amps 115V/60Hz17,000 DC (@1Hz) 1,125 Gauss
WS-8K14 Pounds (7kg)8" (201 mm)15 Amps 230V 50Hz (Inrush Current)17,000 DC (@1Hz) 1,125 Gauss
WS-1016 Pounds (8kg)10" (254 mm)15 Amps 115V/60Hz 16.000 DC (@1Hz) 800 Gauss
WS-10K16 Pounds (8kg)10" (254 mm)15 Amps 230V 50Hz (Inrush Current)16.000 DC (@1Hz) 800 Gauss
WS-1218 Pounds (8.5kg)12" (305 mm)15 Amps 115V/60Hz15,500 DC (@1Hz) 620 Gauss
WS-12K18 Pounds (8.5kg)12" (305 mm)15 Amps 230V 50Hz (Inrush Current)15,500 DC (@1Hz) 620 Gauss
WS-1419 Pounds (8.6kg)14" (355 mm)15 Amps 115V/60Hz15,000 DC (@1Hz) 580 Gauss
WS-14K19 Pounds (8.6kg)14" (355 mm)15 Amps 230V 50Hz (Inrush Current)15,000 DC (@1Hz) 580 Gauss

line

ModelDescriptionComments
WS-8
WS-8K
Pulsed DC Drill Pipe CoilPulsed Drill Pipe Coil, with fixed DC output. Using our specialized Capacitive Discharge Power Supply, that pulses once per second. 50% Duty Cycle
WS-10
WS-10K
Pulsed DC Drill Pipe CoilStrong DC Field like the old Drilco Pulse Coils. WS Coils are activated intermitently with our durable Endrgize Button
WS-12
WS-12K
Pulsed DC Drill Pipe CoilStrong DC Field like the old Drilco Pulse Coils. WS Coils are activated intermitently with our durable Endrgize Button
WS-14
WS-14K
Pulsed DC Drill Pipe CoilPowerful DC Pulse, once per second from a our CD (Capacitive Discharge) Power Supply. Results in a strong Residual Field. Meets requirments for an Active Field Inspection


line
Downloads
line

Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils - Data Sheet
Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils - Instruction Manual
Western Instruments WS-Series Pulsed Drill Pipe Magnetizing MPI Coils - Summary

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Models Price
Discontinued
Discontinued
$7,266.00
$7,706.00
$6,408.00
$6,848.00
$8,168.00
$8,608.00
Recommended Accessories PRICE
$432.00
$738.00
$738.00
$360.00
$540.00
$324.00
$324.00
$324.00
$324.00
$432.00
$540.00
$5,505.00
