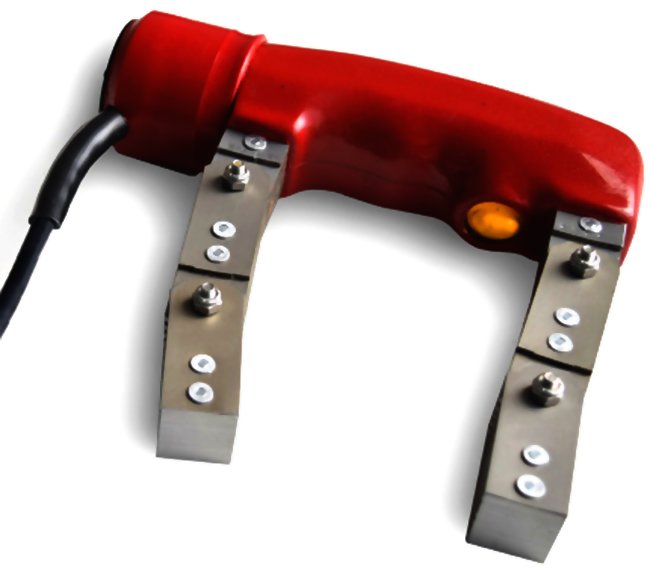

Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke with 7 Amp-Hour Battery

See More Magnetic Yokes

Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke with 7 Amp-Hour Battery

See More Magnetic Yokes
Price:
$930.00
    warrenty

    Product Description
    Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke(Variable DC)
    Compact, Lightweight, Comfortable ergonomic grip, Grounded solid state switch, Sealed Switch cover, Rugged strain relief
    Optional UL/CSA Approval
    AC or DC Inspection Fields

    The Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke boasts the lowest power draw of any battery operated yoke. Battery packs are supplied in 3, 7 or 12 Amp Hour configurations with either 1 or 2 connectors, with the latter allowing a 12-Volt UV Lamp to operate off the same battery. Our standard 1.5 Amp battery charger is the strongest in the industry.

    The Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke uses Western Instruments' WC-Series Platform, which is utilized in all the WC-Series models. This Platform design is similar to our standard W-Series Platform, but far more compact and with the Urethane Rubber housing providing superior durability in rugged environments. This construction versatility is possible through our advanced Mechanical, Electrical, and Solid State Electronics designs. These designs permit the WC-Series to use our standard low profile sealed membrane activation switch, continuing our philosophy for operator safety, as the switch has a grounding provision and conducts less than 1/2 watt of power. All W-Series Yokes have more height between the operator's hand and the work piece, which means faster inspections due to a larger view of the target area. All these advancements permit all our 12 Volt Pulsed DC Yokes to have a 100% duty cycle!

    The ergonomically designed grip, combined with WC-Series light weight, reduces operator fatigue and strain which permits longer and more thorough inspections. The compact design allows the WC-8 to fit into tight spaces, better than our full size W-Series models. Combined with our Universal Articulating Pole Pieces, the WC-8 can be fit to almost any configuration of work piece. Like all W-Series products, the Power Cord Strain Relief system is the most durable in the industry, but on the WC-8 the Strain Relief can be directed up or down, permitting even better access to confined spaces, or simply just for operator preference.

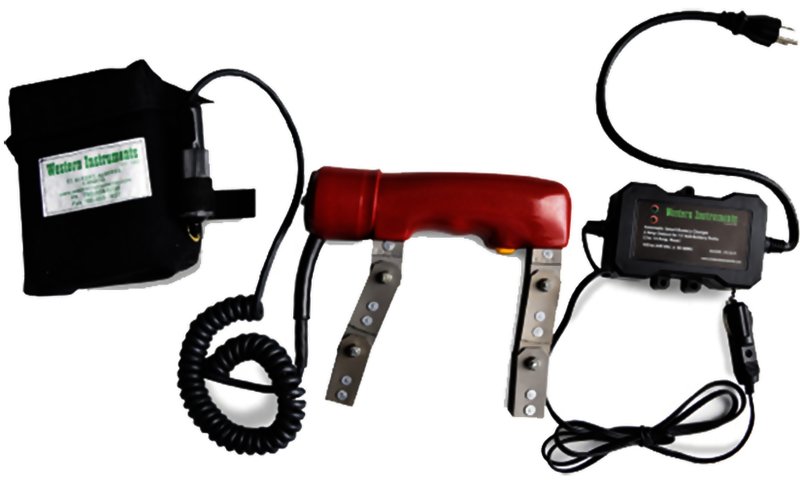

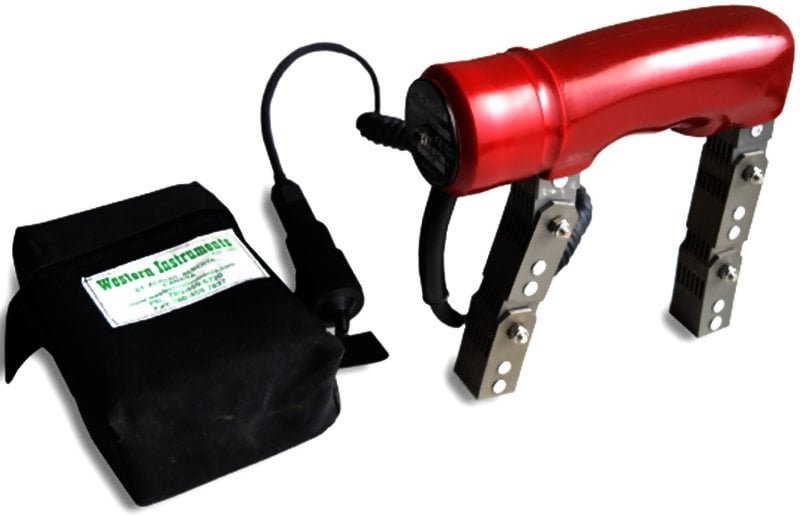

    The WC-8 has a special module that converts 12 Volts DC into a pulsed signal, that allows the unit to lift over 50 pounds to comply with DC specifications, but the pulsed DC field induces particle mobility similar to an AC Yoke. The WC-8 draws less than 1/2 Amp, so a 3.0 Amp/Hour Battery Pack will last you a full day (based on Western Instruments' Battery Duration Tests). Western Instruments offers Battery Packs in 3.0, 7.0, and 12 Amp hour ratings (nominal), and all three can be charged with our High Capacity Smart Charger (1.5 Amps). We also offer our exclusive Dual Output Battery Pack, for use with our WC and W-8 Yokes, so a 12 Volt UV Lamp can be used for totally portable Wet Fluorescent Inspection.


    line
    Features
    line

    • Compact
    • Light Weight
    • Comfortable Ergonomic Grip
    • Grounded Solid State Switch
    • Sealed Switch Cover
    • Rugged Strain Relief
    • Combination of 3 Batteries
    • Optional UL/CSA Approval


    line
    Specifications
    line

    Voltage12 Volts DC
    Chargers (for Gel Cells)115 or 230 Volts
    Current0.5 Amps
    Frequency50-60Hz
    Cord Length2' Coil, extends to 6'
    Lift50 Pounds minimum (23kg)
    Capacity0 to 11” (280mm)
    FinishRed Urethane Rubber
    Weight6.5 Pounds (3Kg)


    line
    Applications
    line

    • Automotive
    • Aerospace
    • Weld Inspection
    • Pressure Equipment
    • Piping
    • Fabrication
    • Manufacturing
    • Maintenance


    line
    Related Products
    line

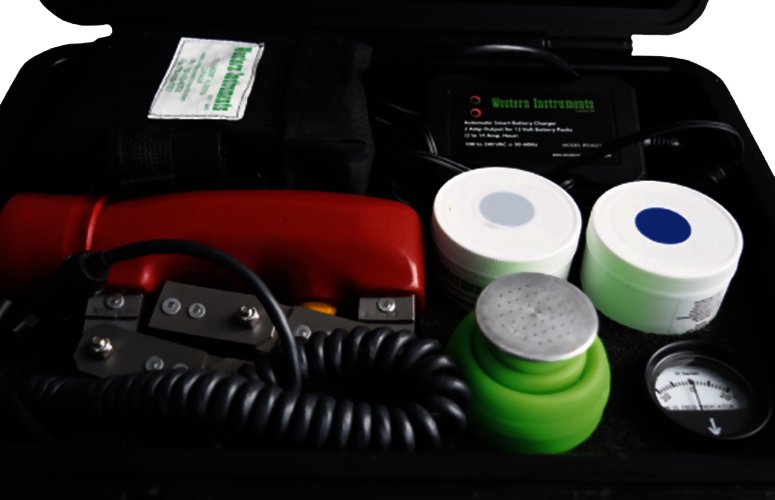

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line


    line
    Downloads
    line

    Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke - Data Sheet
    Western Instruments WC-8 Compact 12 Volt Pulsed DC Magnetic Yoke - Instruction Manual
