Mark-10 Series E Ergonomics Force Gauges Kit EKE
Measure real time and peak push and pull forces
Click-LockTM accessory mounting technology
USB data output
Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. The Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.
Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

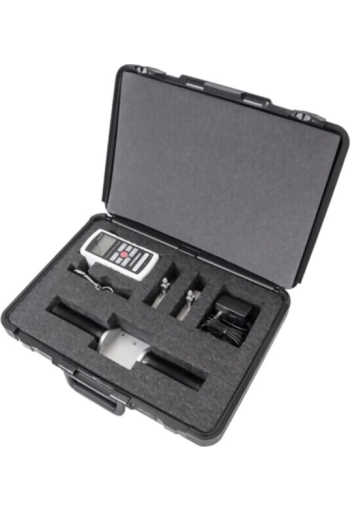

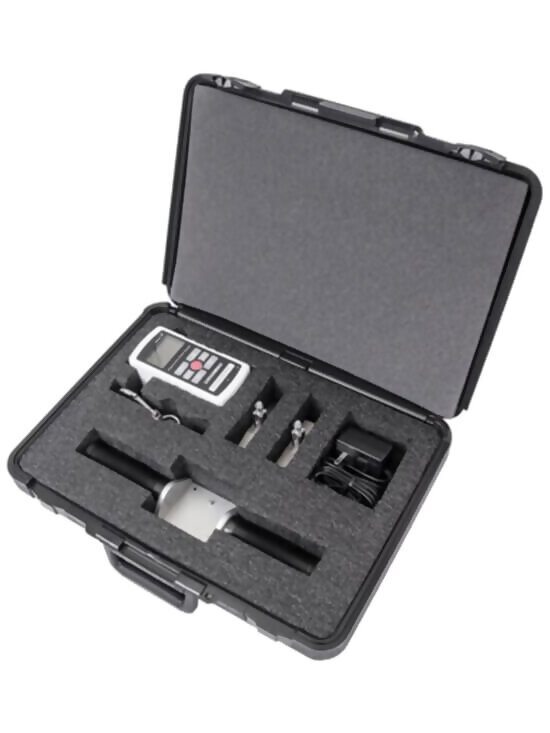

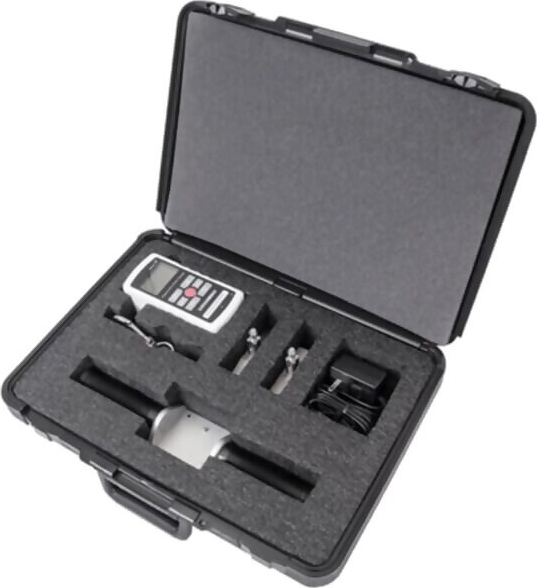

Kit Options

- Mark-10 ME Digital Force Gage
- E1003 Rectangular Padded attach.
- E1004 Curved Padded attach
- E1006 Hook
- E1009 Double Handle Grip
- E1000 Small Carrying Case
|  |

Features

- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Click-Lock™ accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
- Statistical calculations for saved data points

Specifications

Accuracy | ±0.2% of Full Scale |
Sampling rate | 7,000 Hz |
Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
Measurement units | lbF, ozF, gF, kgF, N, kN (depending on model) |
USB Output | Configurable up to 115,200 baud |
Safe overload | 200% of full scale (display shows "OVER" at 110% and above) |
Weight | 1.7 lb (0.8 kg) |
Included items | Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data |
Warranty | 3 years |
Ranges (Capacity / Resolution)

Model | lbF | ozF | kgF | gF | N | kN |
ME-100 | 100 0.002 | 1600 0.5 | 50 0.01 | 50000 10 | 500 0.1 | - |
ME-200 | 200 0.05 | 3200 1 | 100 0.02 | - | 1000 0.2 | 1 0.0002 |
ME-500 | 500 0.1 | 8000 2 | 250 0.2 | - | 2500 0.5 | 2.5 0.0005 |

Ordering Guide

EKE-100-1 | Advanced ergonomics kit, 100 lbF / 500 N |
EKE-200-1 | Advanced ergonomics kit, 200 lbF / 1,000 N |
EKE-500-1 | Advanced ergonomics kit, 500 lbF / 2,500 N |
EKE-100-2 | Professional ergonomics kit, 100 lbF / 500 N |
EKE-200-2 | Professional ergonomics kit, 200 lbF / 1,000 N |
EKE-500-2 | Professional ergonomics kit, 500 lbF / 2,500 N |

Accessories

| Model | Description | Advanced Kit1 | Professional Kit1 |
 | ME-100 ME-200 ME-500 | ME-100 ME-200 ME-500 |  |  |
 | E1002 | Padded attach., square | |  |
 | E1003 | Padded attach., rectangular |  |  |
 | E1004 | Padded attach., curved |  |  |
 | E1005 | Padded attach., circular | |  |
 | E1006 | Hook |  |  |
 | E1007 | Chain / hook assembly | |  |
 | E1008 | Single handle grip | |  |
 | E1009 | Double handle grip |  |  |
 | E1010 | Pistol grip | |  |
 | E1011 | Grip adapter | | |
 | E1012 | Looped cable2 | | |
 | E1013 | Myometer kit3 | | |
 | E1000 | Carrying case, small |  | |
 | E1001 | Carrying case, large | |  |
- Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
- Does not fit into carrying cases
- Does not fit into carrying cases. Requires E1006 hook
