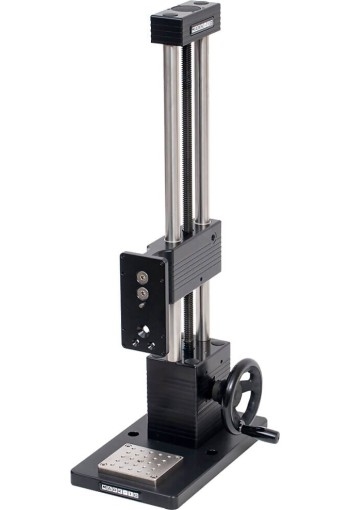

Mark-10 ES30 Hand Wheel Test Stand, 200 Lb Capacity

---

Force Gauge sold Separately

---

200lb Capacity

---

13" Maximum Travel

---

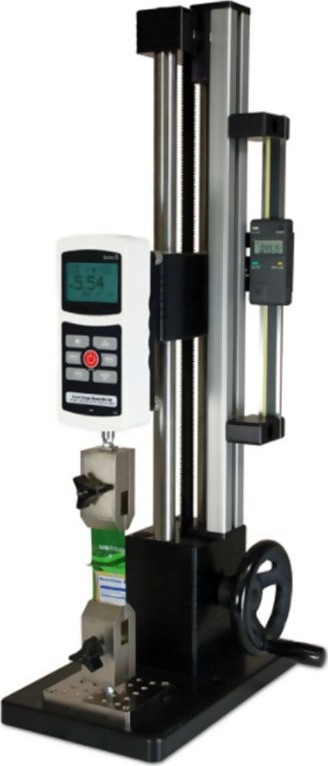

The Mark-10 ES30 Hand Wheel Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the Mark-10 ES30 with a MG series force gauge and grips to create a complete testing solution.

Upgradeable to a motorized test stand by installing a motor drive kit.

*Force Gauge and Grips Not Included

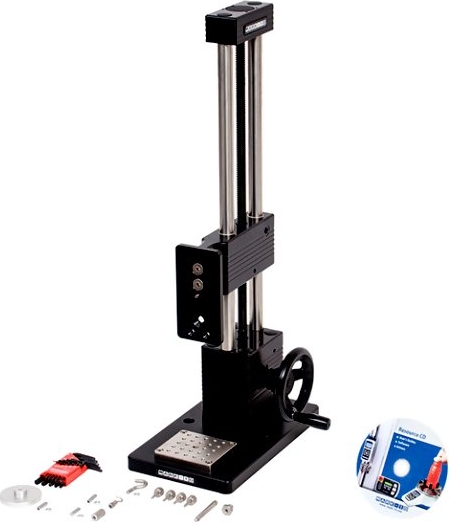

Kit Contents

---

Features

---

• Compatible with all Mark-10 force gauges, accessories and grips
• Mounting holes for bench mounting Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting

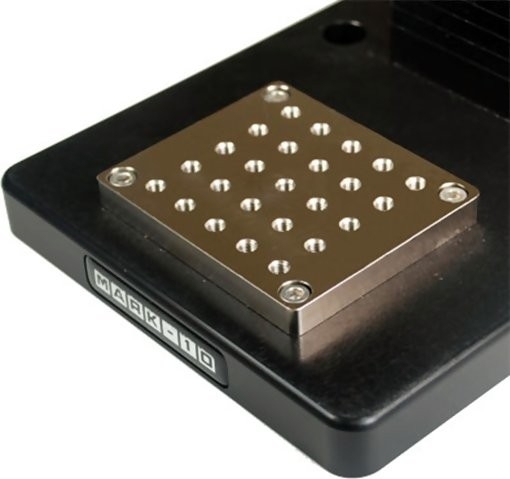

• Removable base plate with 25 #10-32 threaded holes for fixture mounting
• Competitor force gauge mounting kits available

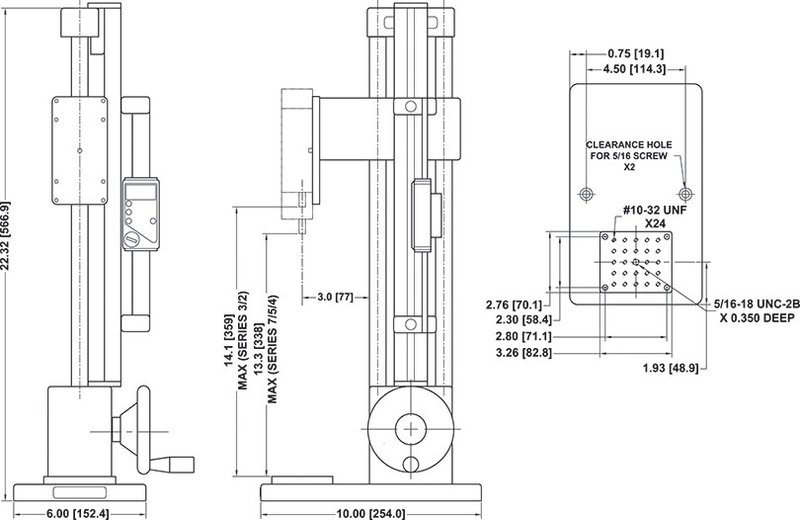

Specifications

---

Maximum force	200 lbF [1 kN]
Maximum travel	13" [330 mm]
Travel rate	0.05" [1.27 mm] / hand wheel revolution

Downloads

---

Mark-10 ES30 Hand Wheel Test Stand - Data Sheet

Mark-10 ES30 Hand Wheel Test Stand - Instruction Manual
