This product has been replaced by the Mark-10 F755 - F1505
Mark-10 ESM750 / ESM1500 High Capacity Motorized Test Stand
Force Gauge sold Separately
PC control, stop / cycle at force, travel, or limit switch
32" of travel

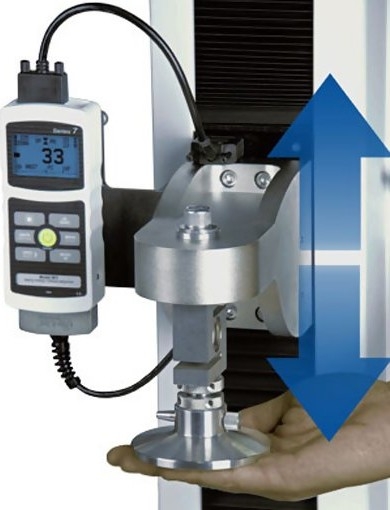

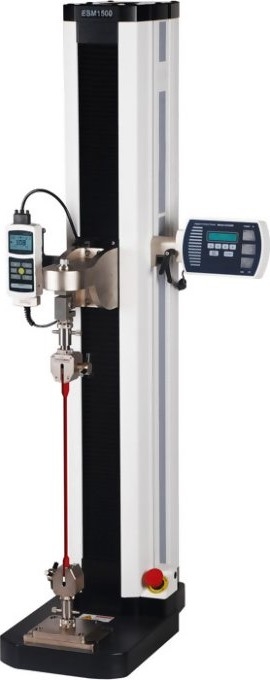

The Mark-10 ESM750 High Capacity Motorized Test Stand is a highly configurable single-column force tester for tension and compression measurement applications up to 750 lb (3.4 kN). The Mark-10 ESM1500 High Capacity Motorized Test Stand is a highly configurable single-column force tester for tension and compression measurement applications up to 1,500 lbF (6.7 kN). Suitable for laboratory and production environments, the Mark-10 ESM750 / ESM1500 may be used with an indicator-load cell combination or with a force gauge. Sample setup and fine positioning are a breeze with available FollowMeTM force-based positioning - using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead at a dynamically variable rate of speed.

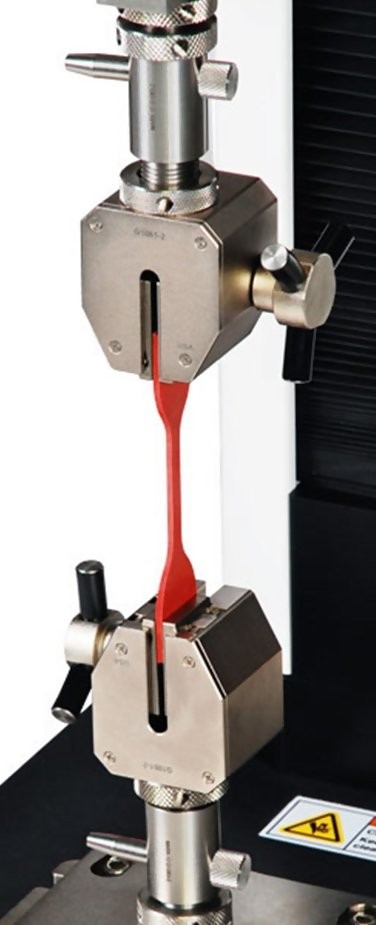

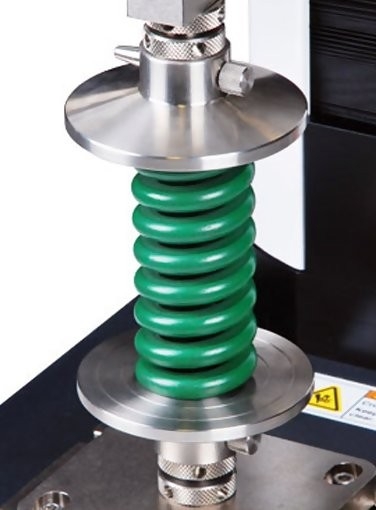

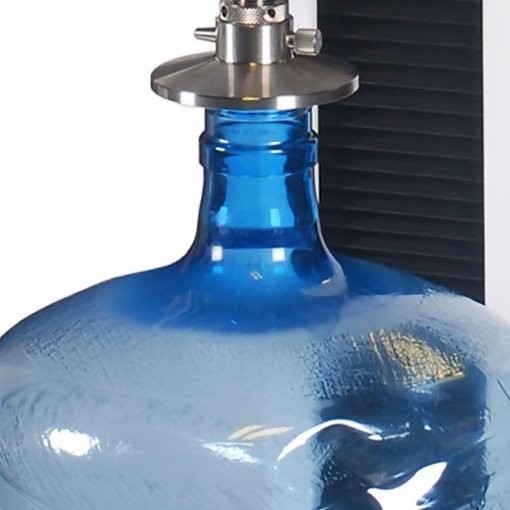

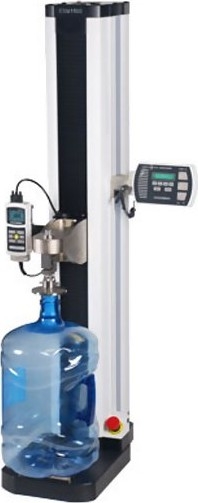

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password.
Controller functions are offered individually through a unique “build-your-own” configuration platform. Order any combination of functions to customize the test stand to specific requirements. Functions not ordered originally can be activated in the field.

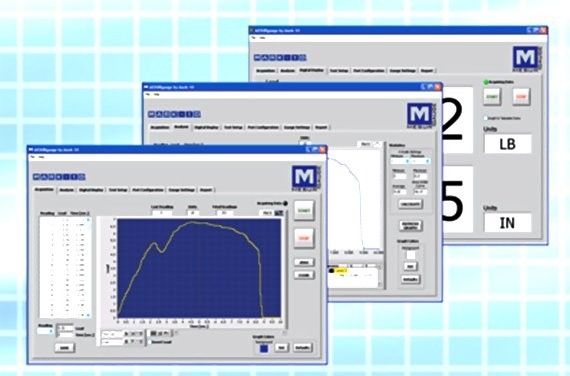

Force and travel data can be output to a PC for graphing and analysis using MESURTMgauge software. Or, fully control the stand by a PC through a custom-written program in any language supporting ASCII communications.

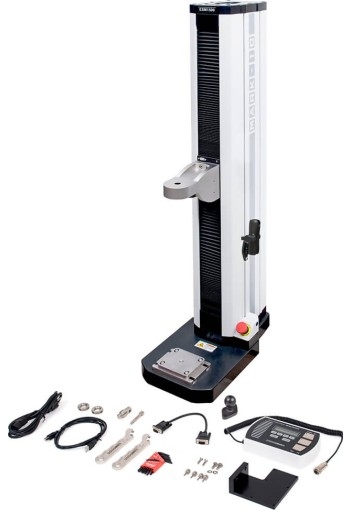

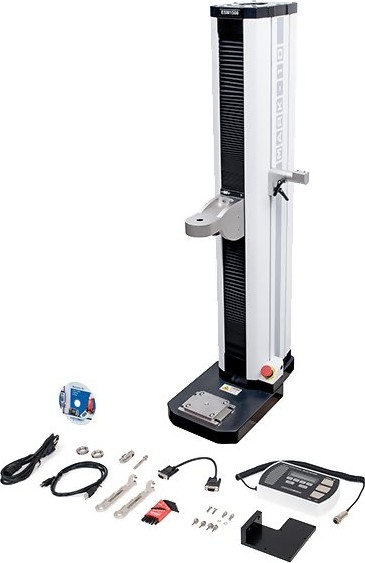

Kit Contents
Features
- Broad force range and clearance dimensions

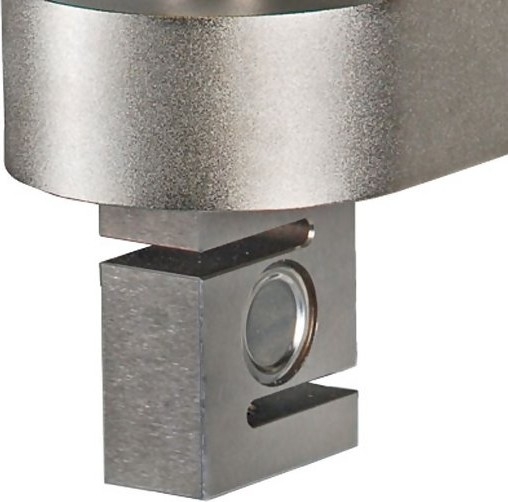

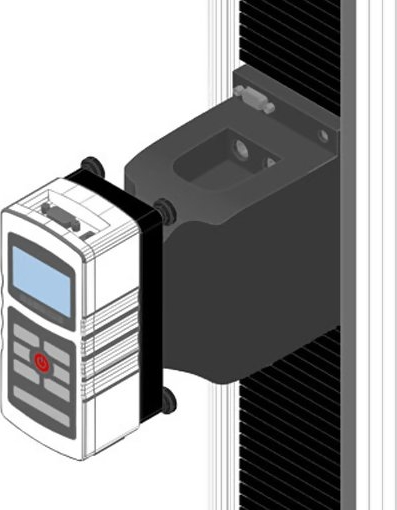

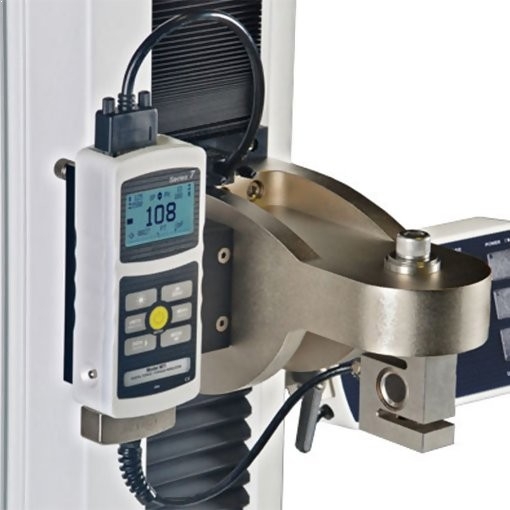

- Compatible with load cells and force gauges
- USB output of force vs. time or force vs. distance
- Adjustable, removable control panel with intuitive menu navigation
- Unique modular function platform – select functions as required for the application
- Password protection of test parameters
- Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
- Compact footprint, suitable for crowded workbenches

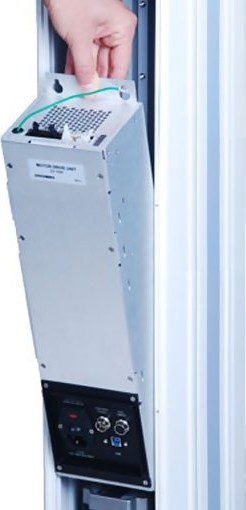

- Most electronics are housed in an integrated removeable enclosure, easily accessed for service

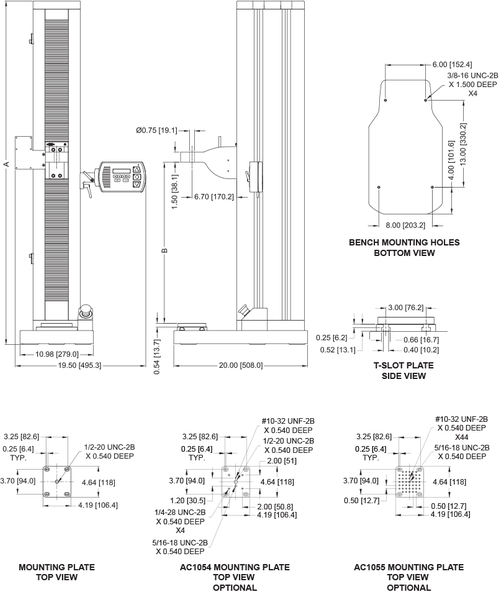

Specifications
| ESM 1500 | ESM 1500S | ESM 750 | ESM 750S |
| Load capacity | 1,500 lbF [6.7 kN] at |
