Name: Mark-10 FS06-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN
Brand: Mark-10
SKU: 2061
Price: 1350.00 USD
Availability: InStock

Mark-10 FS06-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN

See More Force Sensors

Measure tension and compression force

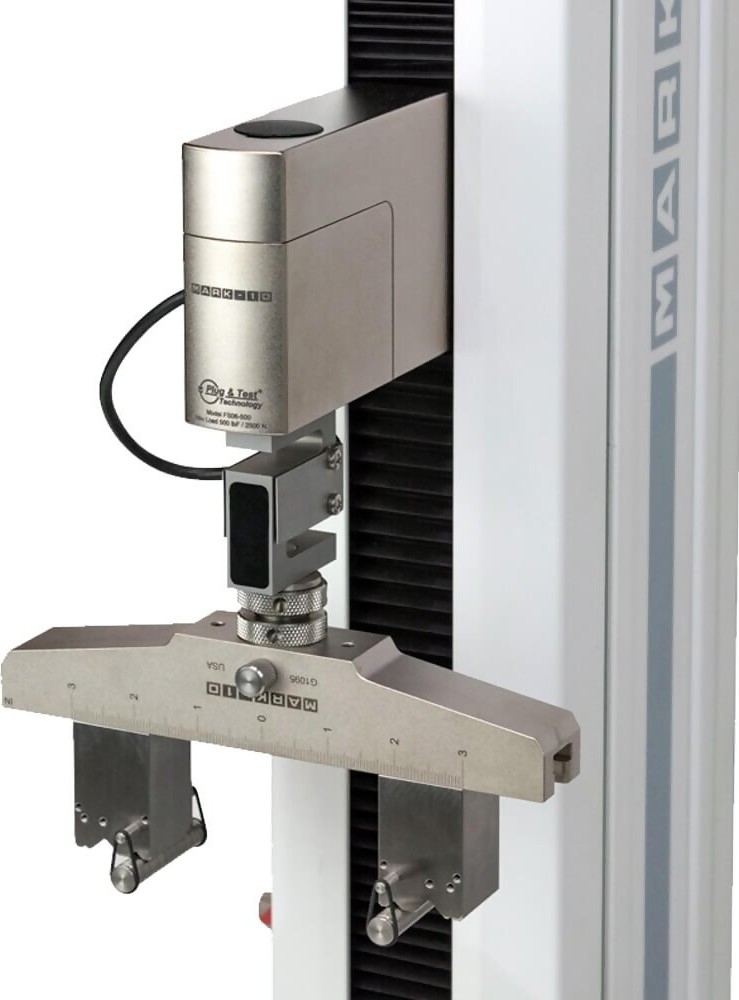

Suitable for larger and heavier grips and fixtures

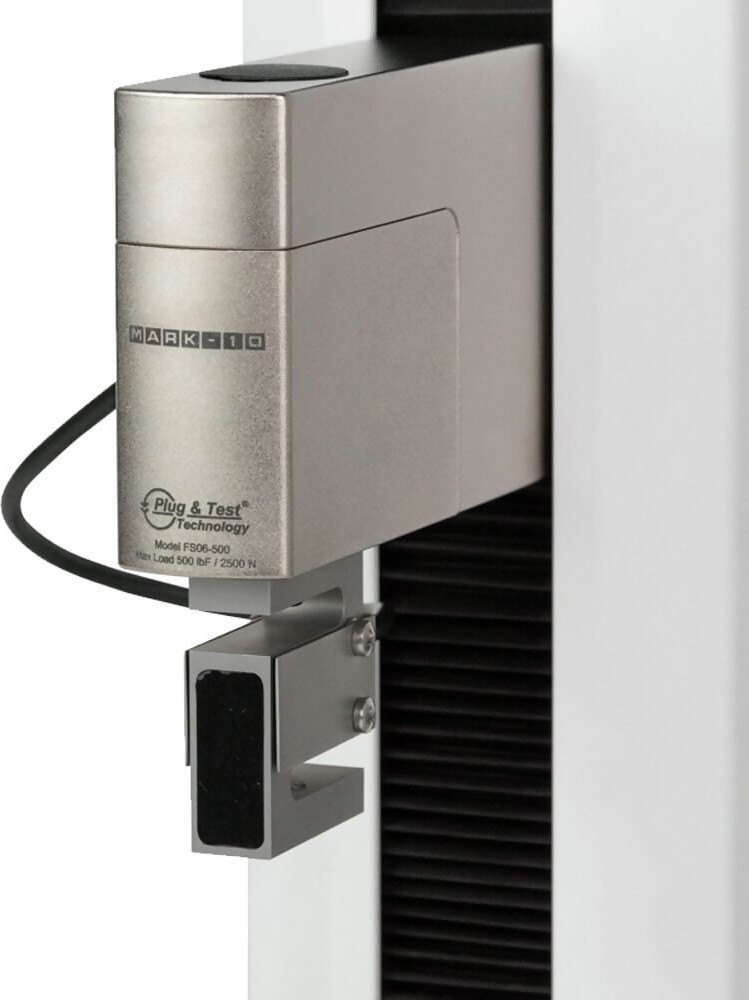

Compatible with Model F105, F305, F505, and F505H test frames

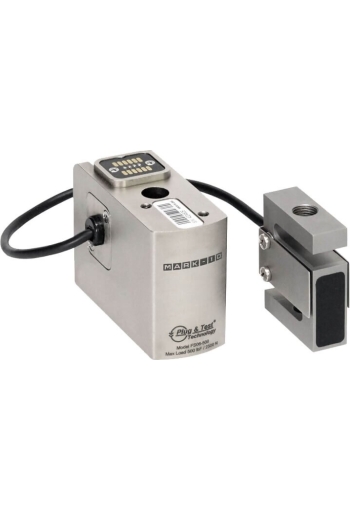

The Mark-10 Series FS06 Tension and Compression Force Sensors is designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter AC1083 required).

Ranges are available from 50 to 500 lbF [250 N to 2.5 kN].

Compatible with Models F105, F305, F505, and F505H.

Features

Measure tension and compression force
Suitable for larger and heavier grips and fixtures
Compatible with Model F105, F305, F505, and F505H test frames
Member of the Plug & Test® family of interchangeable sensors and indicators (optional adapter AC1083 required)
NIST-traceable certificate of calibration with data is included
Warranty: 3 years

Specifications

	FS06-50	FS06-300
Weight	FS06-200: 1.7 lb [0.8 kg]	FS06-500: 1.9 lb [0.9 kg]
Accuracy	± 0.15% of full scale + indicator or test frame
Safe Overload	150% of full scale
HS code	9024900000
ECCN	EAR99

Force Ranges - capacity/resolution

Model	lbF	ozF	gF	kgF	N	kN
FS06-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
FS06-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-
FS06-200	200 x 0.1	3200 x 2	-	100 x 0.05	1000 x 0.5	1 x 0.0005
FS06-300	300 x 0.2	4800 x 5	-	150 x 0.1	1500 x 1	1.5 x 0.001
FS06-500	500 x 0.2	8000 x 5	-	250 x 0.1	2500 x 1	2.5 x 0.001
