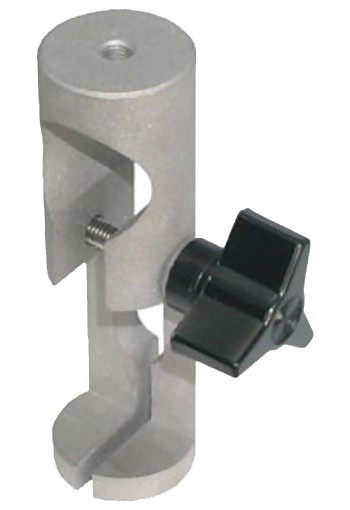

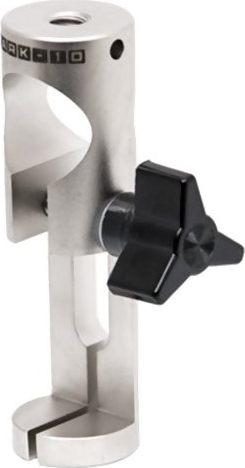

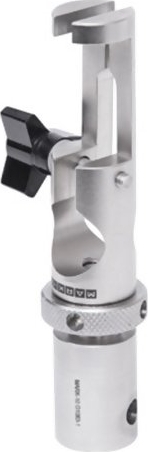

Mark10 G1001 Wire Terminal Grip

---

Pull testing of wire and tube terminals, crimps, and other slender samples

---

200 lb capacity

---

Mark-10 G1001: 0.125" max. dia. / AWG 50 - AWG 8 (approximate)
Mark-10 G1001-1: 0.125" - 0.250" dia. / AWG 8 - AWG 2 (approximate)
Mark-10 G1001-2: 0.250" - 0.375" dia. / AWG 2 - AWG 0/2 (approximate)

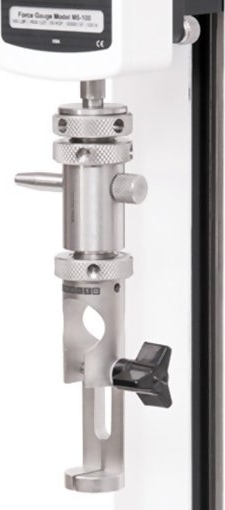

The Mark-10 G1001 wire terminal grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Two wire diameter capacities are available, 0.125", 0.25" and 0.375". Use these grips with the Mark-10 G1002 dual roller grip, and choice of test stands and force gauges to create complete terminal and crimp testing systems

Specifications

---

Capacity	200 lb
Thread	#10-32 UNF
Dimensions	3.43"L x 1"D
Weight	.29 lb
Sample Size	G1001: 0.125" max. dia. / 0 - AWG 8 G1001-1: 0.125" - 0.250" dia. / AWG 8 - 2 G1001-2: 0.250" - 0.375" dia. / AWG 2 - 0/2

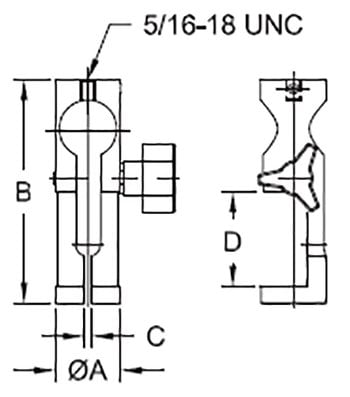

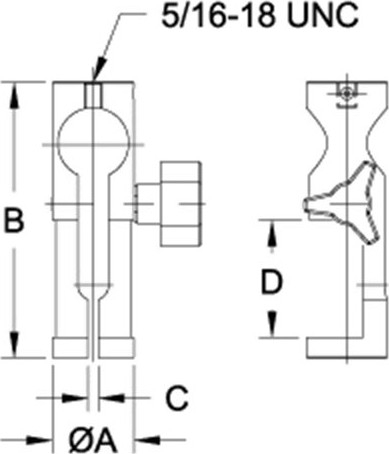

Dimensions

---

Model No.	G1001	G1001-1	G1001-2
Capacity IbF (N)	200 (1000)	200 (1000)	200 (1000)
Weight Ib	0.29 (0.13)	0.29 (0.13)	0.29 (0.13)
ø A	1.00 (25.4)	1.00 (25.4)	1.00 (25.4)
B	3.40 (86.4)	3.40 (86.4)	3.40 (86.4)
C	0 - 0.125 (0 - 3.1)	0.125 - 0.25 (3.1 - 6.3)	0.25 - 0.375 (6.3 - 9.5)
D	1.45 (36.8)	1.45 (36.8)	1.45 (36.8)

Includes 5/16 - 18M to # 10 - 32F adapter and # 10 - 32 M/M stud with jam nuts
