Mark-10 G1002 Dual Roller Cam Grip
Pull testing of wires, tubes, and other slender samples
200 lb capacity
G1002 Capacity - 200 lb
Maximum Sample Diameter - 0.25" / 6.3 mm
This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Use this grip with a G1001 wire terminal grip, force gauge, and test stand to create a complete terminal and crimp testing system.
Specifications
| Capacity | 200 lb |
| Sample size | 0.25" x 0.50" |
| Thread | #10-32 UNF |
| Dimensions | 1.25"L x 1.75"W x 2.25"H |
| Weight | 0.19 lb |

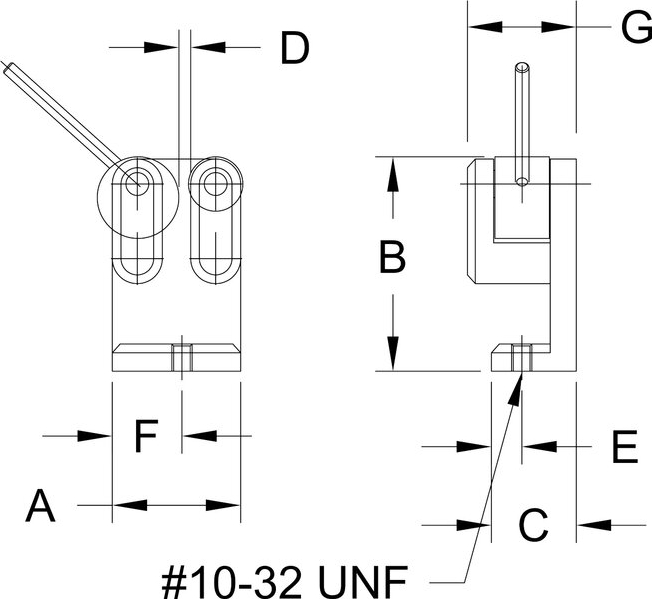

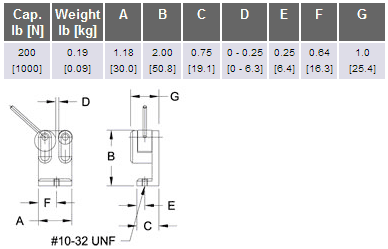

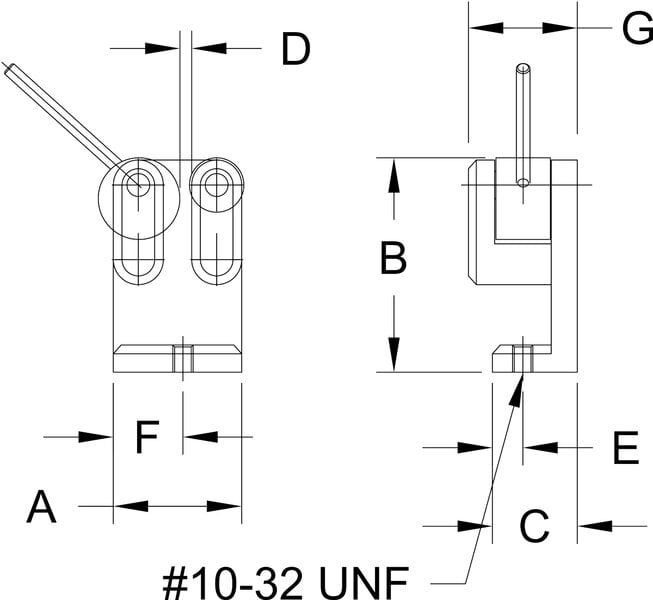

Dimensions
| Model | G1002 | G1002-1 | |
| A | 1.18
[30.0] | 1.30
[33.0] |  |
| B | 2.00
[50.8] | 2.00
[50.8] |
| C | 0.75
[19.1] | 0.75
[19.1] |
| D | 0 – 0.22
[0 – 5.6] | 0.10 – 0.34
[2.5 – 8.6] |
| E | 0.25
[6.4] | 0.25
[6.4] |
| F | 0.65
[16.5] | 0.65
[16.5] |
| G | 1.0
[25.4] | 1.0
[25.4] |
