Mark-10 G1045 90° Peel Tester

See More Force Gauge Attachments

This product has been replaced by the Mark 10 G1109

THE MARK-10 G1045 HAS BEEN REPLACED BY THE MARK-10 G1109 90° PEEL TEST FIXTURE

Mark-10 G1045 90° Peel Tester

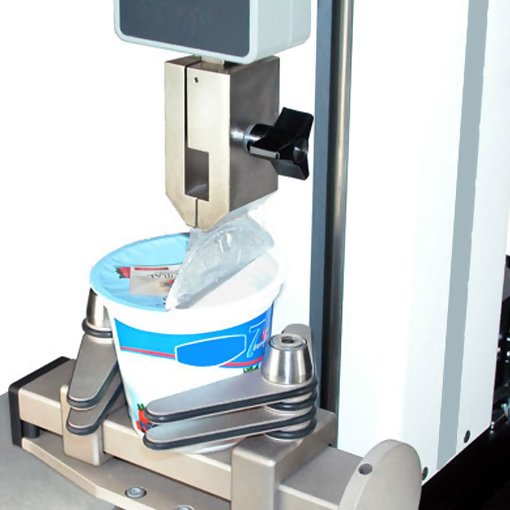

Typical applications include the testing of adhesives, films and packaging, such as foil seals found on yogurt containers, juice containers and others

Maintains a 90° angle between the table and the direction of the pull

Maximum table travel: 8.2 in (210 mm)

The Mark-10 G1045 90° Peel Tester is designed for applications in the packaging and food and beverage industries. Typical applications include the testing of adhesives, films, and packaging, such as foil seals found on yogurt containers, juice containers, and others.

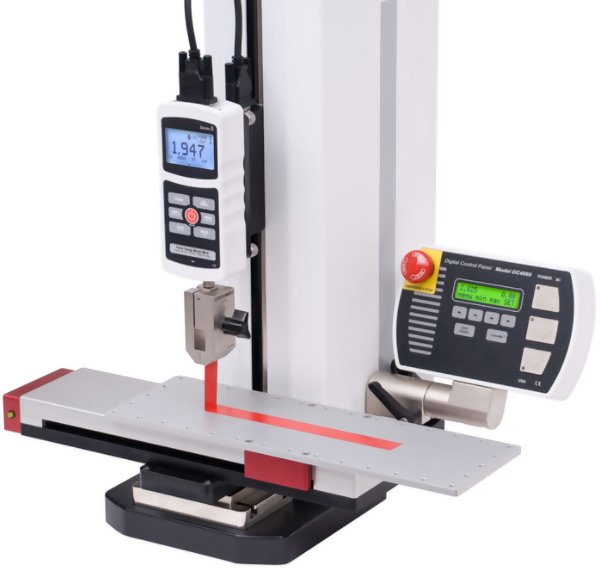

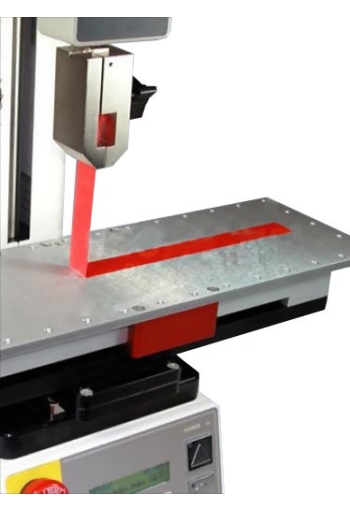

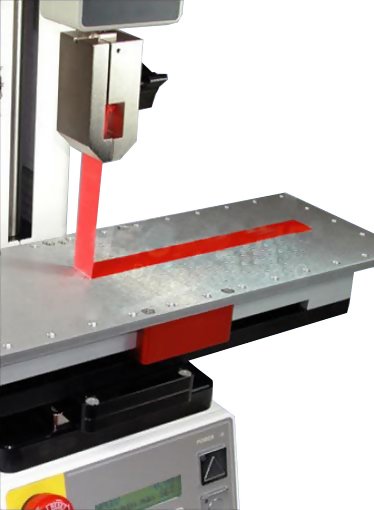

A large flat working table with mounting holes accommodates a range of sample sizes. As the test stand crosshead moves vertically, the table moves horizontally, maintaining a 90° angle between the table and the direction of pull. The table is connected to the crosshead via a cable.

A unique limit switch option is available for motorized test stands to prevent cable breakage due to excessive movement.

line
Features
line

Maintains 90° angle between the table and the direction of pull
Rugged design
Compatible with the following test stands: ESM, ESM300, ES30. Recommended for use with a motorized test stand
Large working area with threaded mounting holes
Maximum table travel: 8.2 in (210 mm)

line
Optional Equipment
line

Limit switch
Prevents cable breakage due to excessive movement. When the table reaches its limit of travel, test stand movement stops

line

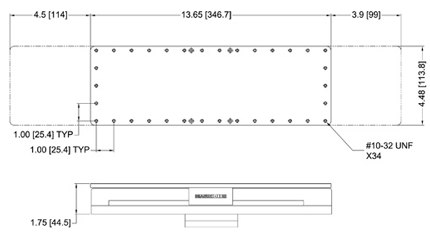

Dimensions
line

line
