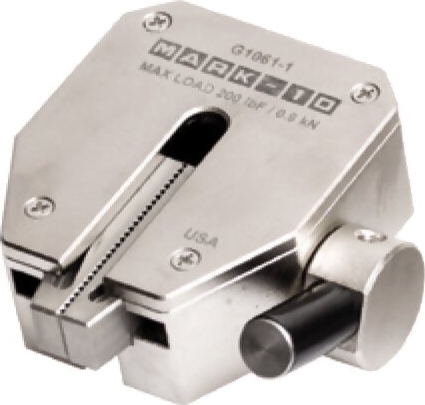

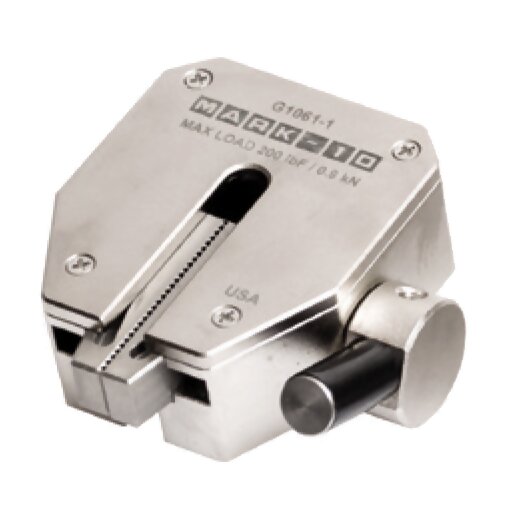

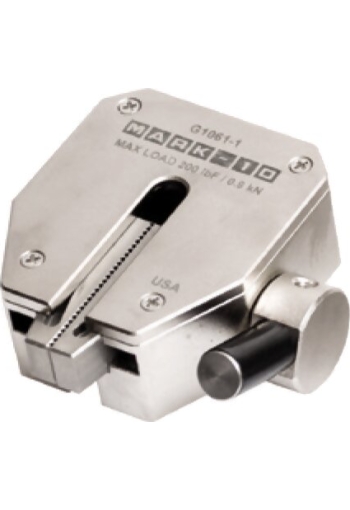

Mark-10 G1061 Self-Tightening Wedge Grip
General tensile testing
up to 2000 lb capacity (3 sizes available)
Self-Tightening Wedge Grip
3 Sizes Available
G1061-1 Width: 0.375in. (9.5mm) Capacity: 200 lbs
G1061 Width: 0.75in (19mm) Capacity: 1200 lbs
G1061-2 Width: 1" (25.4mm) Capacity: 2000 lbs
The Mark-10 G1061 Heavy Duty Self-Tightening Wedge Grips are ideal for a range of tensile testing requirements. The serrated steel jaws are easily opened with an ergonomic spring loaded knob and rack and pinion type mechanism. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics.
Features
- 3 capacities available
- Unique jam-free design
- Fully enclosed
- Hardened, serrated steel jaws
- Thru slot for samples of unlimited width
- Ergonomic handle
- Weight: G1061-1 (0.5 lb/0.23 kg), G1061 (0.80 lb/0.36 kg), G1061-2 (0.9 lb/0.41 kg)
- Jaw material / hardness: 416 SS / 43 RC
- Supplied with a 5/16-18M to #10-32F thread adapter
