Mark-10 High Capacity Clevis Grip

---

Designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications.

---

2000 lb capacity

---

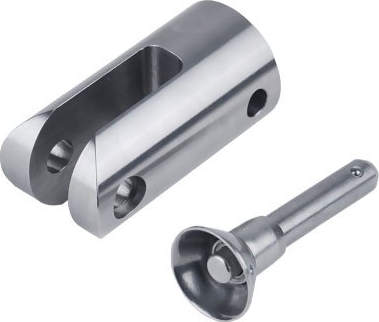

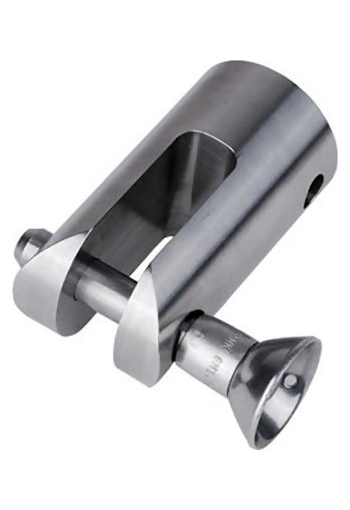

The Mark-10 G1090 High Capacity Clevis Grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Includes an integrated eye end.

Pin Diameter: 0.375

Photo Gallery

---

Force Ranges

---

Model	Capacity	Weight
G1090	2,000 lbF (9 kN)	0.78 lb (0.35 kg)

Dimensions

---

A	2.77" (70.4 mm)	E	2.32" (58.9 mm)
B	1.80" (45.7 mm)	F	0.87" (22.1 mm)
C	0.55" (14.0 mm)	⌀G	0.63" (15.9 mm)
⌀D	1.40" (35.6 mm)	⌀H	0.32" (8.0 mm)
