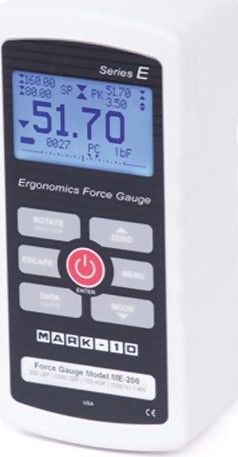

Mark-10 Series E Ergonomics Digital Force Gauge with USB Output for ergonomics analysis
3 Capacities up to 500 lbF
7,000 Hz peak sampling rate
±0.2% accuracy

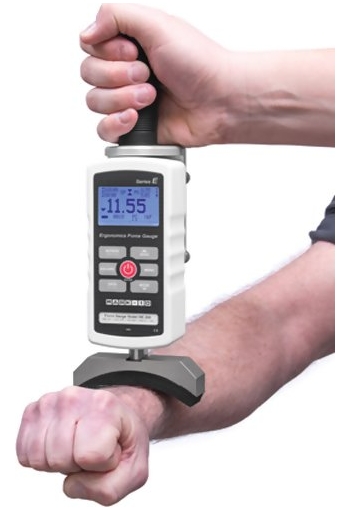

Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.
Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
Features

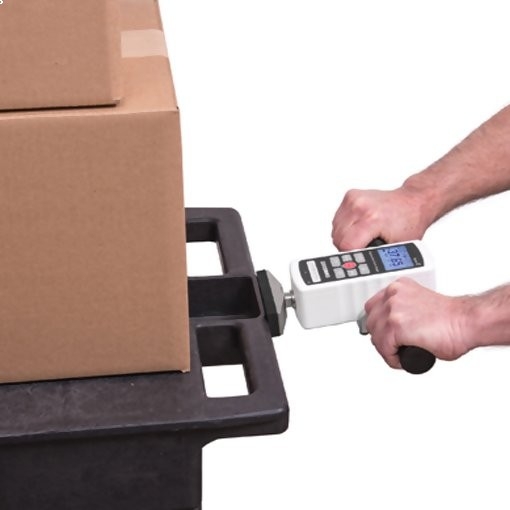

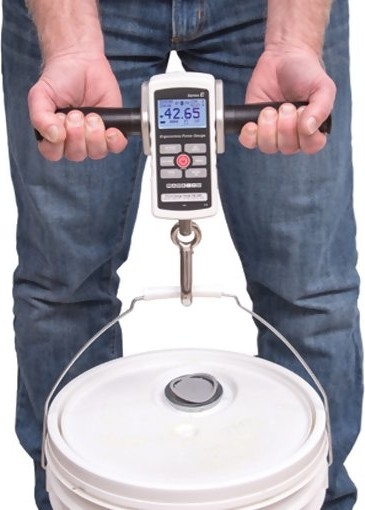

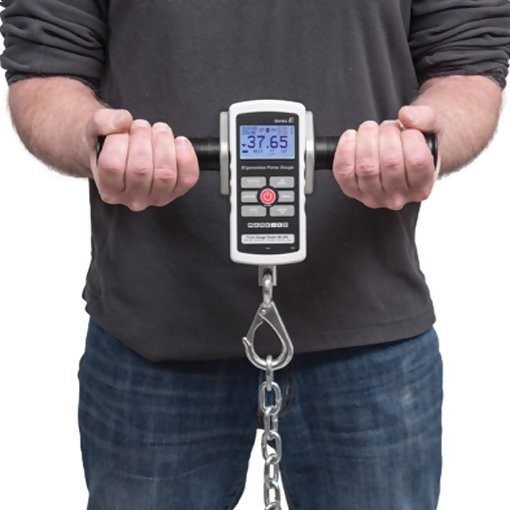

- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Click-Lock™ accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
- Statistical calculations for saved data points
Specifications
| Accuracy | ±0.2% of Full Scale |
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use |
| Measurement units | lbF, ozF, gF, kgF, N, kN (depending on model) |
| USB Output | Configurable up to 115,200 baud |
| Safe overload | 200% of full scale (display shows "OVER" at 110% and above) |
| Weight | 1.7 lb (0.8 kg) |
| Included items | Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data |
| Warranty | 3 years |
Ranges (Capacity / Resolution)
Related Products
Accessories
- Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
- Does not fit into carrying cases
- Does not fit into carrying cases. Requires E1006 hook
