Name: Mark-10 MR02-10000 Rugged S-beam Compression Force Sensor Series R02, 10000lbf / 5000 Kgf / 50000 N
Brand: Mark-10
SKU: 824
Price: 1000.00 USD
Availability: InStock

Mark-10 MR02-10000 Rugged S-beam Compression Force Sensor Series R02, 10000lbf / 5000 Kgf / 50000 N

See More Force Sensors

Mark-10 Series R02 Compression Force Sensor

8 Ranges up to 10,000 lbs

Measures tensile and compressive forces

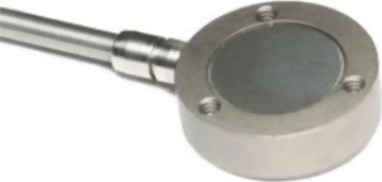

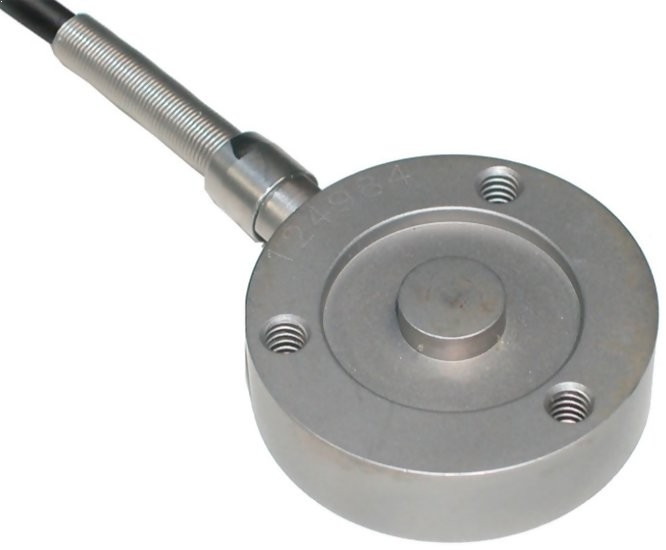

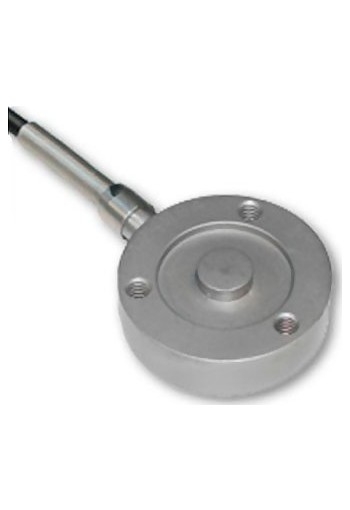

Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the Mark-10 Series R02 Compression Force Sensor is ideal for heavy duty applications with space constraints

Features

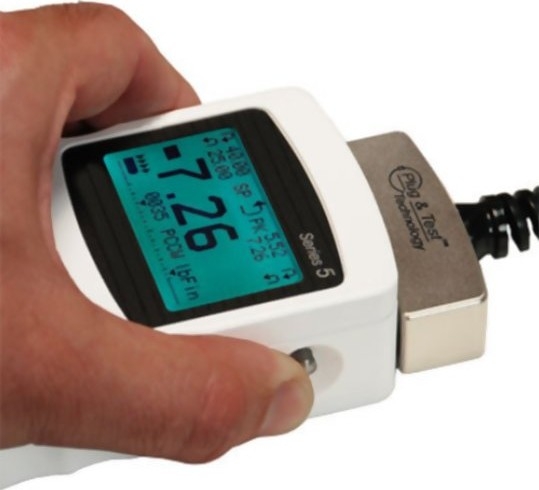

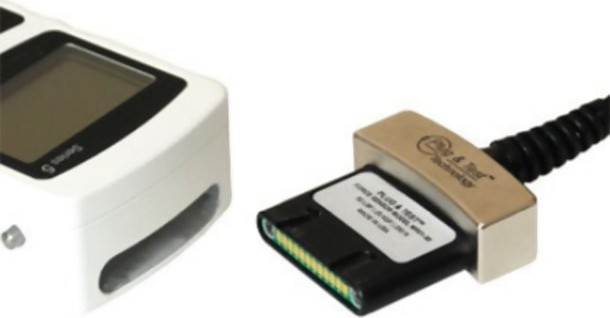

Member of the Plug & Test® family of interchangeable sensors and indicators
Small size Stainless steel construction
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications

Accuracy	± 0.15% of full scale ±1 digit + indicator
Weight	From 1.9 lbs (0.9 kg) to 3 lbs (1.4)

Force Ranges

With Models 7i and 5i Indicator

Model	lbF	ozF	gF	kgF	N	kN
MR02-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	–
MR02-200	200 x 0.1	3200 x 2	–	100 x 0.05	1000 x 0.5	1 x 0.0005
MR02-500	500 x 0.2	8000 x 5	–	250 x 0.1	2500 x 1	2.5 x 0.001
MR02-1000	1000 x 0.5	16000 x 10	–	500 x 0.2	5000 x 2	5 x 0.002
MR02-2000	2000 x 1	32000 x 20	–	1000 x 0.5	10000 x 5	10 x 0.005
MR02-5000	5000 x 2	–	–	2500 x 1	25000 x 10	25 x 0.01
MR02-10000	10000 x 5	–	–	5000 x 2	50000 x 25	50 x 0.02

With Model 3i Indicator

Model	lbF	kgF	N	kN
MR02-100	100 x 0.1	50 x 0.05	500 x 0.5	–
MR02-200	200 x 0.2	100 x 0.1	1000 x 1	–
MR02-500	500 x 0.5	250 x 0.2	2500 x 2	–
MR02-1000	1000 x 1	500 x 0.5	5000 x 5	–
MR02-2000	2000 x 2	1000 x 1	10000 x 10	–
MR02-5000	5000 x 5	2500 x 2	–	25 x 0.02
MR02-10000	10000 x 10	5000 x 5	–	50 x 0.05
