Name: Mark-10 MR04-100M Miniature S-Beam Force Sensor Series 4, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N, M3
Brand: Mark-10
SKU: 826
Price: 1750.00 USD
Availability: InStock

Mark-10 Series R04 Miniature S-Beam Force Sensor

8 Ranges up to 100 lbs

Force Gauge sold Separately

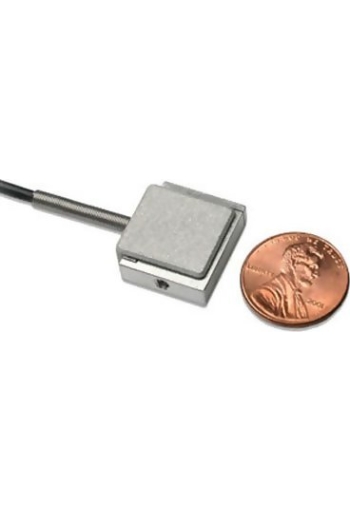

The Mark-10 Series R04 Miniature S-Beam Force Sensor is an extremely compact force measurement sensors for tensile and compressive loads in applications with limited space. The Mark-10 Series R04 Miniature S-Beam Force Sensor is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.

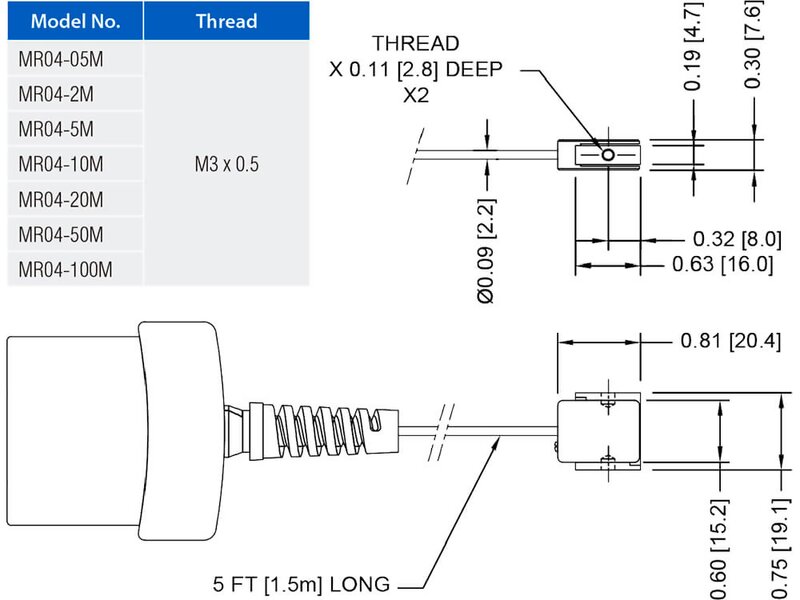

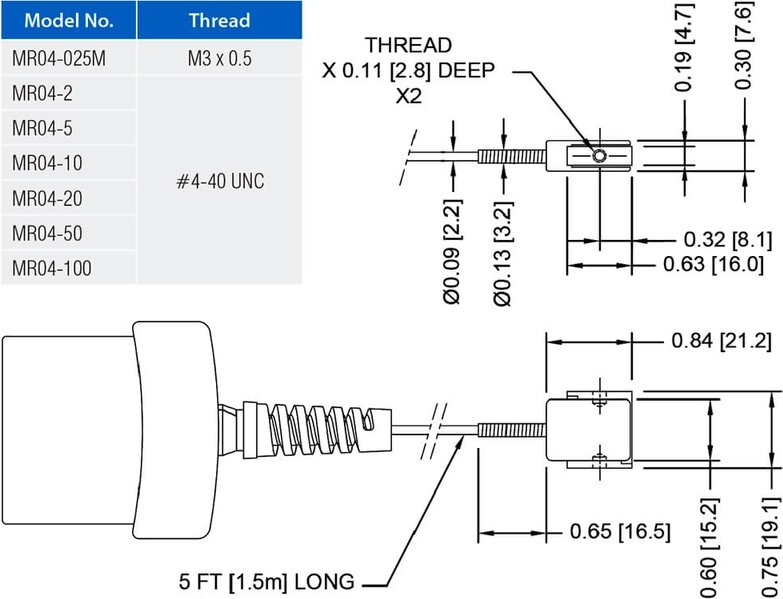

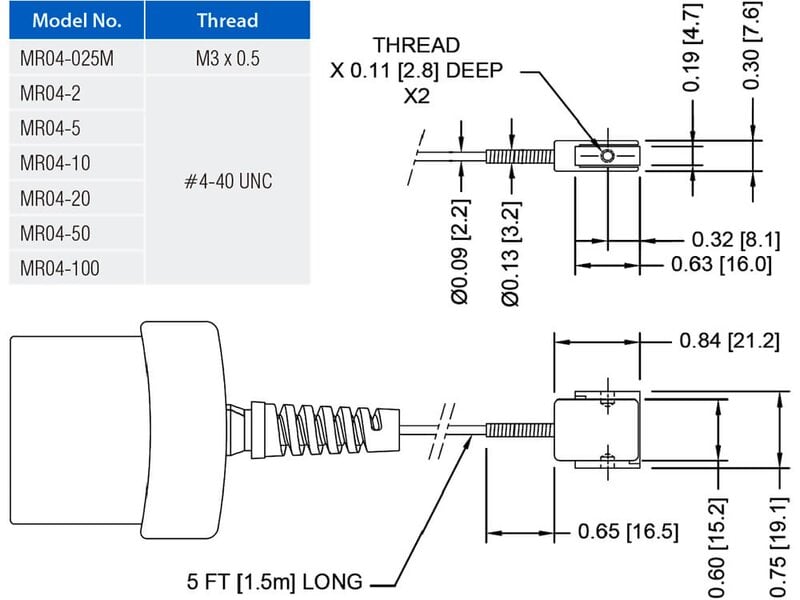

Note: Mark-10 Series R04 Miniature S-Beam Force Sensor is transitioning from #4-40 UNC to M3 x 0.5 thread. Add suffix “M” to denote M3 thread (ex. MR04-50M). #4-40 is available until inventory is depleted. Models no longer available are noted in the Ordering Information table below. Please inquire for the latest inventory information.

Features

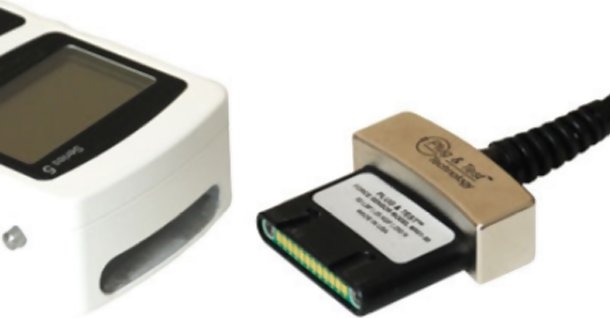

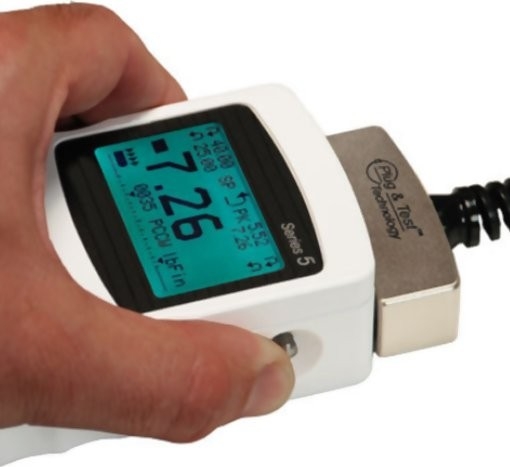

Member of the Plug & Test® family of interchangeable sensors and indicators
Ultra-compact size

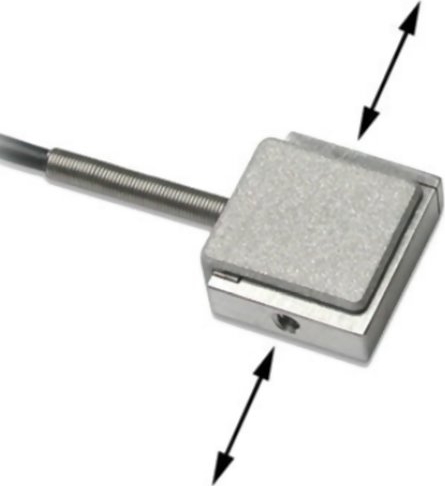

Measures tensile and compressive forces
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications

Accuracy	± 0.2% of full scale ±1 digit + indicator
Weight	0.015 lbs (0.007 kg)

Force Ranges

With Model 7i and 5i Indicators

Model	lbf	ozf	gf	kgf	N	mN
MR04-25	0.25 0.0001	4 0.002	100 0.05	-	1 0.0005	1000 0.5
MR04-05	0.5 0.0002	8 0.005	250 0.1	-	2.5 0.001	2500 1
MR04-2	2 0.001	32 0.02	1000 0.5	1 0.0005	10 0.005	-
MR04-5	5 0.002	80 0.05	2500 1	2.5 0.001	25 0.01	-
MR04-10	10 0.005	160 0.1	5000 2	5 0.002	50 0.02	-
MR04-20	20 0.01	320 0.2	10000 5	10 0.005	100 0.05	-
MR04-50	50 0.02	800 0.5	25000 10	25 0.01	250 0.1	-
MR04-100	100 0.05	1600 1	50000 20	50 0.02	500 0.2	-

With Model 3i Indicator

Model	lbf	ozf	gf	kgf	N	mN
MR04-25	0.25 0.0002	N/A	100 0.1	-	1 0.001	N/A
MR04-05	0.5 0.0005	N/A	250 0.2	-	2.5 0.002	N/A
MR04-2	2 0.002	N/A	-	1 0.001	10 0.01	N/A
MR04-5	5 0.005	N/A	-	2.5 0.002	25 0.02	N/A
MR04-10	10 0.01	N/A	-	5 0.005	50 0.05	N/A
MR04-20	20 0.02	N/A	-	10 0.01	100 0.1	N/A
MR04-50	50 0.05	N/A	-	25 0.02	250 0.2	N/A
MR04-100	100 0.1	N/A	-	50 0.05	500 0.5	N/A
