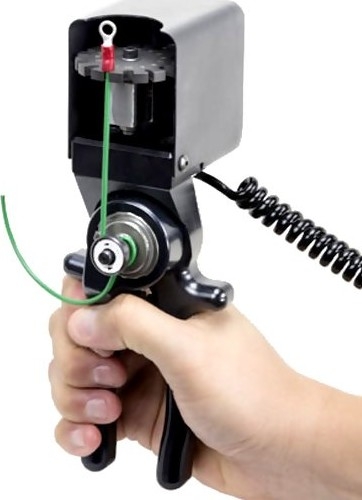

Mark-10 MR06-200 Wire Crimp Pull Sensor Tester Hand-Operated Pull Tester

---

200 lbF / 1000 N capacity

---

Accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm) / 20 - 3 AWG.

---

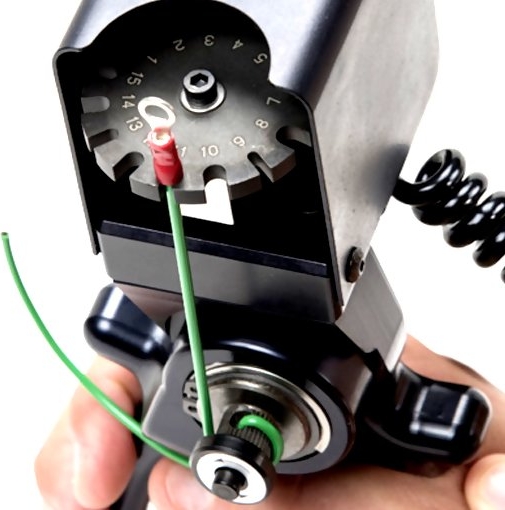

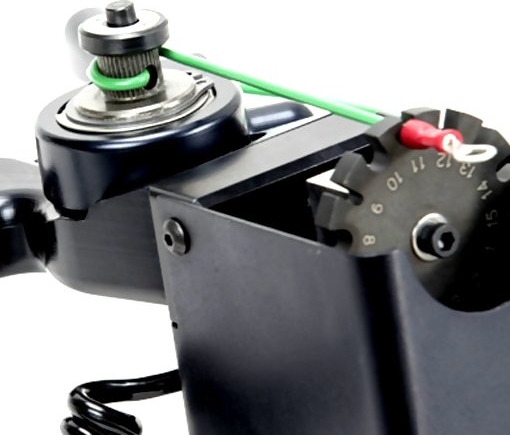

The Mark-10 MR06-200 Wire Crimp Pull Sensor Tester is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs.The peak force is recorded by a Series 7i, Series 5i or Series 3i. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm), 20 - 3 AWG.

Features

• Includes NIST-traceable certificate of calibration

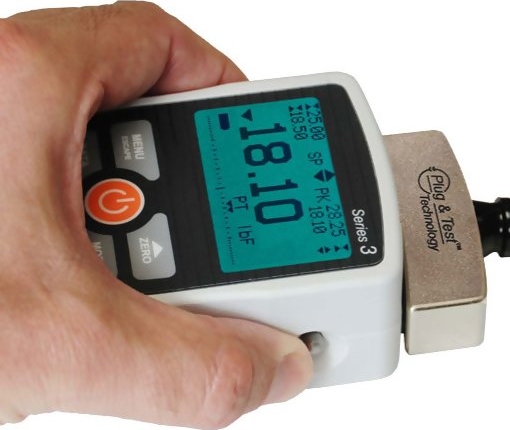

• Compatible with the 7i, 5i and 3i digital indicators
• Test wire diameters from 20 - 3 AWG

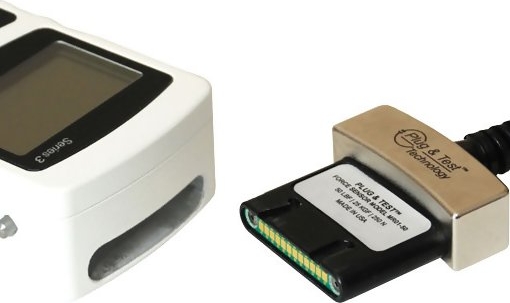

• Unique Plug & TestTM connector holds all calibration and configuration data
• Ergonomic handles and convenient tensioning mechanism
• Measures pull forces
• 3 Year Warranty

Specifications

Ranges

With Model 7i and 5i Indicators

With Model 3i Indicator
