This product has been replaced by the Mark-10 TT01
Closure Torque Sensor / Bottle Cap Testing
Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)

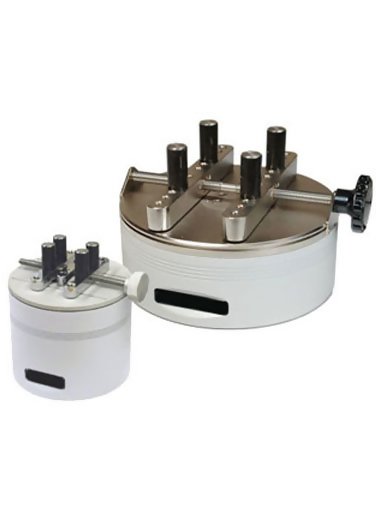

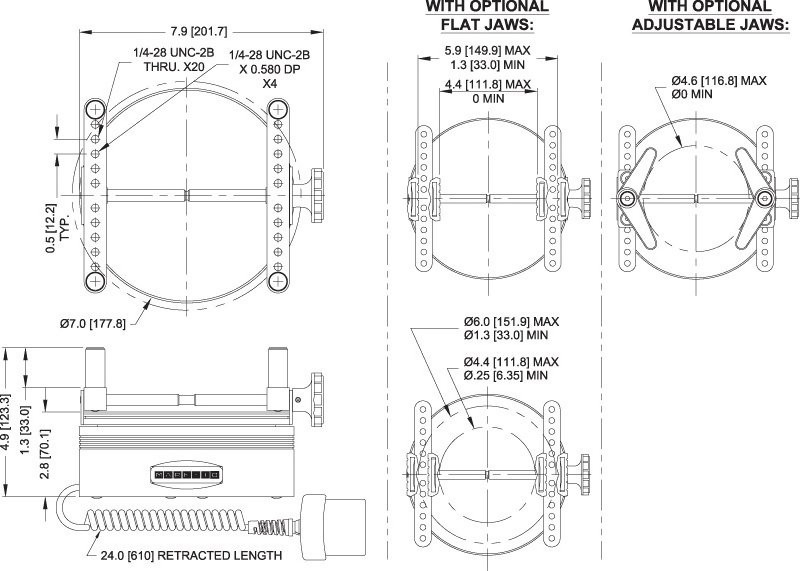

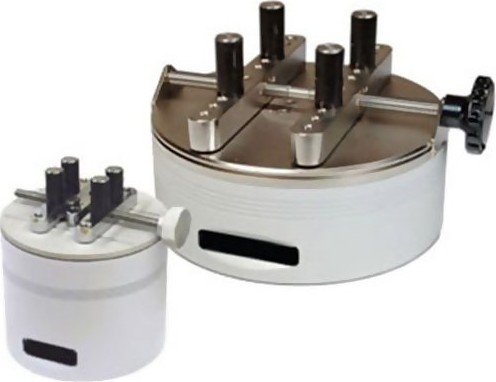

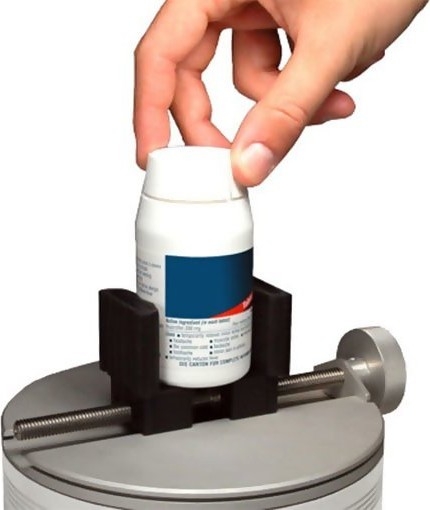

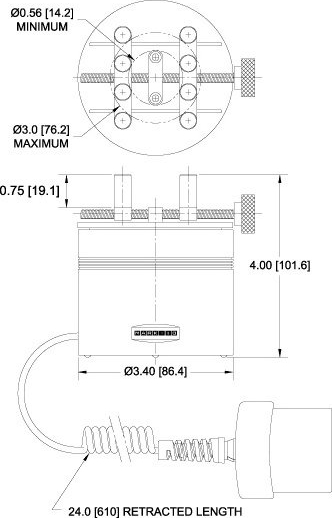

The Mark-10 R53 is ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 in [14 - 148 mm] in diameter. Models contain reversible jaws or movable posts to easily accommodate a variety of shapes and sizes. Capacities available from 10 ozin to 100 lbin.
Features

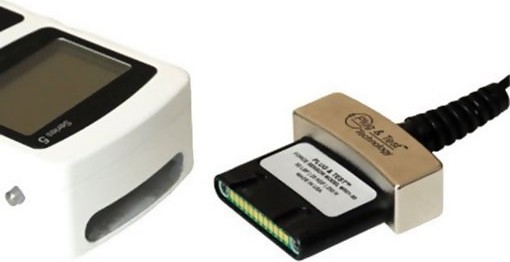

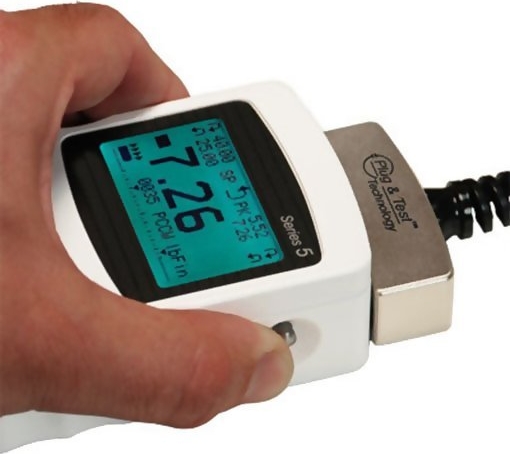

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Rugged aluminum housing

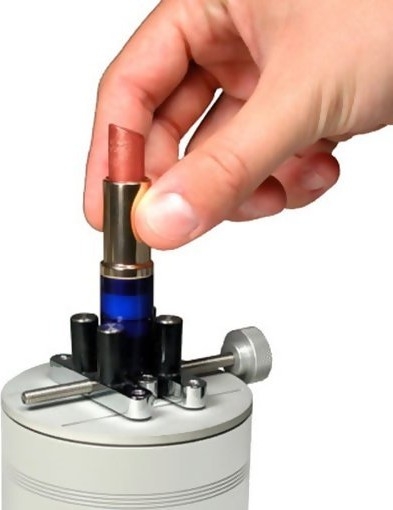

- Includes four rubber-edged posts, accommodating a range of sample shapes and sizes
- Spill-proof construction
- May be used for torque tool calibration
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
Specifications
| Accuracy | ± 0.5% of full scale ±1 digit + indicator |
| Weight | MR53-10Z - MR53-50Z - 2.2 lbs (1.0 kg)
MR53-12 - MR53-100 - 5.4 lbs (2.5 kg) |
Torque Ranges
| Model | ozFin | lbFin | lbFft | gFcm | kgFmm | Nmm | Ncm | Nm |
| MR53-10Z | 10
0.01 | - | - | 700
0.5 | 7
0.005 | 70
0.05 | 7
0.005 | - |
| MR53-20Z | 20
0.02 | - | - | 1400
1 | 14
0.01 | 140
0.1 | 14
0.01 | - |
| MR53-50Z | 50
0.05 | - | - | 3600
5 | 36
0.05 | 350
0.5 | 35
0.05 | - |
| MR53-12 | - | 12
0.01 | 1
0.001 | - | 140
0.1 | - | 135
0.1 | 1.35
0.001 |
| MR53-50 | - | 50
0.05 | 4
0.005 | - | 580
0.5 | - | 570
0.5 | 5.7
0.005 |
| MR53-100 | - | 100
0.1 | 8
0.01 | - | 1150
1 | - | 1150
1 | 11.5
0.01 |
