Product Description
Threaded Force Sensor
3 Ranges up to 10000 lbF / 5000 kgF / 50000 N / 50 kN
Measures tensile and compressive forces

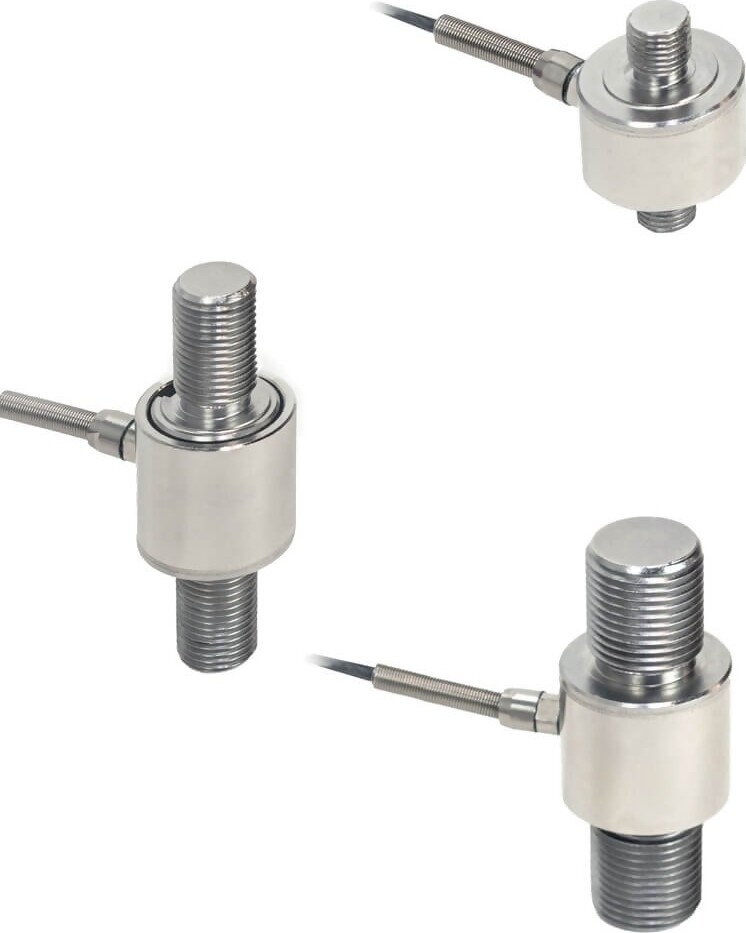

The Mark-10 R08 Tension and Compression Force Sensors is a threaded niversal sensor for tension and compression applications up to 10,000 lbF (50 kN). Threaded rods on each end allow for a variety of mounting configurations.

Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.


line
Features
line

  • Member of the Plug & Test® family of interchangeable sensors and indicators
  • Threaded rods on both ends
  • 17-4PH stainless steel / IP64 design withstands harsh environments
  • NIST-traceable certificate of calibration with data is included. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
  • Warranty: 3 years


line
Specifications
line

Accuracy±0.5% of full scale + indicator
WeightMR08-2000: 0.3 lb [0.1 kg]
MR08-5000: 0.4 lb [0.1 kg]
MR08-10000:0.6 lb [0.2 kg]
Shipping weight (all models)2 lb [0.9 kg]
Country of originUSA


lineCapacity x ResolutionlineWith Models M7I & M5I Indicators

ModellbFozFgFkgFNkN

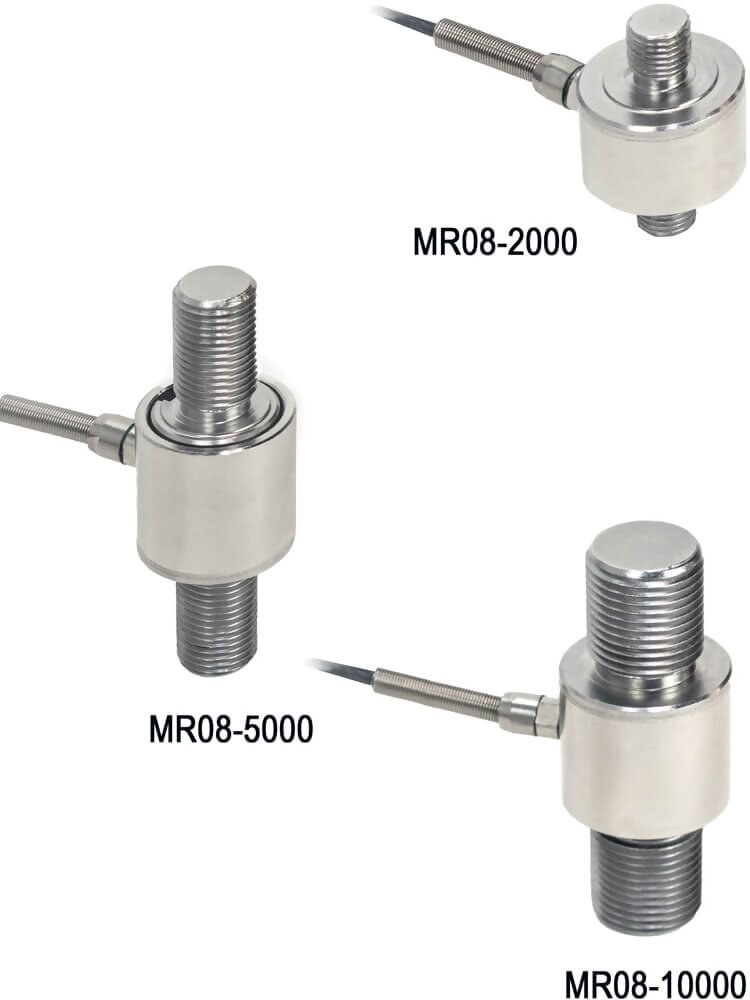

MR08-20002000 x 132000 x 20-1000 x 0.510000 x 510 x 0.005
MR08-50005000 x 2--2500 x 125000 x 1025 x 0.01
MR08-1000010000 x 5--5000 x 250000 x 2550 x 0.02


With Model M3I Indicator

ModellbFkgFNkN
MR08-20002000 x 21000 x 110000 x 10-
MR08-50005000 x 52500 x 2-25 x 0.02
MR08-1000010000 x 105000 x 5-50 x 0.05
