Mark-10 R51 Universal Torque Sensor

See More Force Sensors

Mark-10 R51 Universal Torque Sensor

See More Force Sensors
Price:
$880.00 - $955.00
    warrenty

    Product Description
    General torque testing
    Interchangeable attachments
    Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
    Bi-directional

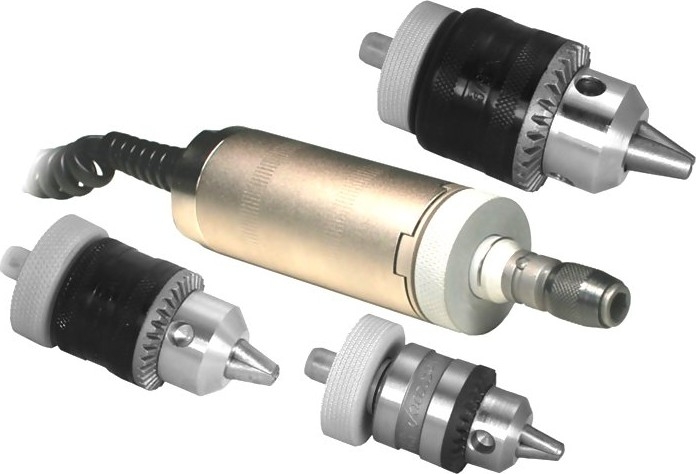

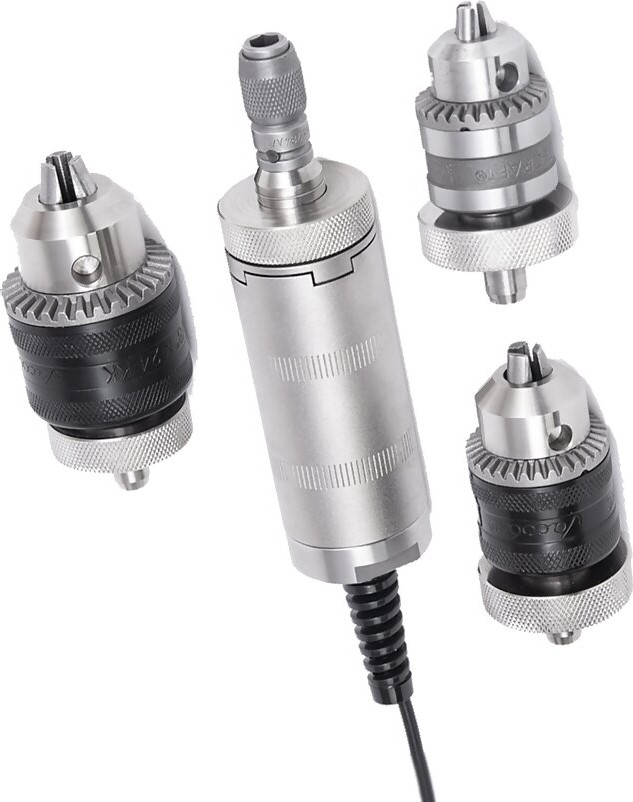

    A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The Mark-10 R51 Universal Torque Sensor has superb overload protection and is available in capacities from 10 ozin to 100 lbin.


    line
    Features
    line

    • Member of the Plug & Test® family of interchangeable sensors and indicators
    • Outstanding overload protection

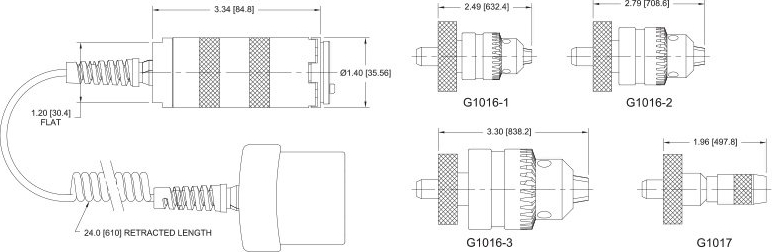

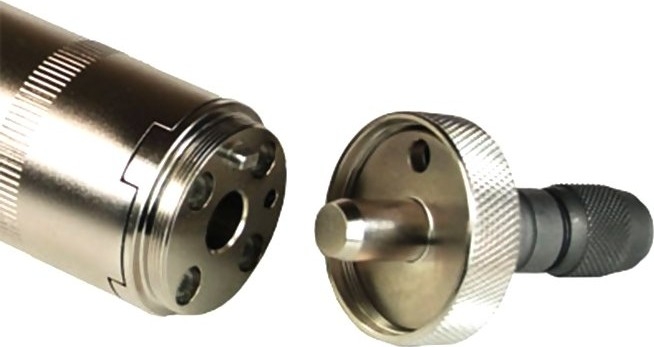

    • Interchangeable chucks (order separately)
    • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
    • Warranty: 3 years


    line
    Specifications
    line

    Accuracy± 0.20% of full scale ±1 digit + indicator
    Weight1.4 lbs (0.6 kg)


    line
    Force Ranges
    line

    With Model 7i and 5i Indicators

    ModellbFinozFinlbFftgFcmkgFmmNmmNcmNm
    MR51-10Z10 x 0.005700 x 0.57 x 0.00570 x 0.057 x 0.005
    MR51-20Z20 x 0.011400 x 114 x 0.01140 x 0.114 x 0.01
    MR51-50Z50 x 0.023600 x 236 x 0.02350 x 0.235 x 0.02
    MR51-1212 x 0.005192 x 0.11 x 0.0005135 x 0.11.35 x 0.001
    MR51-5050 x 0.02800 x 0.54 x 0.002570 x 0.55.7 x 0.005
    MR51-100100 x 0.051600 x 18 x 0.0051150 x 0.511.5 x 0.005


    With Model 3i Indicator

    ModellbFinozFinkgFmmNcm
    MR51-10Z10 x 0.017 x 0.0057 x 0.005
    MR51-20Z20 x 0.0214 x 0.0114 x 0.01
    MR51-50Z50 x 0.0536 x 0.0536 x 0.05
    MR51-1212 x 0.01192 x 0.2135 x 0.1
    MR51-5050 x 0.05800 x 1570 x 0.5
    MR51-100100 x 0.11600 x 21150 x 1


    line
    Related Products
    line

    Series-7i
    Professional Force and Torque Indicator

    • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
    related

    line

    Series-5i
    Advanced Force/Torque Indicator

    • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
    related

    line

    Series-3i
    Force and Torque Indicator

    • Interchangeable force and torque sensors through Plug & Test™technology
    • USB data output
    related


    lineDownloads
    line

    ABQMark-10 R51 Universal Torque Sensor - Data Sheet
