Name: Mark-10 Series R01 S-Beam Tension & Compression Force Sensor
Brand: Mark-10
SKU: 823

Mark-10 Series R01 S-Beam Tension & Compression Force Sensor

See More Force Sensors

Mark-10 Series R01 S-Beam Tension & Compression Force Sensor

8 Ranges up to 10,000 lbs

Measures tensile and compressive forces

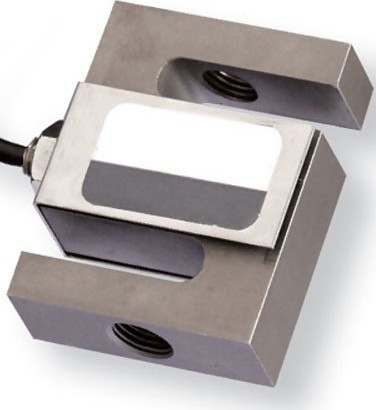

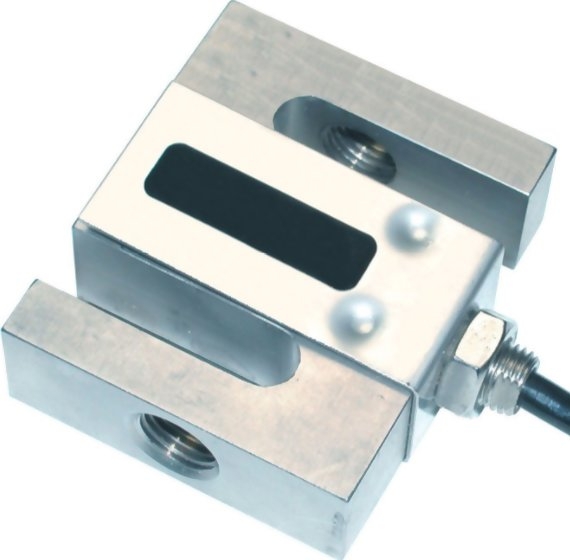

The Mark-10 Series R01 S-Beam Force Sensor is a rugged S-Beam force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments.

Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology.

The sensors can be integrated into an existing system or mounted to a Mark-10 test stand.

line
Features
line

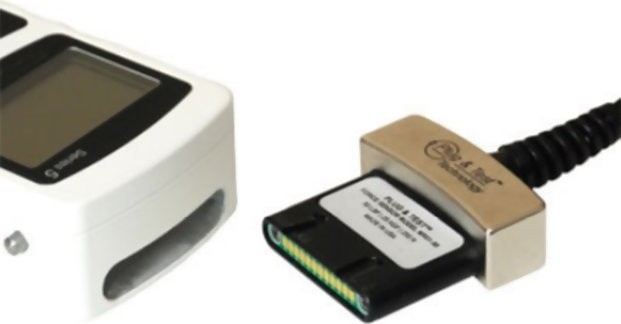

Member of the Plug & Test® family of interchangeable sensors and indicators
Measures tensile and compressive forces
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

line
Specifications
line

Accuracy	± 0.15% of full scale + indicator
Weight	From 1.9 to 3 lb (0.9 to 1.4 kg)

line
Force Ranges
line

With Models 5i and 7i Indicators

Model	lbF	ozF	gF	kgF	N	kN
MR01-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	–
MR01-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	–
MR01-200	200 x 0.1	3200 x 2	–	100 x 0.05	1000 x 0.5	1 x 0.0005
MR01-300	300 x 0.2	4800 x 5	–	150 x 0.1	1500 x 1	1.5 x 0.001
MR01-500	500 x 0.2	8000 x 5	–	250 x 0.1	2500 x 1	2.5 x 0.001
MR01-750	750 x 0.5	12000 x 10	–	375 x 0.2	3750 x 2	3.75 x 0.002
MR01-1000	1000 x 0.5	16000 x 10	–	500 x 0.2	5000 x 2	5 x 0.002
MR01-1500	1500 x 1	24000 x 20	–	750 x 0.5	7500 x 5	7.5 x 0.005
MR01-2000	2000 x 1	32000 x 20	–	1000 x 0.5	10000 x 5	10 x 0.005
MR01-5000	5000 x 2	–	–	2500 x 1	25000 x 10	25 x 0.01
MR01-10000	10000 x 5	–	–	5000 x 2	50000 x 25	50 x 0.02

With Model 3I Indicator

Model	lbF	kgF	N	kN
MR01-50	50 x 0.05	50 x 0.05	500 x 0.5	–
MR01-100	100 x 0.1	50 x 0.05	500 x 0.5	–
MR01-200	200 x 0.2	100 x 0.1	1000 x 1	–
MR01-300	300 x 0.5	150 x 0.2	1500 x 2	–
MR01-500	500 x 0.5	250 x 0.2	2500 x 2	–
MR01-750	750 x 0.5	375 x 0.2	3750 x 2	–
MR01-1000	1000 x 1	500 x 0.5	5000 x 5	–
MR01-1500	1500 x 2	750 x 1	7500 x 10	–
MR01-2000	2000 x 2	1000 x 1	10000 x 10	–
MR01-5000	5000 x 5	2500 x 2	–	25 x 0.02
MR01-10000	10000 x 10	5000 x 5	–	50 x 0.05

line
Related Products
line

Series-7i
Professional Force and Torque Indicator

Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

line

Series-5i
Advanced Force/Torque Indicator

1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

line

Series-3i
Force and Torque Indicator

Interchangeable force and torque sensors through Plug & Test™technology
USB data output

line
Downloads
line

Mark-10 Series R01 S-Beam Tension & Compression Force Sensor - Data Sheet

Mark-10 Series R01 S-Beam Tension & Compression Force Sensor - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mark-10 MR01-50 S-Beam Tension and Compression Force Sensor Series R01/ Load Cell, 50 lbf / 25 Kgf / 250 N View Model Details

$700.00

Mark-10 MR01-100 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 100 lbf / 50 Kgf / 500 N View Model Details

$700.00

Mark-10 MR01-200 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 200 lbf / 100 Kgf / 1000 N View Model Details

$700.00

Mark-10 MR01-500 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 500 lbf / 250 Kgf / 2500 N View Model Details

$700.00

Mark-10 MR01-750 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 750lbF View Model Details

$700.00

Mark-10 MR01-1000 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 1000 lbf / 500 Kgf / 5000 N View Model Details

$700.00

Mark-10 MR01-1500 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 1500lbF View Model Details

$700.00

Mark-10 MR01-2000 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 2000 lbf / 1000 Kgf / 10000 N View Model Details

$700.00

Mark-10 MR01-5000 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 5000 lbf / 2500 Kgf / 25000 N View Model Details

$1,000.00

Mark-10 MR01-10000 S-Beam Tension and Compression Force Sensor Series R01 / Load Cell, 10000 lbf / 5000 Kgf / 50000 N View Model Details

$1,000.00

Recommended Accessories

PRICE

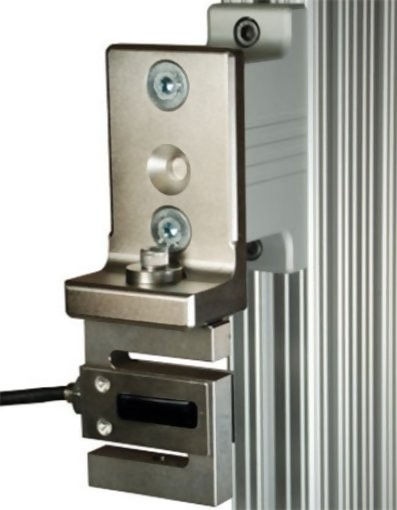

AC1018 Mounting kit SS to TS-Series test stand

$144.00
