Product Description

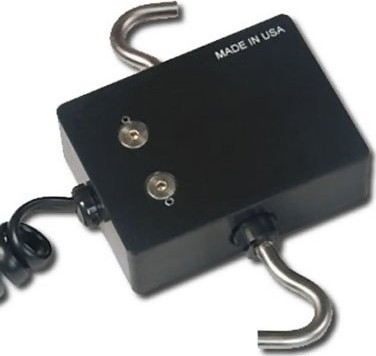

Mark-10 Series R03 Tension and Compression Force Sensor
8 Ranges up to 100 lbs

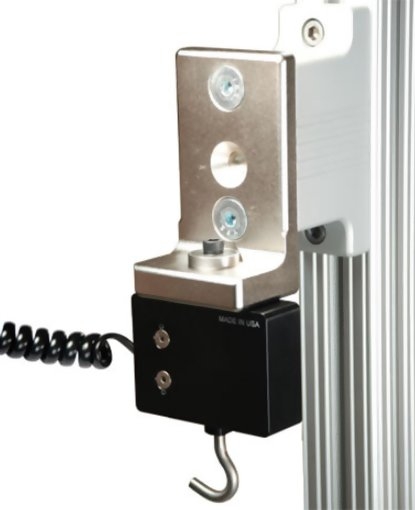

Well suited for inline tests

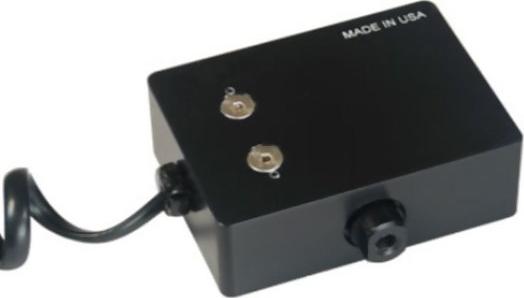

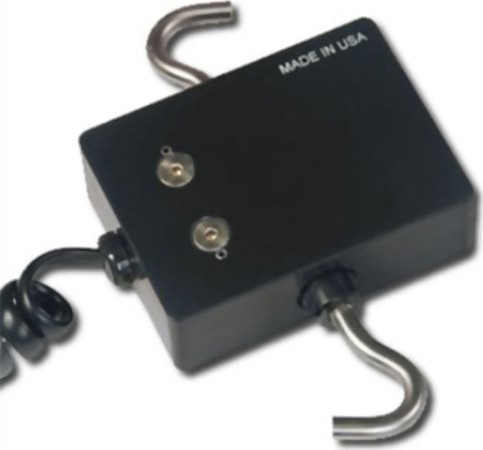

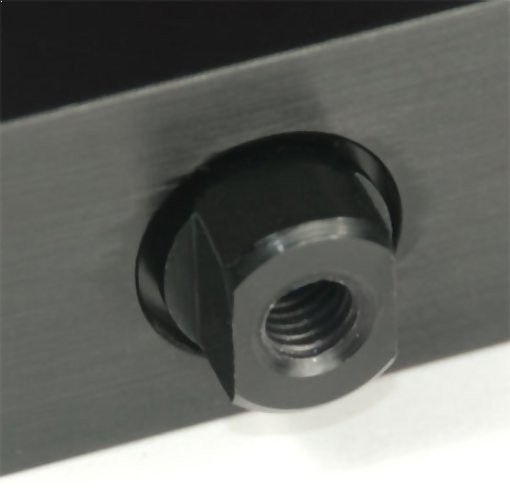

The Mark-10 Series R03 smart sensors are designed for tension and compression measurement applications in virtually every industry. Threaded holes on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.


line
Features
line

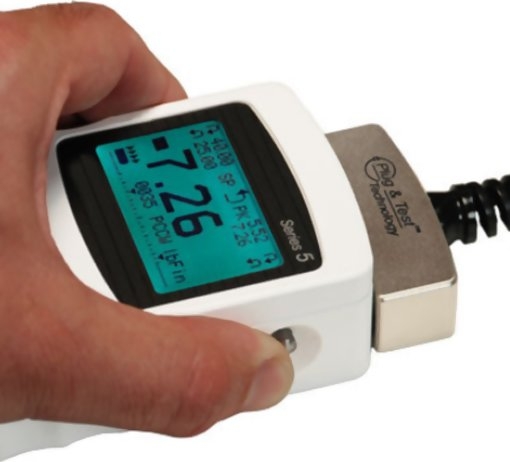

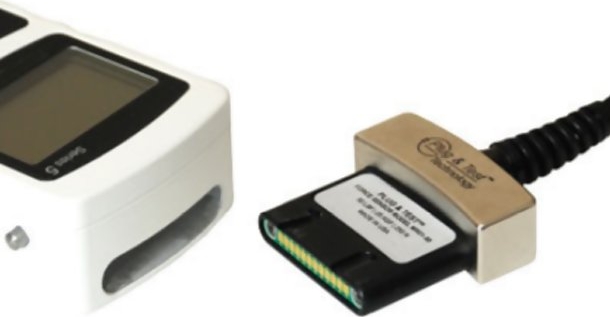

  • Member of the Plug & Test® family of interchangeable sensors and indicators
  • Rugged aluminum housing
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
  • Warranty: 3 years


line
Specifications
line

Accuracy± 0.15% of full scale ±1 digit + indicator
Weight0.4 lbs (0.2 kg)


line
Force Ranges
line

With Models 7i and 5i Indicator

ModellbFozFgFkgFNmN
MR03-0250.25 x 0.00014 x 0.002100 x 0.05–1 x 0.00051000 x 0.5
MR03-050.5 x 0.00028 x 0.005250 x 0.1–2.5 x 0.0012500 x 1
MR03-22 x 0.00132 x 0.021000 x 0.51 x 0.000510 x 0.005–
MR03-55 x 0.00280 x 0.052500 x 12.5 x 0.00125 x 0.01–
MR03-1010 x 0.005160 x 0.15000 x 25 x 0.00250 x 0.02–
MR03-2020 x 0.01320 x 0.210000 x 510 x 0.005100 x 0.05–
MR03-5050 x 0.02800 x 0.525000 x 1025 x 0.01250 x 0.1–
MR03-100100 x 0.051600 x 150000 x 2050 x 0.02500 x 0.2–


With Model 3i Indicator

ModellbFgFkgFN
MR03-0250.25 x 0.0002100 x 0.1–1 x 0.001
MR03-050.5 x 0.0005250 x 0.2–2.5 x 0.002
MR03-22 x 0.002–1 x 0.00110 x 0.01
MR03-55 x 0.005–2.5 x 0.00225 x 0.02
MR03-1010 x 0.01–5 x 0.00550 x 0.05
MR03-2020 x 0.02–10 x 0.01100 x 0.1
MR03-5050 x 0.05–25 x 0.02250 x 0.2
MR03-100100 x 0.1–50 x 0.05500 x 0.5


line
Related Products
line

Series-7i
Professional Force and Torque Indicator

  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
related

line

Series-5i
Advanced Force/Torque Indicator

  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
related

line

Series-3i
Force and Torque Indicator

  • Interchangeable force and torque sensors through Plug & Test™technology
  • USB data output
related


line
Downloads
line

ABQMark-10 R03 Tension and Compression Force Sensor - Data Sheet
