Humimeter BL2 Universal Biomass Moisture Meter

See More Biomass Moisture Meters

Humimeter BL2 Universal Biomass Moisture Meter

Suitable for Wood chips, pellets, saw dust, round wood, split wood hay bales and straw bales.

Measuring range: up to 60% water content

Accuracy: < 2.5%

Instant measuring results

The Humimeter BL2 Universal Biomass Moisture Meter is specifically-designed for users who require a portable moisture meter to cover a wide range of biomass applications. It is supplied with both the insertion probe for wood chips, wood pellets and sawdust as well as the hammer Probe with short and long pins for measurement on round timber, split logs and hay and straw bales.

The Humimeter BL2 Universal Biomass Moisture Meter is supplied with several calibration curves that are automatically activated when a specific probe is connected. If more than one calibration is offered for the connected probe, it can be user-selected using the menu system. Measuring results are displayed instantly and are temperature compensated.

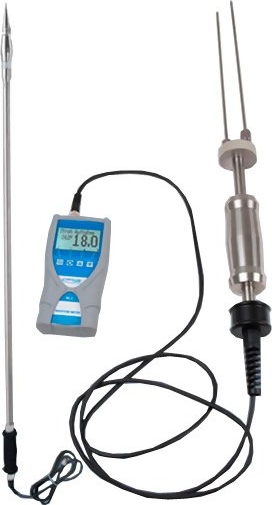

The image on the left shows the gauge with the hammer probe with the 255mm Hay & Straw Pins attached. When this probe fitted with the nails it can be used for round wood and split logs.

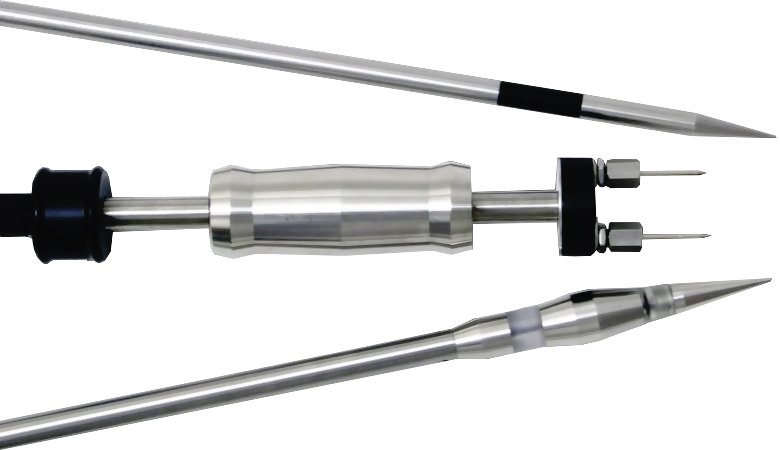

The picture below details the Insertion Probe for measurement of Wood Chips, Wood Pellets and Saw Dust.

The BL2 can also be supplied with an USB interface (BL2-USB-KIT) and is supplied with USB cable and Software.

ABQ

line
Features
line

Automatic temperature compensation (set to °C or °F as required)
Large, back-lit LCD display with Automatic averaging
Temperature can be set to °C or °F as required
BL2-KIT-USB is supplied with USB output including PC software and data transfer cable
Measurement within seconds without prior treatment of samples
2 Year Warranty
Hold function, manual saving of results, data log for 10,000 logs within measuring point report
Gauge menus in English, German, French, Italian, Spanish and Russian
Memory for 10,000 data points
Supplied in custom fitted wood carrying case

line
Specifications
line

Resolution	0.1% water content
Measuring range	up to 60% water content depending on material and probe type
Calibration Accuracy	±2.5 %
Material Temperature Range	0° - 40° C (104°F)
Temperature Limits	-10°C to 80°C (14°F to 176°F)
Menu languages	English, German, French, Italian, Spanish and Russian
Housing Material	Plastic with rubber protection cover, IP40 rating
Data logger	10,000 moisture measurements plus date, batch & temperature
Data Interface (BL2-USB only)	USB (supplied with data transfer cable & software)
Display	backlight Graphic LCD (128 x 64 pixel)
Battery Type	4 x 1.5 Volt AA Alkaline batteries
Battery Life	900 measurements (with auto-off after 6 minutes of non-use)
Weight	6.4 Kg (Kit in Wooden case)
Dimensions	121 x 17.5 x 8cm (LxWxH) 47.6" x 6.9" x 3.1" (LxWxH)
Warranty	2 Years
