This product has been replaced by the Tramex BSIK Kit
Tramex BSIK5.1 Building Survey Inspection Kit
Warranty: All Tramex products carry a full satisfaction guarantee including a one year warranty against defects in parts & workmanship and a refund if the unit is returned, shipping pre-paid, in new condition within 21 days of original delivery. Proof of purchase is necessary.

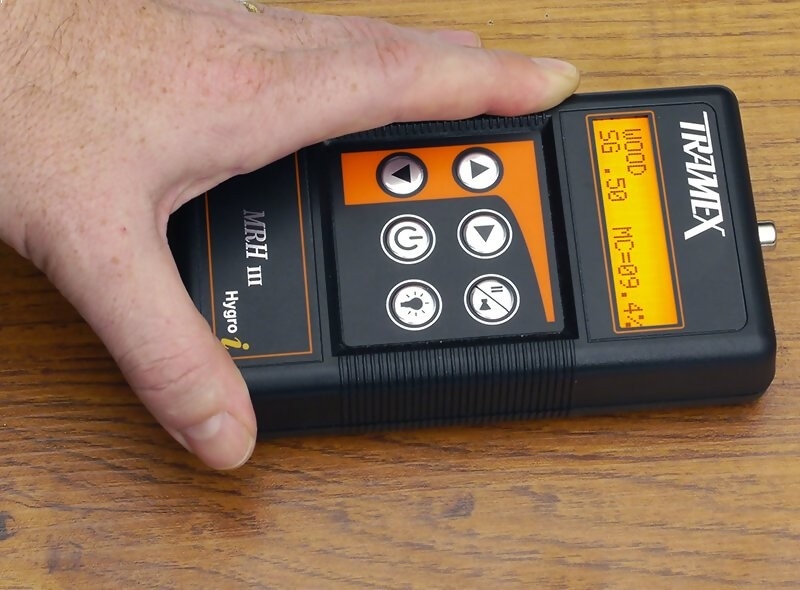

The Tramex BSIK5.1 Building Survey Inspection Kit features the multifunctional Tramex MRH III digital moisture meter allowing for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing.

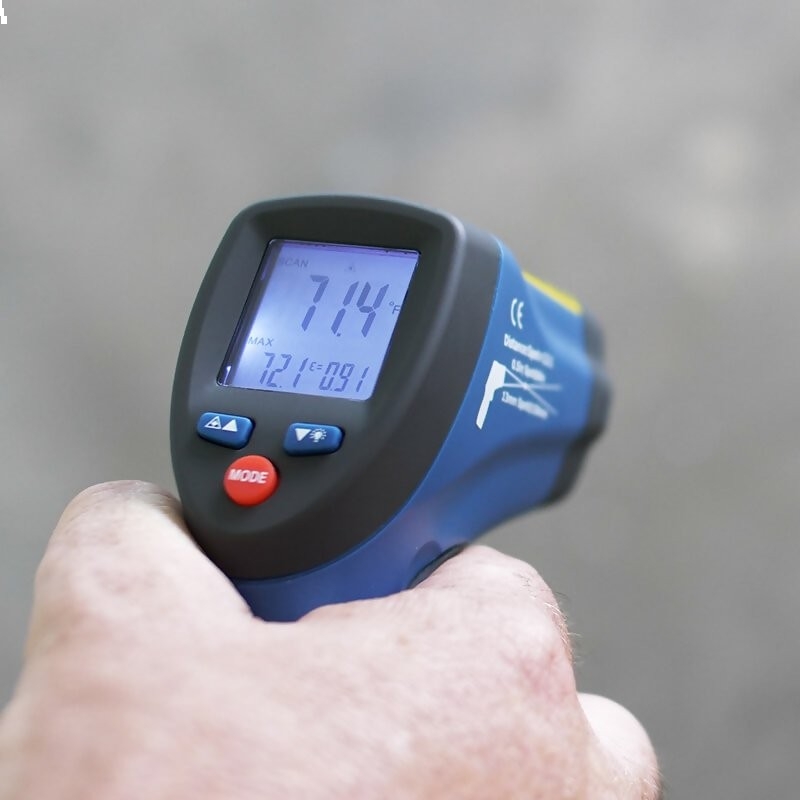

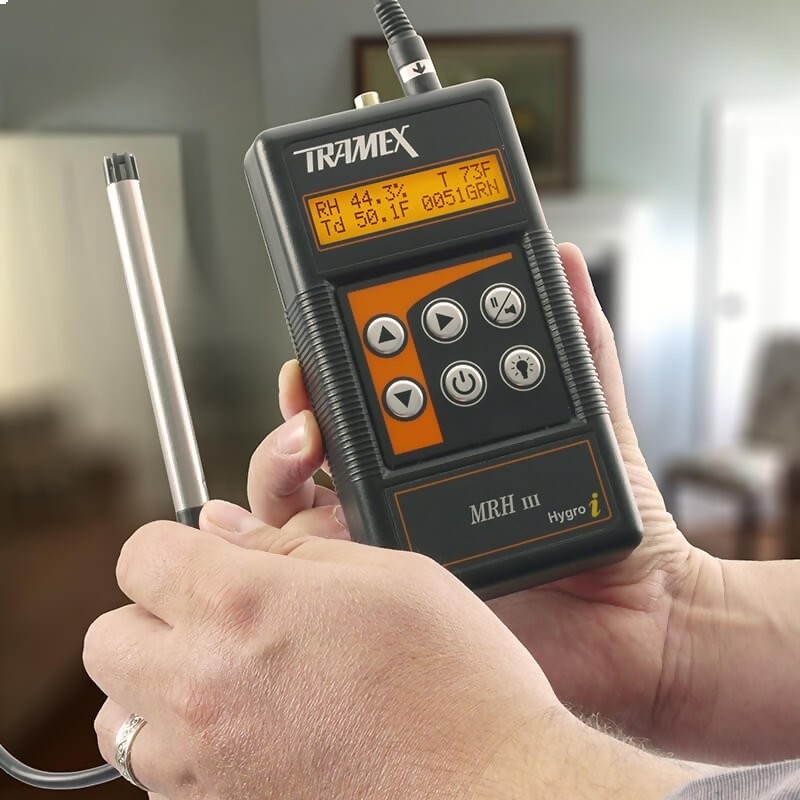

The Tramex MRH III Moisture and Humidity Meter and reusable relative humidity probe allow for testing relative humidity, temperature and dew point in the environment. When used in conjunction with the infrared surface thermometer, detrimental condensation conditions conducive to microbial growth can also be identified. The heavy-duty pin-probes measure moisture content in wood, and the insulated 7” pins allow for deep wall cavity probing. Concrete slab relative humidity testing to ASTM F2170 can also be performed with reusable relative humidity probes and hole liners (optional).

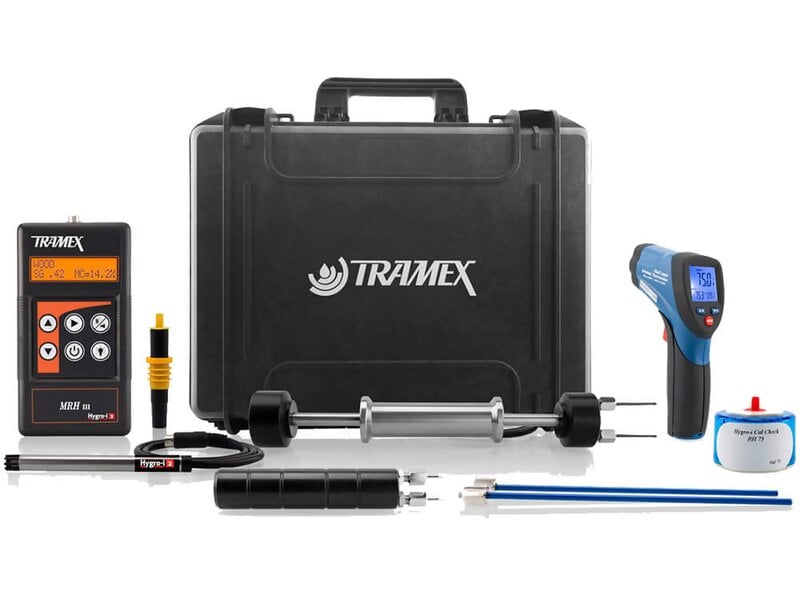

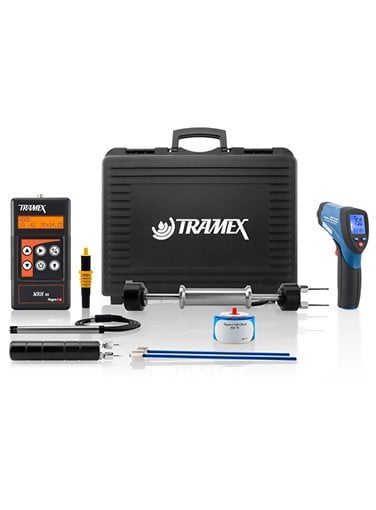

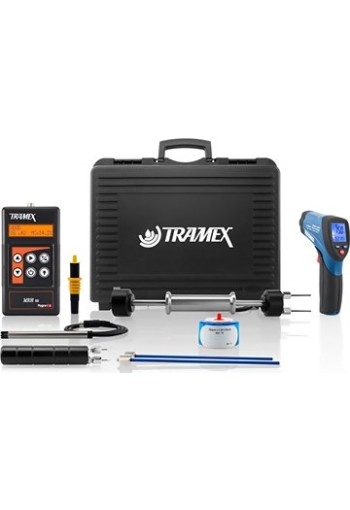

Kit Contents
Features
- Deep signal, non-destructive penetration up to 1¼" in wood and drywall in non-destructive mode.
- Detects moisture through paint, wall coverings, drywall, ceramic tiles, floor coverings, wood, roof coverings and most building materials.
- Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
- Audio signal sounds when meter indicates high readings.
- Large clear backlit digital display giving meaningful readings.
- Accurate non-invasive moisture content readings from 5 to 55% MC in wood.

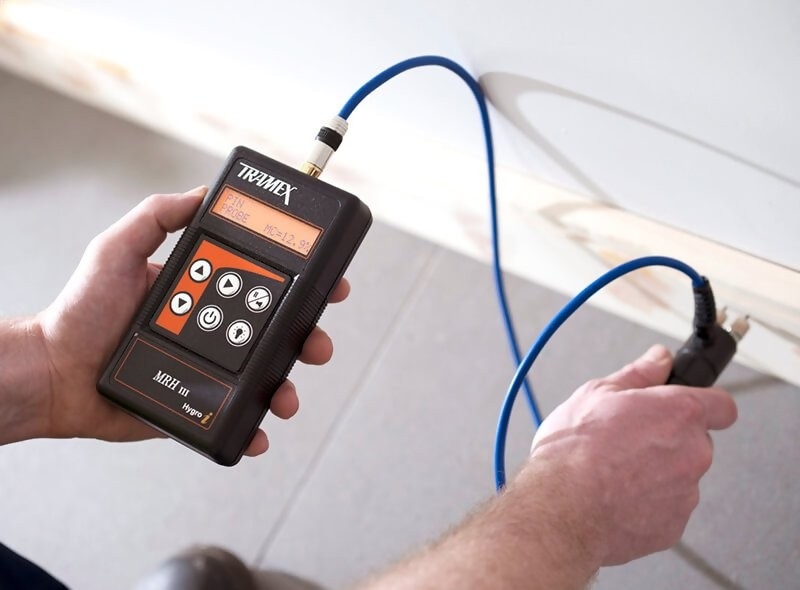

- Attachable pin-type wood probe for accessing hard to reach areas and for probing into wall cavities and wood.
- Attachable Relative Humidity probe for testing of relative humidity, temperature, dew point and grains per pound readings all shown on one clear display, (as well as in situ of concrete per ASTM F2170 with optional Hygro-I probes, hole liners and caps).
- Warranty: All Tramex products carry a full satisfaction guarantee including a one year warranty against defects in parts & workmanship and a refund if the unit is returned, shipping pre-paid, in new condition within 21 days of original delivery. Proof of purchase is necessary
Specifications
| Size | 16.9" x 13.6" x 5.1" (430mm x 345mm x 130mm) |
| Weight | 8.2lbs (3.72kg) |
| Power | 2 x 9 volt PP3 |
| Battery | Included |
| Measuring Range | MRH III |
| Depth of penetration | (NDT*) up to 1¼" (30mm) (in wood, drywall) |
| Wood Non-invasive Mode | 5 to 55% (at SG of 0.3) |
| Wood Invasive Mode using Pin Probe | 7 to 40% |
| Reference scale for building materials | 0 to 100 |
| Relative Humidity (with Hygro-i2 ® probe) | 0 to 99% |
| Humidity accuracy | 0% to 99%RH +/- 2% @ 25°C / 77°F |
Related Products
Tramex MRH III Moisture and Humidity Meter
- Moisture testing of wood, drywall, masonry, roofing and other construction materials
- Deep signal penetration up to over 1" into the materials being tested without the need to damage the surface
Tramex SAL75 Calibration Salt Check
- Calibration Salt Check for Tramex Hygro-i2 Relative Humidity Probe. The calibration salt check allows for regular calibration checks. Designed to produce a 75% RH environment within the chamber which may be used to ensure the calibration of the Hygro-i2®RH probe is optimum
- Order Code: SAL75, for Tramex RHP-LW Long RH Probe, Tramex RHP-SW Relative Humidity Probes
- Order Code: SAL75S, for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SW Relative Humidity Probes
- Order Code: SAL75N for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SNW Short Narrow Wand Relative Humidity Probe
- Order Code: SAL75-6 for Tramex Hygro-i2 Relative Humidity Probe for calibration checking of 6 probes at once.
