Tramex CCIK Concrete Coatings Inspector Kit
Industry: Flooring Inspection, Concrete Coatings, Water Damage Restoration

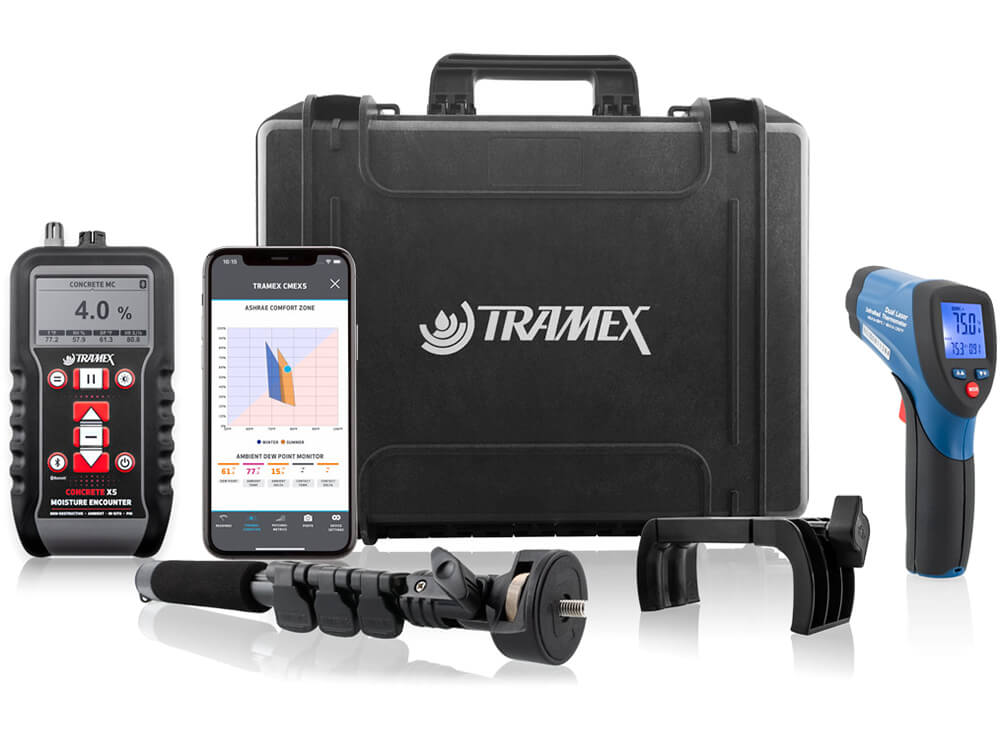

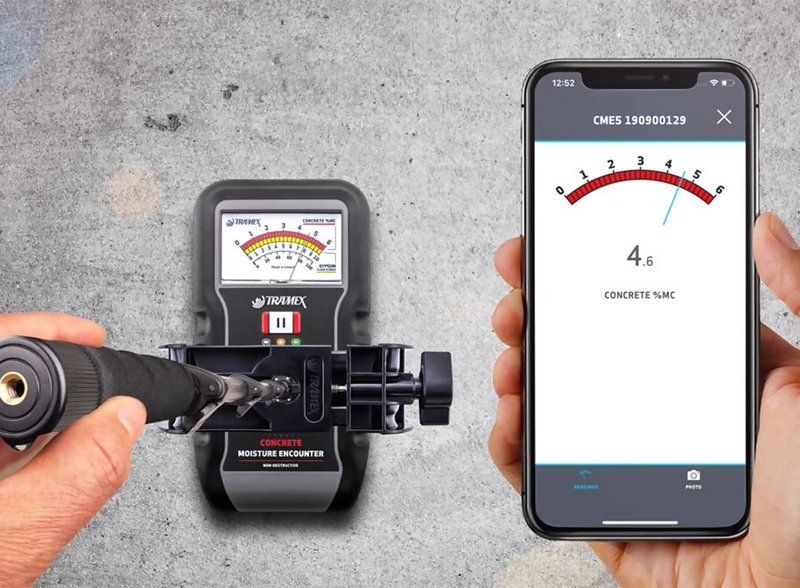

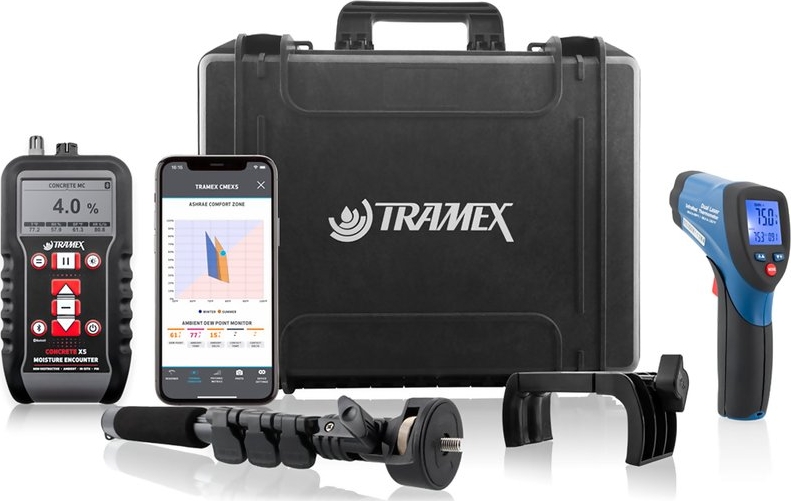

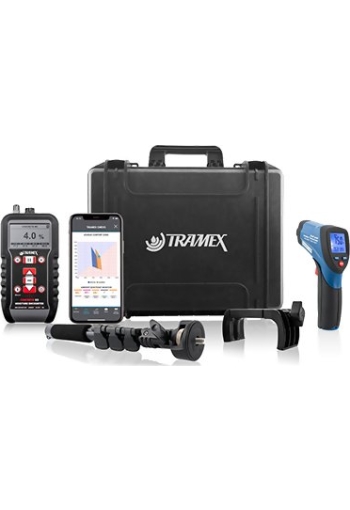

The Tramex CCIK Concrete Coatings Inspector Kit is a compact kit for instant and precise moisture testing of concrete floors and slabs. The Tramex CMEX5 Concrete Moisture Encounter X5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. Non-destructive testing of the top ¾" of the slab is most critical when applying coatings. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Concrete Coatings Inspector Kit comes with an extension handle in a Tramex Easy-travel case. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
Kit Contents
Specifications
Kit:
| Size | 17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm) |
| Weight | 6.8 lbs (3.1kg) |
| Power | 2 x AA batteries, 1 x 9 volt PP3 battery |

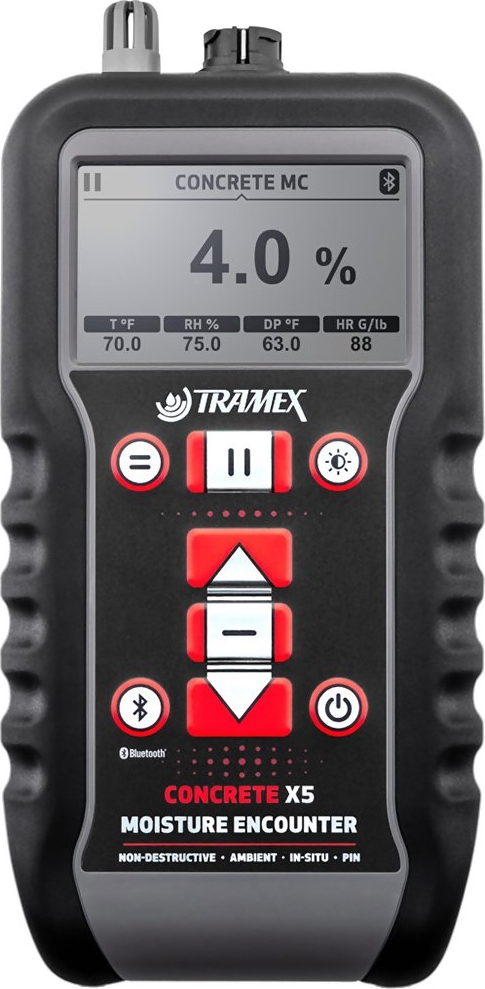

Tramex CMEX5 Concrete Moisture Encounter X5
| Moisture content for Concrete | 0 → 6.9 % |
| Comparative for Gypsum floor screed | 0 → 12 |
| CM Equiv Anhydrite/Concrete | 0→2.7 / 0→ 4.3 |
| Reference scale | 0 → 100 |
| Relative Humidity | 0 → 99% (with optional Hygro-i2 ® probe) |
| Humidity accuracy | 0% → 99%RH ± 2% @ 25°C / 77°F |
| Moisture content for wood | 5→ 30 % (with optional wood pin probes) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Digital |
| Depth of penetration in concrete | approx. ¾" (20mm) |

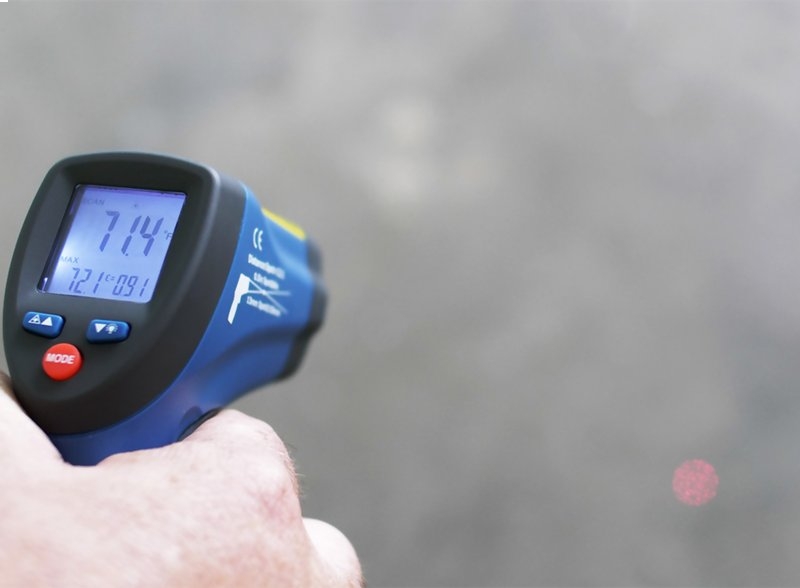

Tramex IRT2 Infrared Surface Thermometer
Temperature range | -58°F ~ 1202°F (-50 to 650 °C) |
| Distance to Spot ratio | D:S = 12:1 |
| Display resolution | 0.1 °F(0.1°C) <1000 1°C >1000 |
Accuracy for targets | Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5% |
Repeatability | -58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C) |
Response time | 150ms |
Spectral response | 8~14um |
Emissivity | Digitally adjustable from 0.10 to 1.0 |
Over range indication | LCD will show "----" |
Polarity: Automatic (no indication for positive polarity) | Minus (-) sign for negative polarity |
Diode laser output | <1mW,Wavelength 630~670nm, Class 2 laser product |
Operating temp. | 32 to 122°F ( 0 to 50°C) |
Storage temp. | 14 to 140°F (-10 to 60°C) |
Relative humidity | 10%~90%RH operating, <80%RH storage |
Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety | "CE" Comply with EMC |
Related Products
Tramex Extension Handle for ME5, CME5 and CMEX5
- The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
- Order Code: E5-HBS
