4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe
8 simple membrane keypad controls
Compact Kit For Measuring Relative Humidity and Moisture Content of Concrete and Wood Flooring
With Bluetooth and Accompanyning App

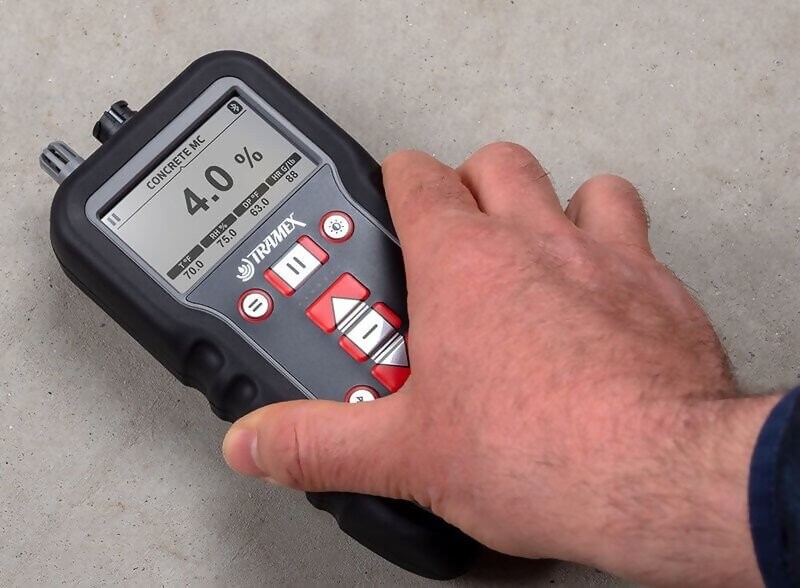

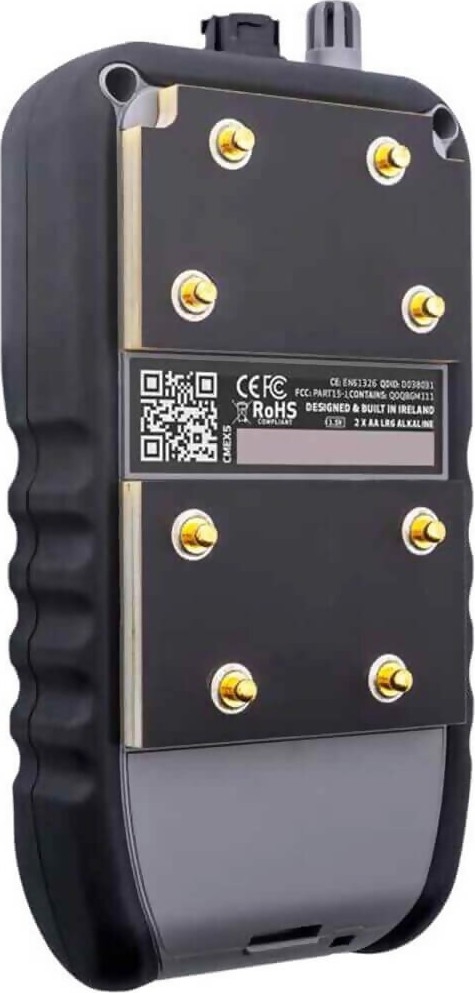

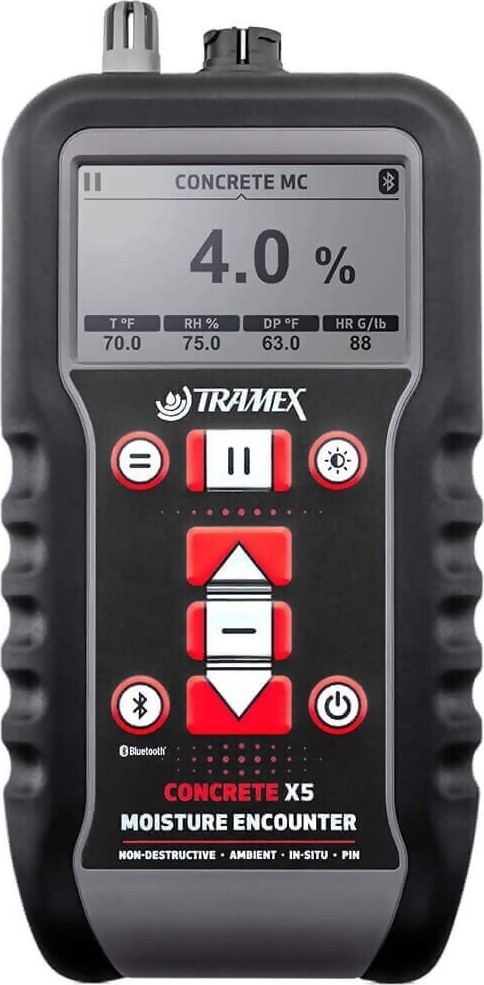

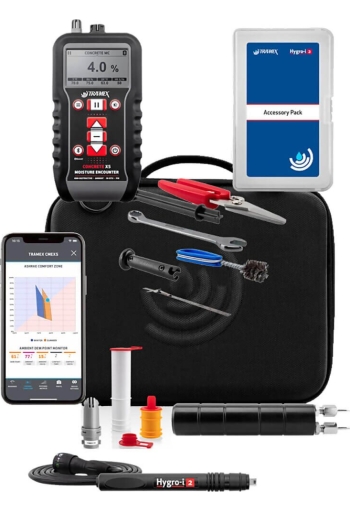

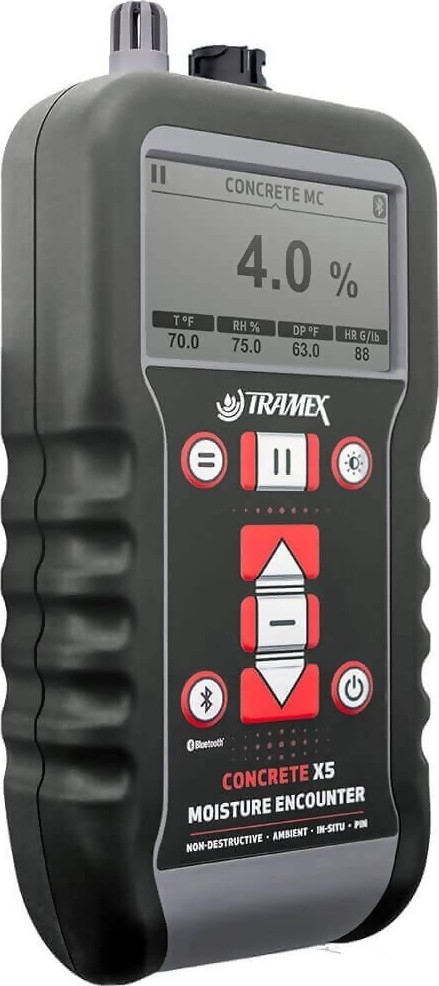

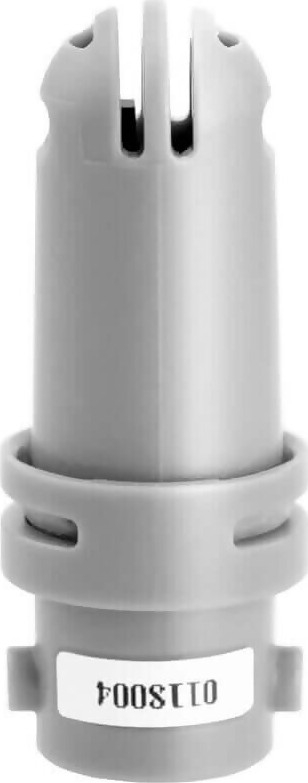

The Tramex FZK Flooring Inspector EZ Kit is compact kit for instant and precise moisture testing of concrete and wood flooring. The Tramex Tramex CMEX5 Concrete Moisture Encounter X5 digital moisture meter allows for non-destructive quantitative testing of concrete using Gravimetric testing as a baseline and comparative testing per ASTM F2659. The CMEX5 built-in hygrometer measures ambient RH, temperature and dew point conditions. Plug-in reusable Tramex RHIE2 Hygro-i2 Relative Humidity Probe allow for performing ASTM F2170 for relative humidity readings in concrete slabs. The Tramex heavy-duty wood pin-probe measures the moisture content of wood. The Flooring Inspector EZ Kit comes in a Tramex easy-travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard-to-reach places.
Kit Contents
Features
- 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe.
- 8 simple membrane keypad controls.
- Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
- The built-in Hygrometer probe provides Relative Humidity (RH) readings, temperature, dew point temperature and Humidity Ratio.

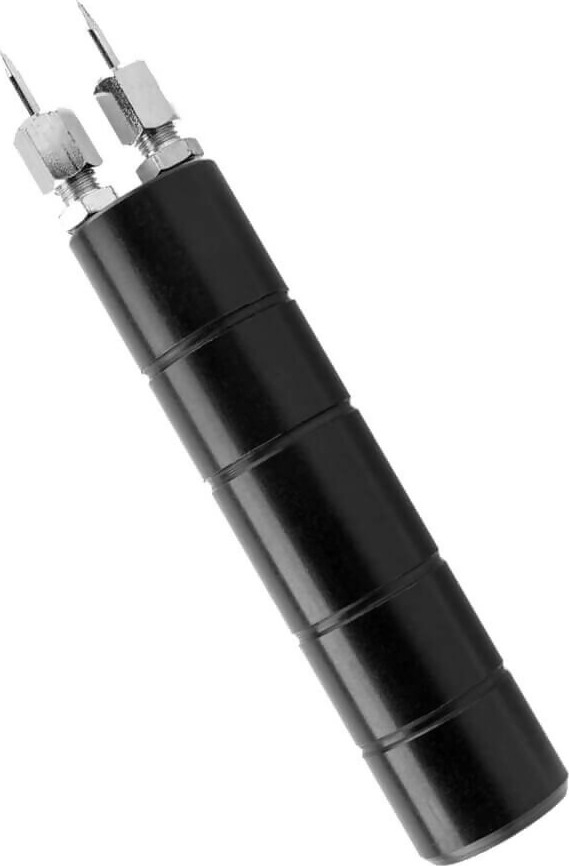

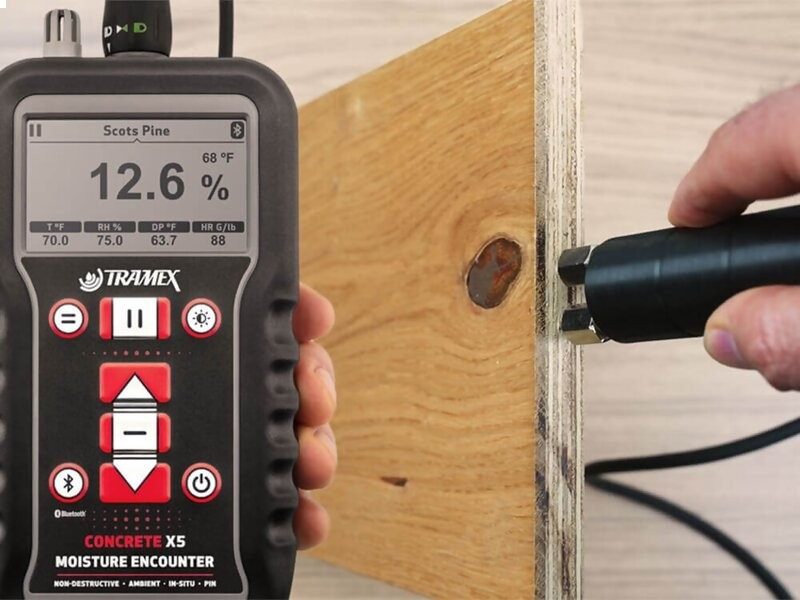

- Wood pin probe mode is automatically selected when the probe is plugged into the Concrete Moisture Encounter X5.

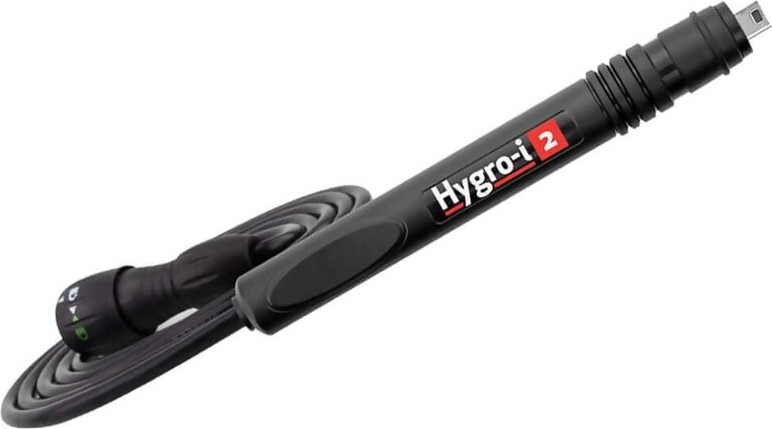

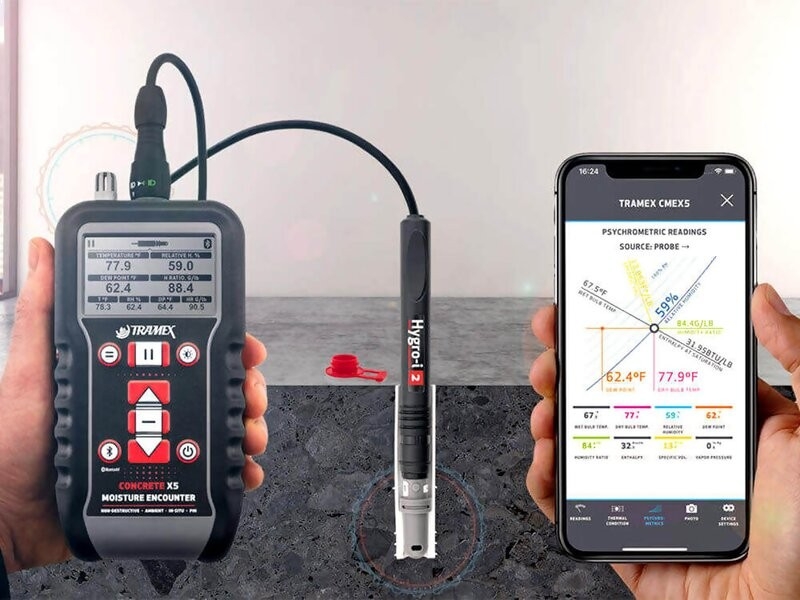

- When the external Relative Humidity (RH) Hygro-i2 probe is connected to the Concrete Moisture Encounter X5, the instrument automatically switches to RH mode. Ambient or In-Situ Relative Humidity readings, probe temperature, dew point temperature and Humidity Ratio are automatically displayed (Hygrometer Mode).
- When the battery requires replacement a LOW BATTERY icon is shown on the display.
Specifications
Kit:
| Size | 13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm) |
| Weight | 3.4lbs (1.55kg) |
| Power | 2 x AALR6 ALKALINE (included) |
Tramex CMEX5 Concrete Moisture Encounter X5:
| Moisture content for Concrete | 0 → 6.9 % |
| Comparative for Gypsum floor screed | 0 → 12 |
| CM Equiv Anhydrite/Concrete | 0→2.7 / 0→ 4.3 |
| Reference scale | 0 → 100 |
| Relative Humidity | 0 → 99% (with optional Hygro-i2 ® probe) |
| Humidity accuracy | 0% → 99%RH +/- 2% @ 25°C / 77°F |
| Moisture content for wood | 5→ 30 % (with optional wood pin probes) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Digital |

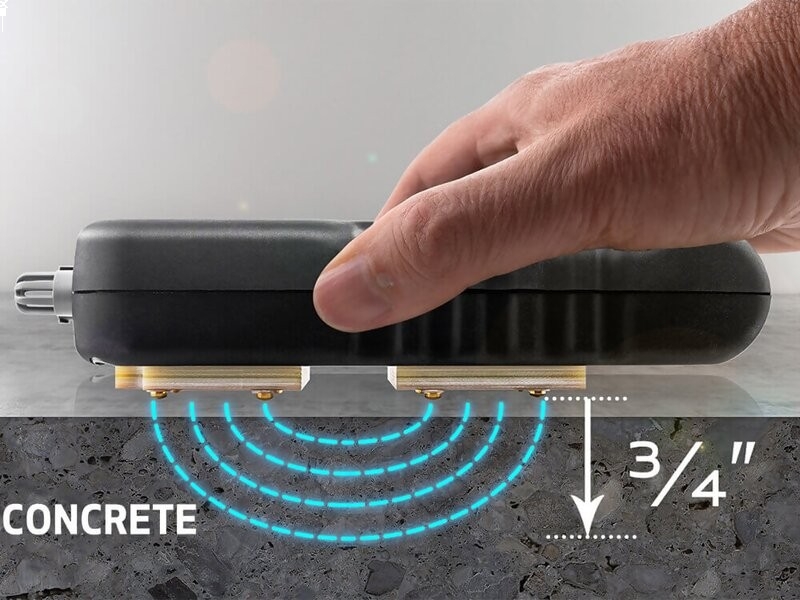

| Depth of penetration in concrete | approx. ¾" (20mm) |
Related Products
Tramex Extension Handle for ME5, CME5 and CMEX5
- The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
- Order Code: E5-HBS
