Tramex FZK5.1 Flooring Inspection EZ Kit

This product has been replaced by the Tramex FTK

Industry: Flooring Inspection, Flooring Installation.

Measuring Range: Depth of penetration (NDT): approx. 3/4 inches (20 mm), Moisture Content for Concrete (NDT): 0 to 6.9 %, Comparative for Gypsum FloorScreed (NDT): 0 to 10, Moisture Content using Pin Probe: 7 to 40%, Relative Humidity (With Hygro-i Probe): 0 to 99%

The Tramex FZK5.1 Flooring Inspection EZ Kit is a compact kit for instant and precise moisture testing of concrete and wood flooring. The Tramex CMEX II digital moisture meter allows the user to non-invasively test concrete per ASTM F2659, and the Hygro-i2 ® Relative Humidity probe for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170. The Tramex heavy-duty wood pin-probe measures the moisture content of wood. The Flooring Inspection EZ Kit comes in a Tramex Easy-travel case.

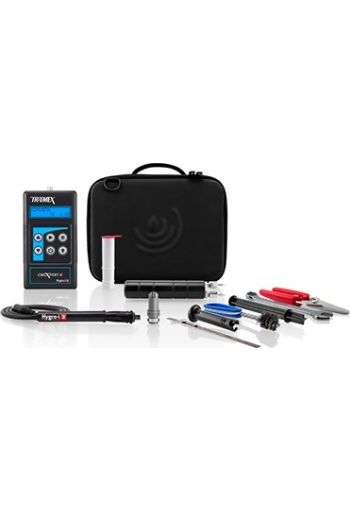

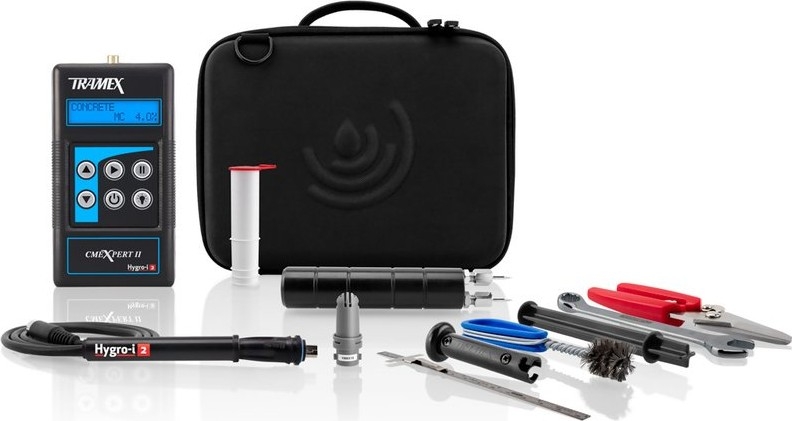

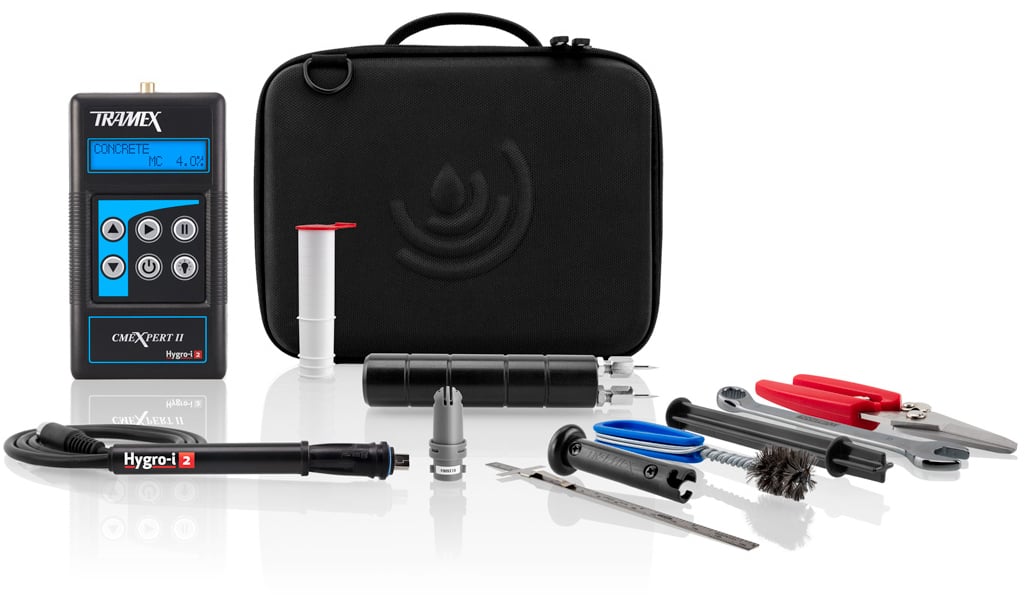

Kit Contents

CMEX II - concrete meter
1 x Hygro-i2 ® Relative Humidity probe
6 x Hole liners

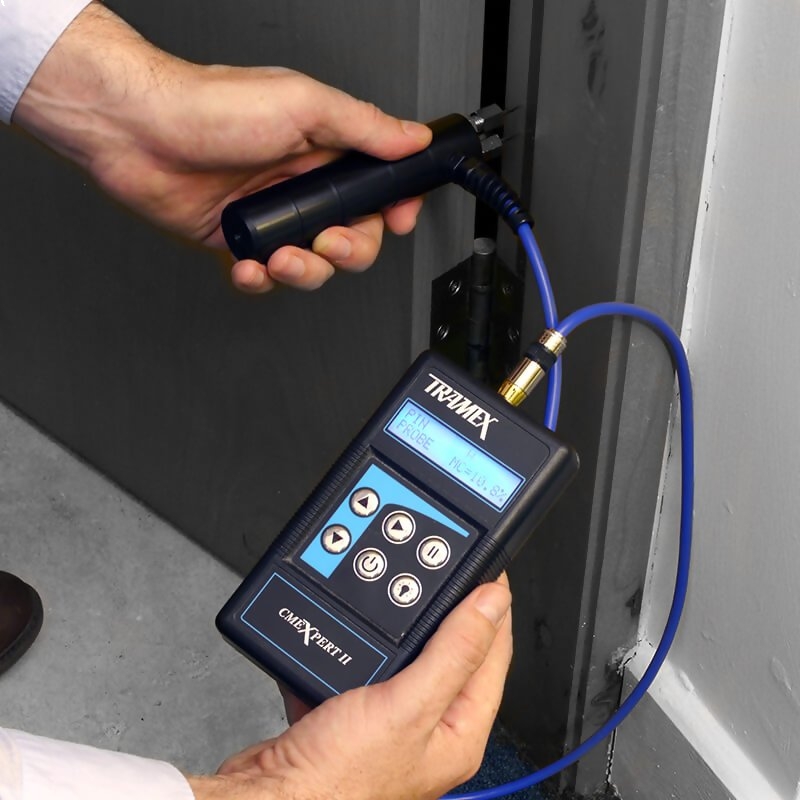

Heavy-duty pin-type wood probe

Features

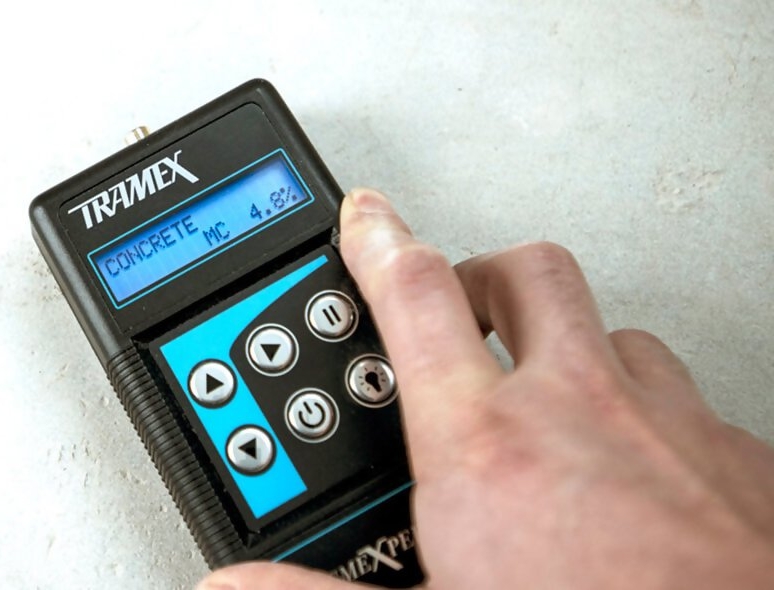

Instant concrete moisture content test from 0 - 6.9% with CMEX II to ASTM F2659.

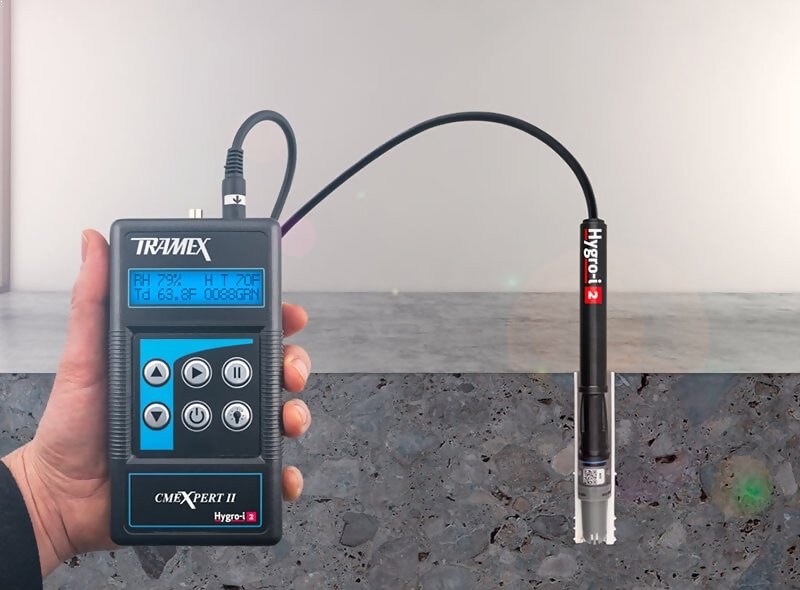

Fastest, most reliable, Hygro-i2 ® Relative Humidity probe for testing to ASTM F2170.
Perform multiple tests simultaneously.
Re-usable Hygro-i2 ® Relative Humidity probes prove to be the lowest cost per ASTM F2170.
Test ambient site conditions of Temperature, RH, Dew Point & Mixing Ratio.
Backlit display for ease of reading in low level lighting.

Specifications

Size	13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight	3.4lbs (1.55kg)
Power	2 x 9 volt PP3
Battery	Included
Depth of penetration in concrete	(NDT*) approx. ¾" (20 mm)
Moisture content for concrete	(NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed	(NDT*) 0 to 10
Reference scale	(NDT*) 0 to 100
Moisture Content in wood using Pin Probe	7 to 40%
Relative Humidity with Hygro-i2 ® probe	0 to 99%
Humidity accuracy	0% to 99%RH +/- 2% @ 25°C / 77°F
