Industry: Water Damage Restoration
Measuring Range:
- Moisture Content of Concrete (NDT): 0 to 6.9 % (moisture by weight)
- Moisture content of wood: Pin-type Probe 7-40%. NDT MEP 5-55%
- Gypsum Scale: 0 to 10 (comparative)
- Reference Scale for Building Materials: 0 to 100 (comparative)
- Relative Humidity: 0 to 99%
The Tramex WDMK5.1 Water Damage Restoration Master Kit is acomplete kit for moisture testing of concrete & wood flooring and numerous other building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex WDMK5.1 features the Tramex MEP moisture meter for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex CMEX2 digital concrete moisture meter allows for testing per ASTM F2659 and the reusable Hygro-i ® probe for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170 (or Hood Method with optional Hood) for relative humidity readings in concrete slabs. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the Hygro-i ® probe. A heavy-duty pin-probe measures Moisture Content in wood. The Water Damage Restoration Inspection Kit comes in a protective heavy-duty carrying case with die-cut foam lining.

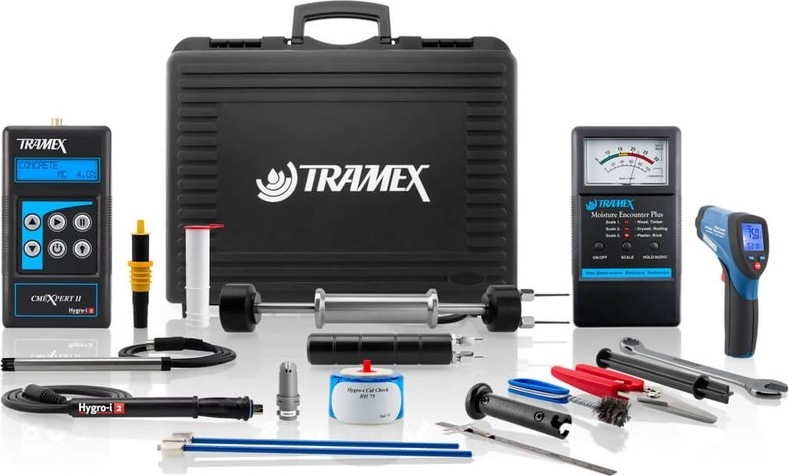

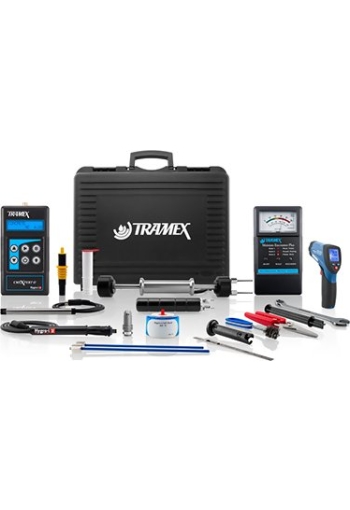

Kit Contents
- MEP - NDT* moisture meter for general building materials.
- CMEX II - concrete moisture and humidity meter.
- 3 x Hygro-i2® probes.
- 8 x Hygro-i2® probe hole liners, 8 x Ambient RH probe hole liners.
- Heavy-duty pin-type wood probe.
- 7" insulated pins.
- Heavy-duty hammer pin-type wood probe.
- Infrared thermometer.
- Calibration Check Salts.
- 1 x Ambient Relative Humidity Probe.
- * NDT - non-destructive test
Features

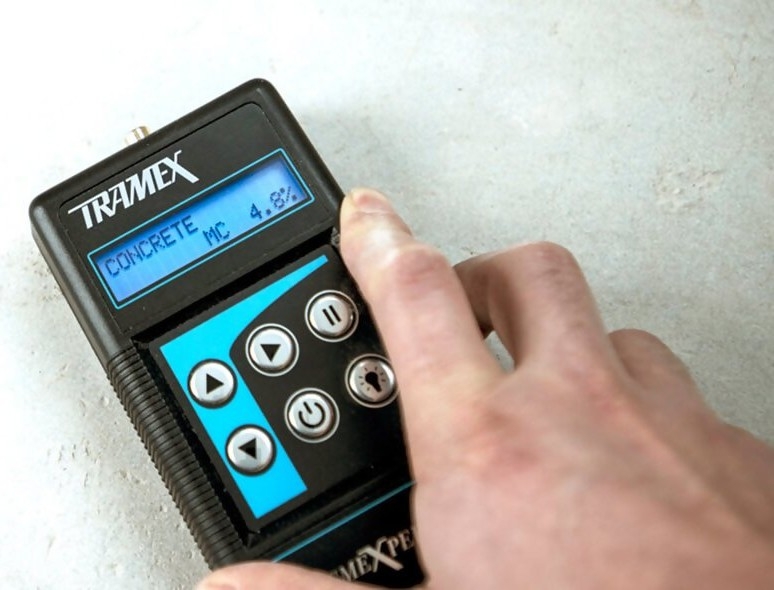

CMEX II
- Measures up to 6.9% Moisture Content in Concrete.
- Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
- Attaches to a relative humidity Hygro-i ® probe for in-situ testing of concrete and ambient conditions.

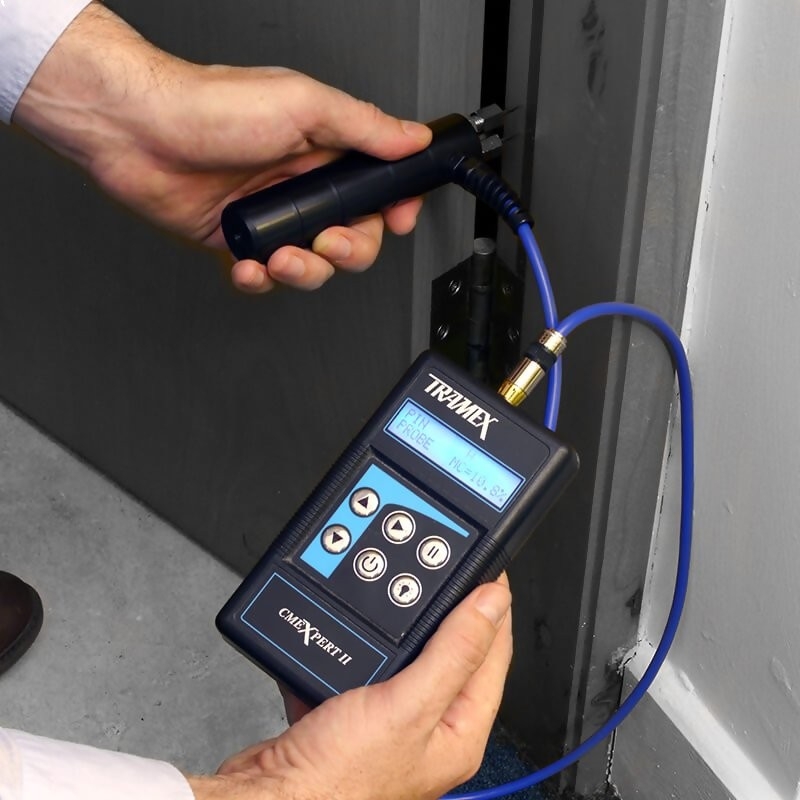

- 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment.

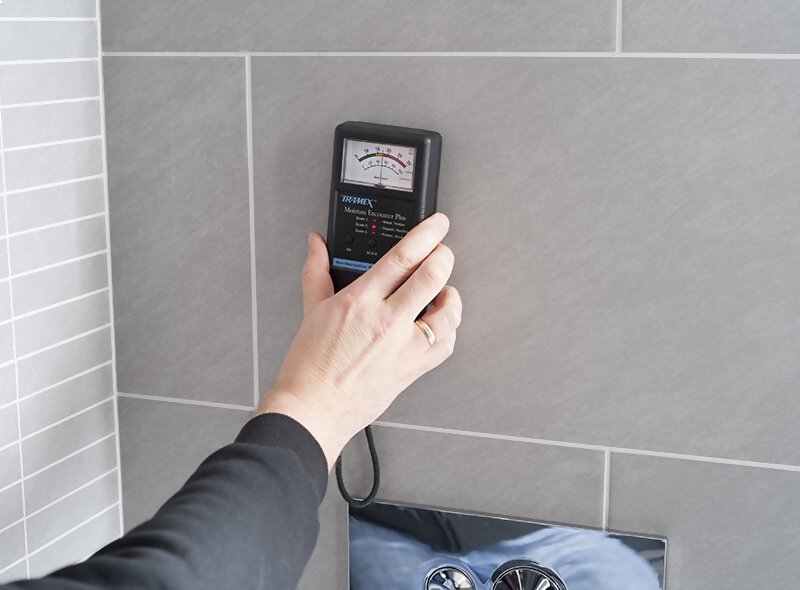

MEP
- Wide range of readings for wood from 5% to 30%
- Deep signal penetration up to 1¾” (30mm) into the materials being tested without the need to damage the surface.
- Three ranges of sensitivity: Wood, Timber / Drywall, Roofing / Plaster, Brick – making it ideal for testing various building materials.
Specifications
| Size | 16.9" x 13.6" x 5.1" (430mm x 345mm x 130mm) |
| Weight | 7.25lbs (3.3kg) |
| Power | 3 x 9 volt PP3 |
| Battery | Included |
| Measuring range - MEP | |
| Depth of penetration | (NDT*) 1¼" (30mm) (in wood, drywall) |
| Moisture content for Wood | (NDT*) 5 to 30 % |
| Reference scale for building materials | 0 to 100 |
| Measuring range - CMEX II | |
| Depth of penetration in concrete | (NDT*) approx. ¾" (20 mm) |
| Moisture content for Concrete | (NDT*) 0 to 6.9 % |
| Comparative for Gypsum floor screed | (NDT*) 0 to 10 |
| Reference scale | (NDT*) 0 to 100 |
| Relative Humidity (RH probe) | 0 to 99% |
| Moisture content for wood (with pin probes) | 7 to 40 % |
| Humidity accuracy | 0% to 99%RH +/- 2% @ 25°C / 77°F |
* NDT - non-destructive test
