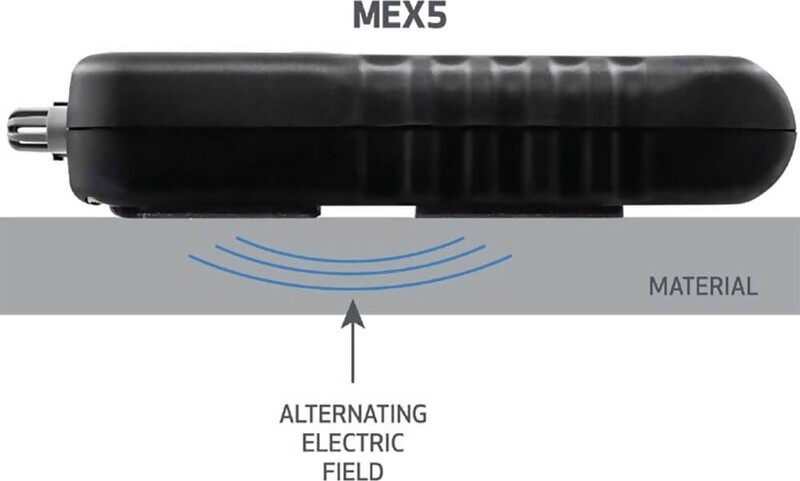

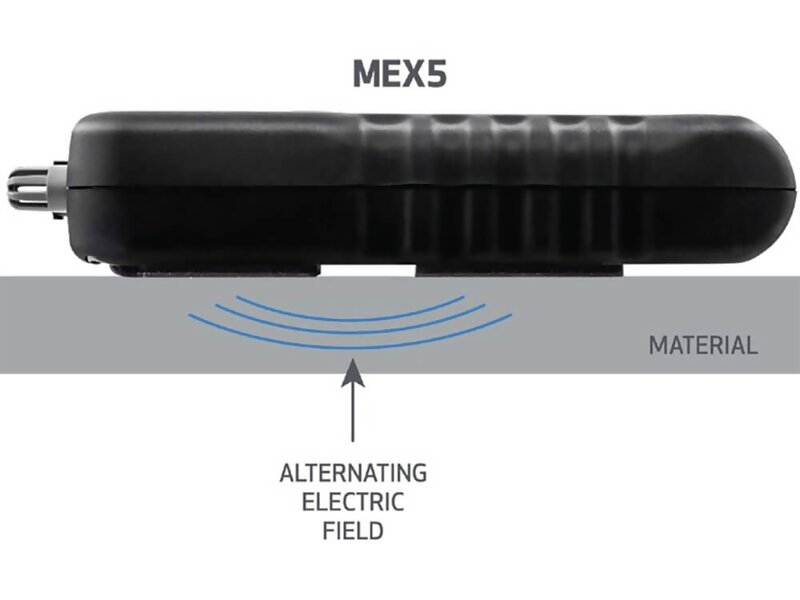

NDT - Non destructive testing

---

Built-in hygrometer and Infrared Surface Thermometer

---

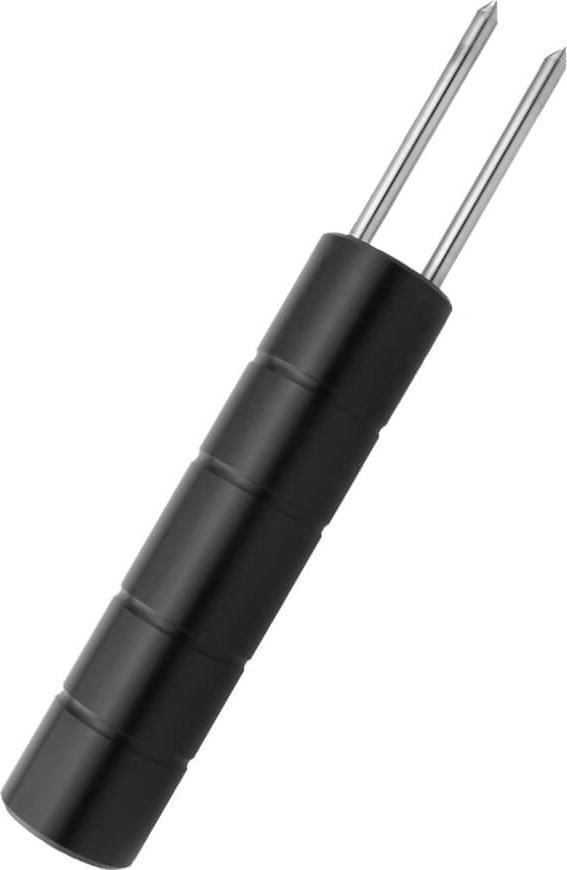

Pin Probe (optional plug-in probe)

---

The Tramex BSITK Building Survey Inspection Tech Kit is a complete moisture and humidity testing kit featuring the multifunctional Tramex MEX5 Moisture Encounter and Humidity Meter allowing for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing.

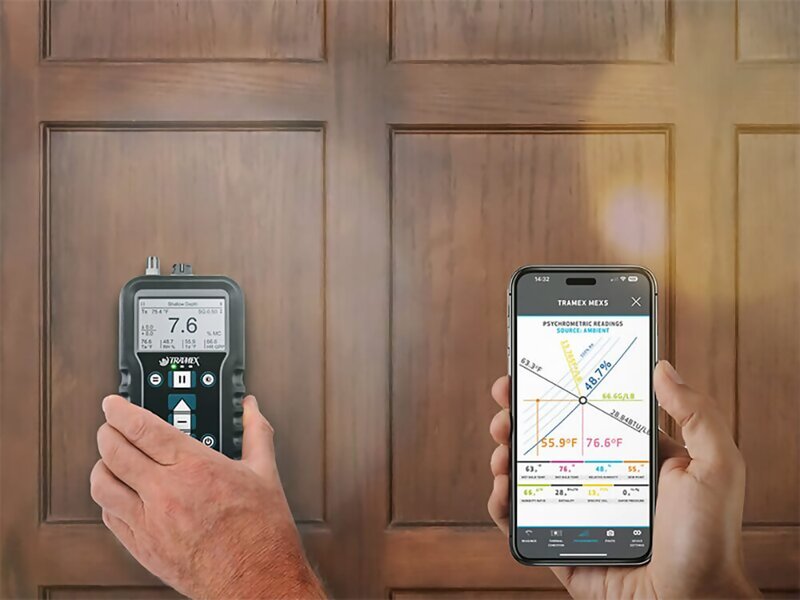

The Tramex MEX5 Moisture Encounter and Humidity Meter has a built-in hygrometer and infrared surface thermometer for testing ambient relative humidity, temperature and dew point, and surface temperature. These can be used to identify detrimental condensation conditions conducive to microbial mold growth can also be identified. The heavyduty handheld pin-probe measures moisture content in wood and drywall, and WME readings for other materials.

The Tramex BSITK Building Survey Inspector Tech Kit comes with a protective easy-travel case.

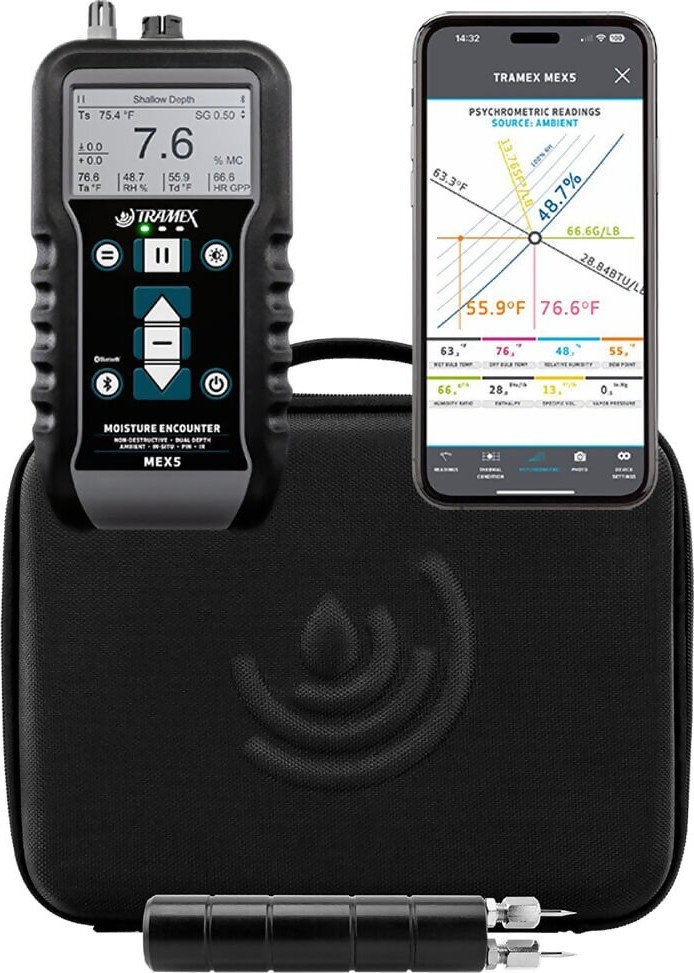

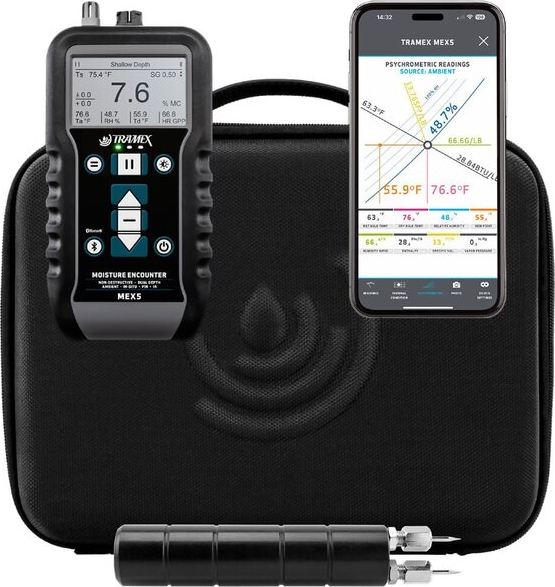

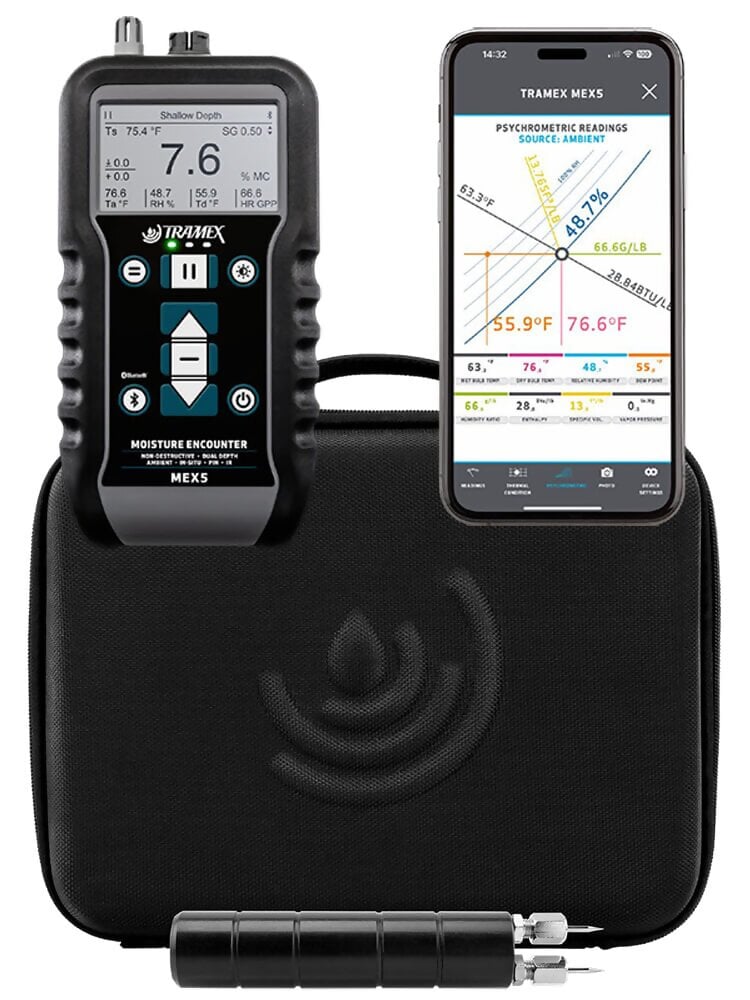

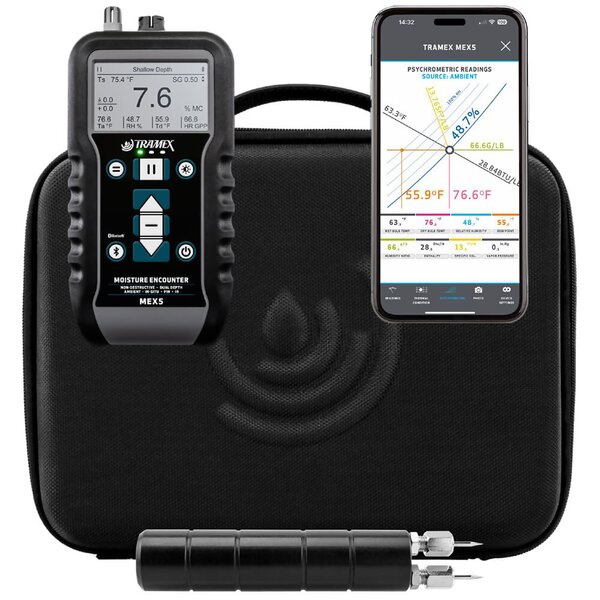

Kit Contents

Tramex MEX5 Moisture Encounter and Humidity Meter Tramex HH14TP30-B Heavy-duty pin-type wood probe Free App available for Android and iOS Tramex ALLBAG Operating Instructions One (1) year warranty

Features

NDT - Non destructive testing

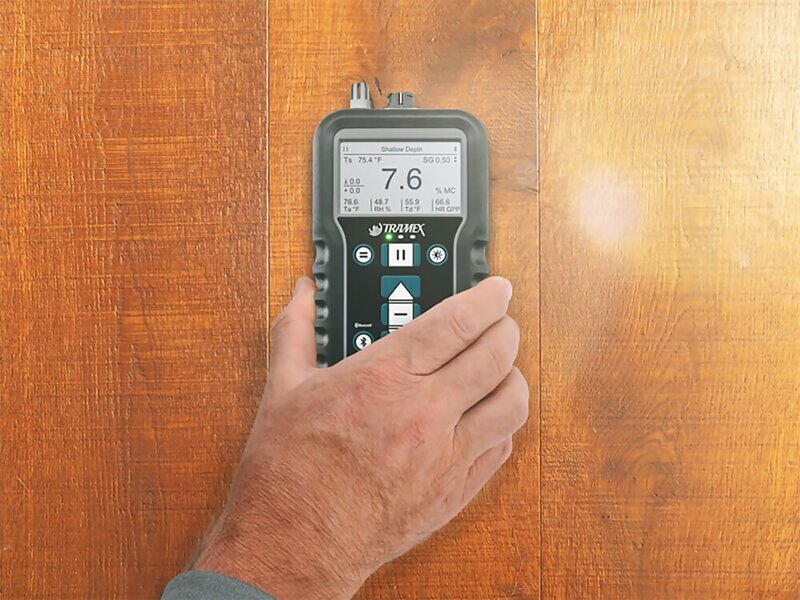

• %MC dual depth measurement of wood

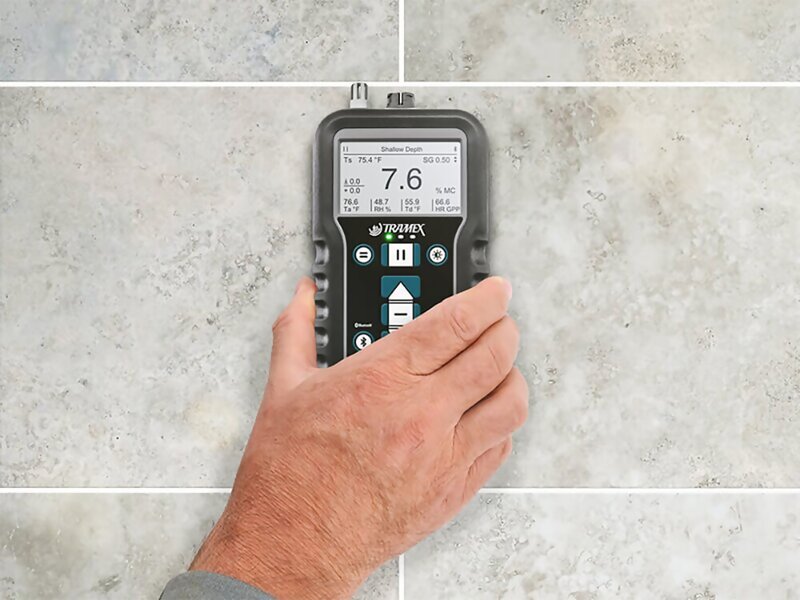

• Comparative dual depth of drywall, roofing, plaster, tile and masonry
• Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
• LED indicator Low/Med/High for all NDT scales
• Built-in Hygrometer readings on permanent display
• Built-in Surface Temperature Infrared Thermometer
• Adjustable Specific Gravity for NDT wood readings
• Baseline reference reading set point adjuster to compare to known dry / drying goal reading

Built-in hygrometer and Infrared Surface Thermometer

• Psychrometric evaluations of Ambient RH, Temp, Dew Point Temp, Humidity Ratio (GPP, g/kg)
• Sufrace Temperature
• Delta Temperature value
• Enthalpy readings
• Emissivity adjustment for surface temperature correction

Pin Probe (optional plug-in probe)

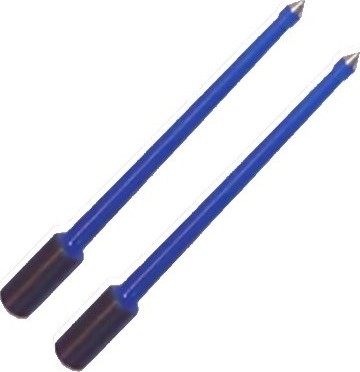

• Variety of external pin probes and electrodes can be used
• %MC wood, pre-set international standards / access to various preset wood species
• WME readings
• Drywall %MC
• Auto calibration check
• Temperature correction of %MC in wood
• EMC Expected Moisture Content indication based on ambient conditions and wood selection

Uses

• Locating moisture-related problems and relative humidity issues within and behind a variety of building materials in the building envelope.
• Mapping the extent of moisture damage caused to buildings.
• Monitoring progressive drying conditions in the drying process of building materials and surfaces.
• Dual-Depth penetration allows for comparison of surface and core moisture and elimination of substrate influence on the testing of coverings.

Specifications

Size	13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight	3.4lbs (1.55kg)
Power	2 x AALR6 ALKALINE (included)

Range

NDT Moisture content for Wood	0 - 30% MC
NDT Comparative for Building Materials	0 - 100
Pin % MC Wood	6 - approx 50% MC
Pin % MC Drywall	0 - 8.5% MC
Relative Humidity	0 - 99%

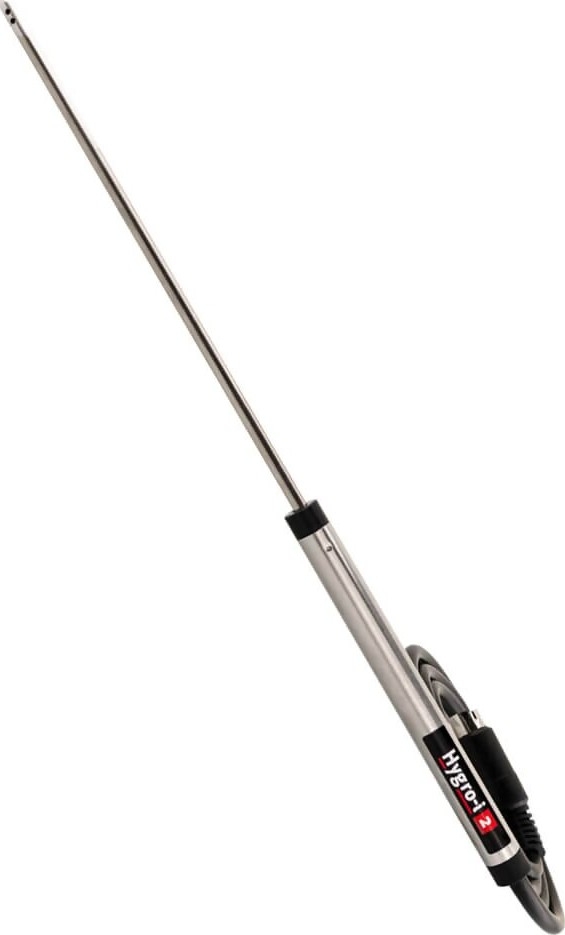

With optional Hygro-i2 ® Probe	Humidity accuracy: 0% - 99%RH +/- 2% @ 25°C / 77°F
