Tramex BSMK5.1 Building Survey Master Kit

See More Tramex Moisture Meters

This product has been replaced by the Tramex BSMK Kit

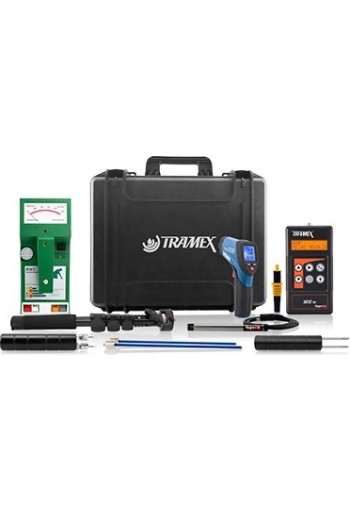

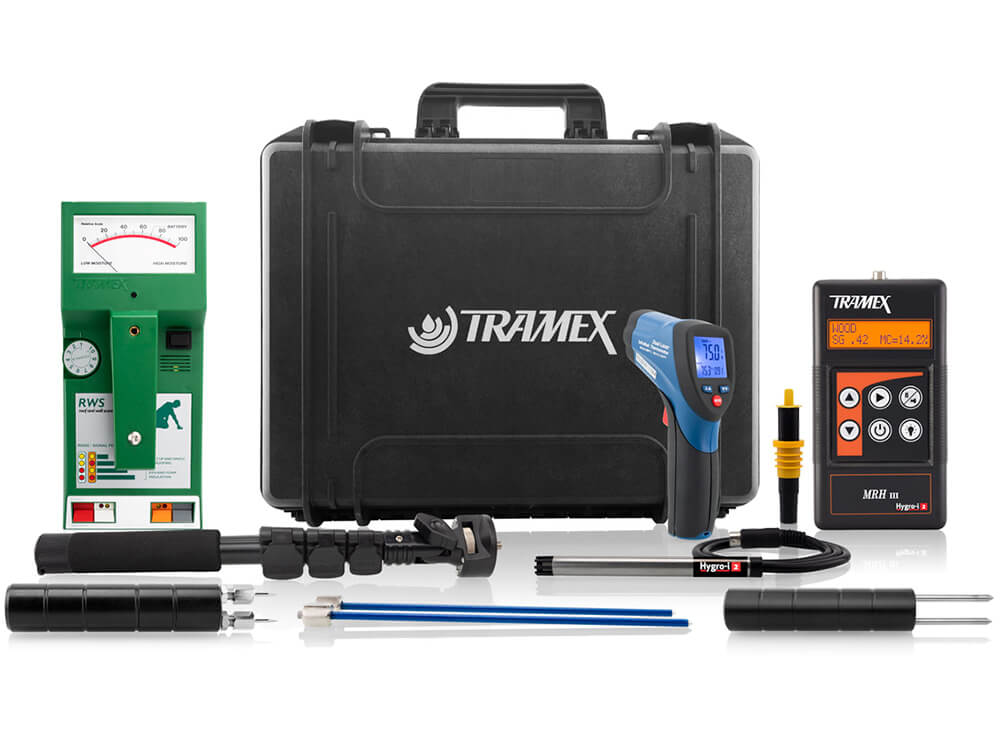

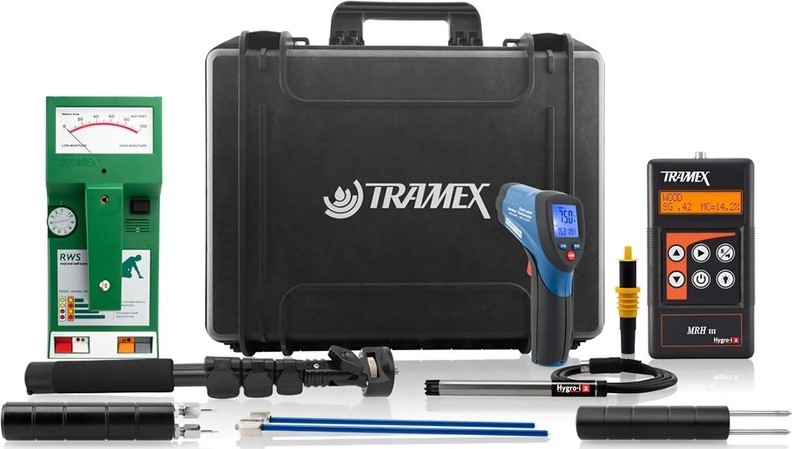

A complete kit featuring the RWS Roof & Wall Scanner for instant, non-destructive evaluation of moisture conditions deep within wall and roofing systems

The Building Survey Master Kit features the multifunctional Tramex MRH3 digital moisture meter allowing for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing

A complete kit featuring the Tramex RWS Roof Moisture Meter and Wet Wall Scanner for instant, non-destructive evaluation of moisture conditions deep within wall and roofing systems. The Building Survey Master Kit features the multifunctional Tramex MRH III Moisture and Humidity Meter allowing for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing. The MRH III and reusable Ambient Relative Humidity Hygro-i2 Short Probe allow for testing relative humidity, temperature and dew point in the environment. When used in conjunction with the infrared surface thermome- ter, detrimental condensation conditions conducive to microbial growth can also be identified. The heavy-duty pin-probes measure moisture content in wood, and the insulated 7.8” pins allow for deep wall cavity probing. Concrete slab relative humidity testing to ASTM F2170 can also be performed with reusable relative humidity Hygro-i2 probes and hole liners(optional).

line
Kit Contents
line

line
Specifications
line

Kit:

Size	19.2" x 14.9" x 5.7" (487mm x 380mm x 145mm)
Weight	9.9lbs (4.51kg)
Power	3 x 9 volt PP3 Batteries (included)

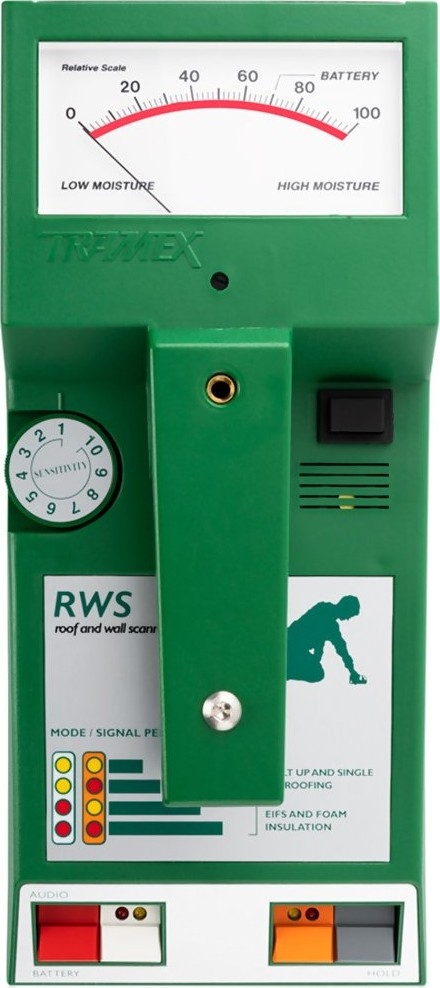

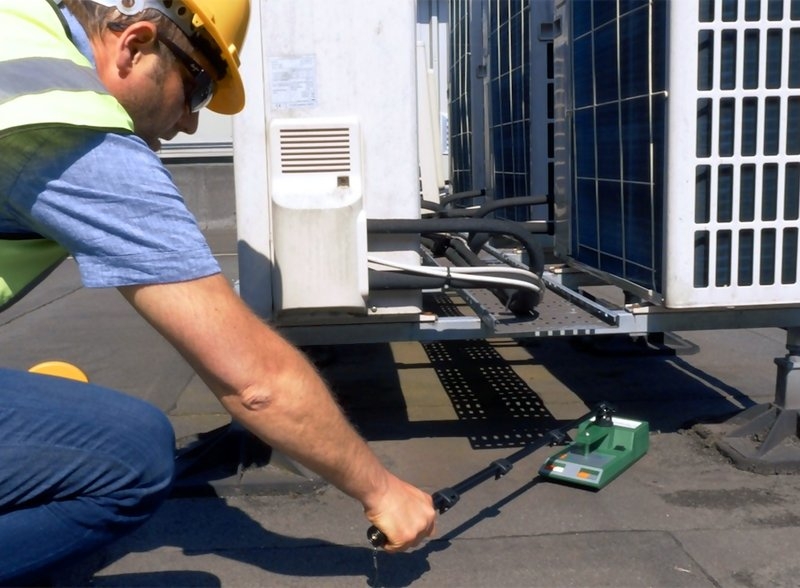

Tramex RWS Roof Moisture Meter and Wet Wall Scanner

Construction	ABS Body Power: 9 volt PP3
Battery	Included
Display	Analog Depth of penetration: 4" (100mm)
Sensitivity Four Ranges	Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity
Limitations	Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes

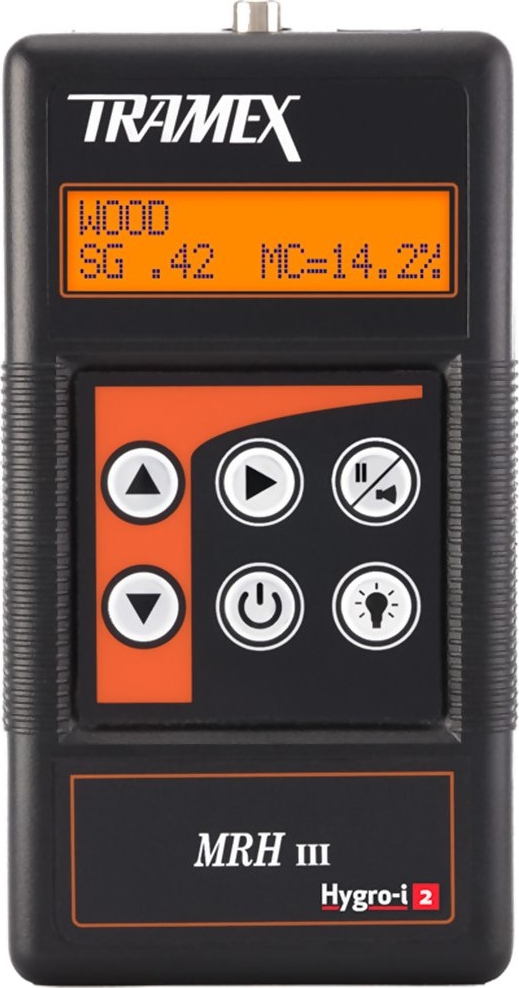

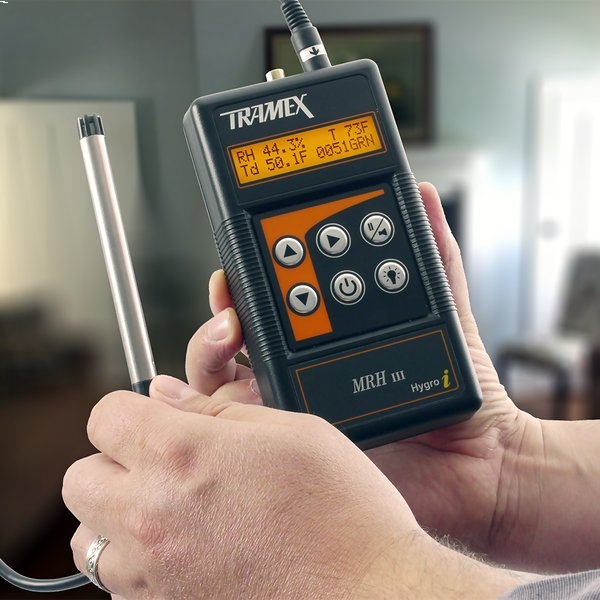

Tramex MRH III Moisture and Humidity Meter

Construction	ABS
Body Power	9 volt PP3
Battery	Included
Display	Digital / Backlit Depth of penetration: up to 1¼"(30mm)(In wood, drywall)
Reference scale for building materials	0 to 100
Relative Humidity (with optional Hygro-i2 ® probe)	0 to 99%
Wood Non-invasive Mode	5 to 55% MC (at SG of 0.3)
Wood Invasive Mode (with optional wood pin probes)	7 to 40%MC

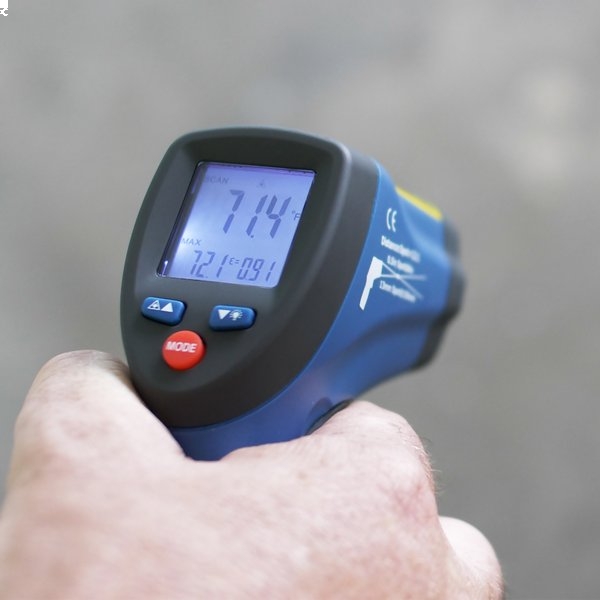

Tramex IRT2 Infrared Surface Thermometer

Temperature range	-58°F ~ 1202°F (-50 to 650 °C)
Distance to Spot ratio	D:S = 12:1
Display resolution	0.1 °F(0.1°C) <1000 1°C >1000
Accuracy for targets	Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%
Repeatability	-58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)
Response time	150ms
Spectral response	8~14um
Emissivity	Digitally adjustable from 0.10 to 1.0
Over range indication	LCD will show "----"
Polarity: Automatic (no indication for positive polarity)	Minus (-) sign for negative polarity
Diode laser output	<1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.	32 to 122°F ( 0 to 50°C)
Storage temp.	14 to 140°F (–10 to 60°C)
Relative humidity	10%~90%RH operating, <80%RH storage
Power supply	9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety	"CE" Comply with EMC
