Tramex EIK5.1 External Insulation Finishing Systems Inspection (EIFS) Kit

See More Tramex Moisture Meters

Tramex EIK5.1 Inspection Kit for instant, non-destructive evaluation of moisture conditions deep within Exterior Insulation and Finishing Systems (EIFS)

Non-destructive, Deep Penetration Moisture Detection

7" pins for Deep Wall Probing using attachable Pin-Type Probe

Measures 0-99% Ambient Relative Humidity Conditions

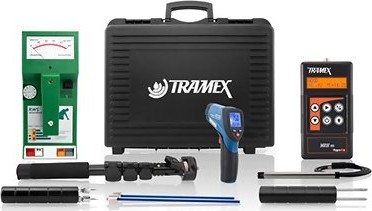

The Tramex EIK5.1 Exterior Insulation Finishing Systems (EIFS) Inspection Kit is a complete kit featuring the Tramex RWS Roof and Wall Scanner (a combination of the Wet Wall Detector and the Leak Seeker) for instant, non-destructive evaluation of moisture conditions deep within Exterior Insulation and Finishing Systems (EIFS). The EIFS Inspection Kit includes the Tramex MRHIII moisture and humidity meter, a pin-type resistance probe and a Hygro-i ® relative humidity probe to provide the ideal solution for measurement of ambient relative humidity, temperature and dew point, determination of moisture conditions in a variety of wall materials, sheathing and wood studding of EIFS systems, as well as in-depth readings of the moisture conditions of the substrate

line
Photo Gallery
line

line
Features
line

Non-destructive, Deep Penetration Moisture Detection.
7" pins for Deep Wall Probing using attachable Pin-Type Probe.
Measures 0-99% Ambient Relative Humidity Conditions.
Temperature, Dew Point & Grains Per Pound readings.
Measures 5 - 55% Moisture Content in Wood in non-invasive mode.
Measures 7 - 40% Moisture Content in Wood using pin-type wood probe.
Instant Surface Temperature Measurement.
Clear, easy to read dial (RWS).
Backlit display for poor lighting conditions (MRH3).

line
Kit Contents
line

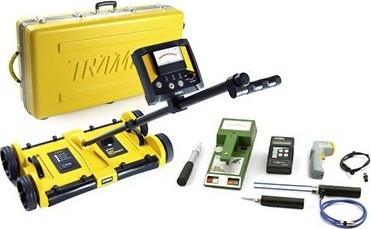

RWS - Roof and Wall Scanner + telescopic handle (for use on roofs).

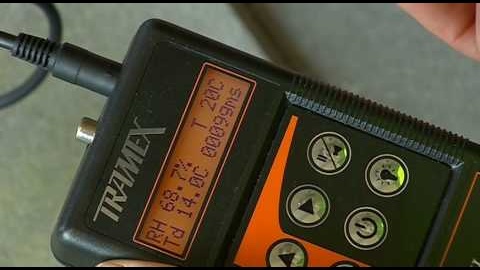

MRH III - Moisture and Humidity meter.
Infrared thermometer.
Heavy-duty pin-type wood probe.

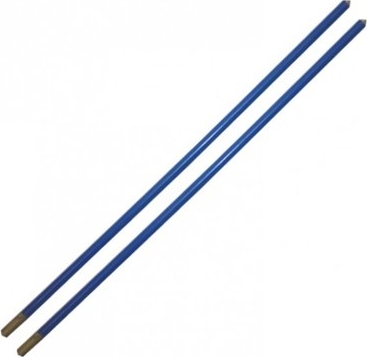

7” insulated pins for in-depth penetration using pin probe.
Hole Punch - for creating pilot holes for long pin probes in EIFS and Roofing Systems.
Relative Humidity probe.

line

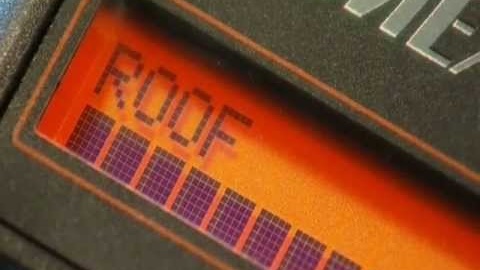

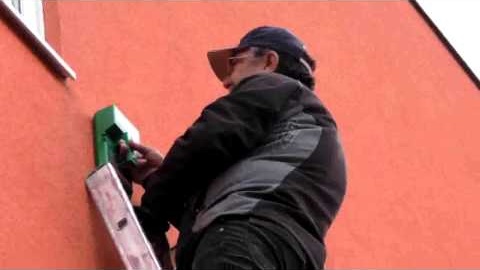

Video
line

line
Specifications
line

Size	19.2" x 14.9" x 5.7" (487mm x 380mm x 145mm)
Weight	9.9lbs (4.51kg)
Power	3 x 9 volt PP3
Battery	Included
Measuring range - RWS
Depth of penetration	(NDT* ) 4" (100mm)
Reference scale for building materials	0 to 100
Measuring range - MRH III
Reference scale for building materials	(NDT*) 0 to 100
Wood Non-invasive Mode	5 to 55%MC (at SG of 0.3)
Wood Invasive Mode	7 to 40%MC
Relative Humidity (RH probe )	0 to 99%

*NDT - Non-destructive Test

line
Related Products
line

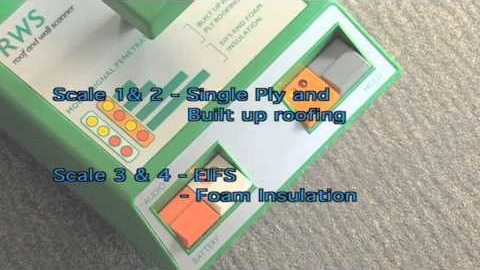

Tramex RWS
Roof and Wall Scanner

The Tramex RWS Roof and Wall Scanner is a multi-mode non-invasive impedance scanner designed for the instant, precise and non-destructive evaluation of moisture conditions and leak tracing in roofing per ASTM D7954 and in wall systems of the building envelope

line

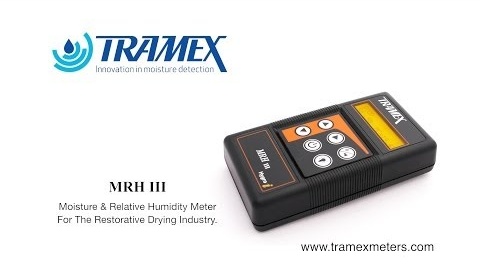

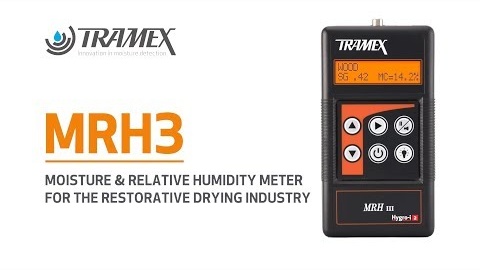

Tramex MRH III
Moisture & Humidity Meter

The Tramex MRH III Moisture and Humidity Meter is a hand-held digital moisture meter calibrated for most building materials. It also attaches to an optional plug-in Tramex Hygro-i ® relative humidity probe and heavy-duty pin type electrodes.

line

Tramex IRT2
Infrared Surface Thermometer

This hand held, infrared surface thermometer features a laser target pointer to gain instant readings on almost any surface from a distance.

line

Tramex HPW
Hole Punch

A complete kit for moisture testing of concrete & wood flooring and numerous other building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing
