Bluetooth BLE enabled for use with mobile devices
With built-in Ambient RH + Temperature sensor; Plug-in RH + Temperature Sensor (optional); Contact Temperature Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.

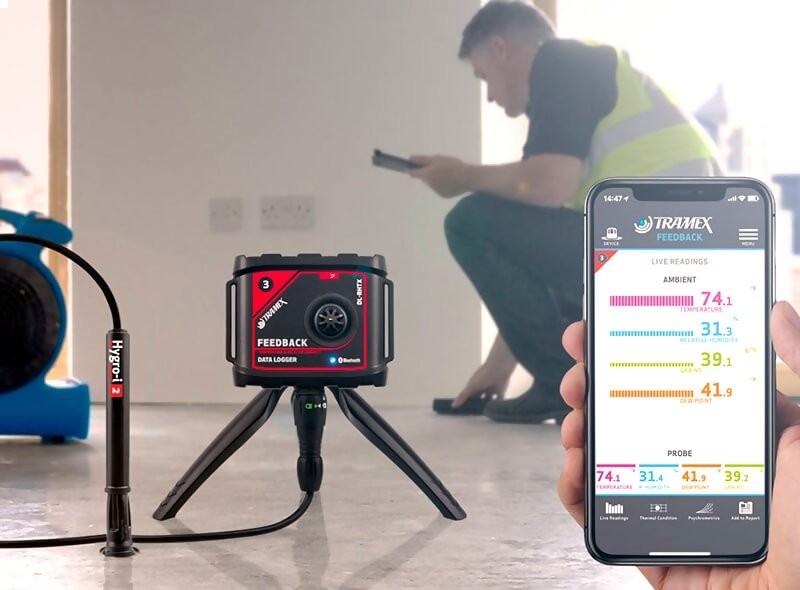

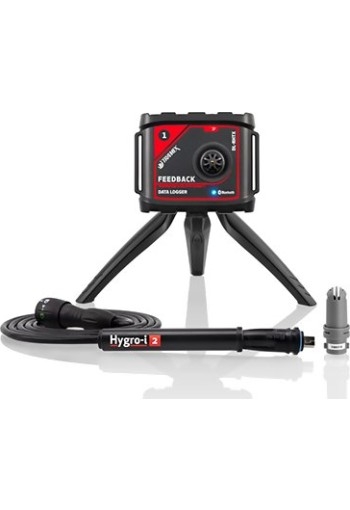

The Tramex FBSK5.1 Feedback Datalogger Starter Kit has been designed and developed by Tramex for professionals who depend on accurate, reliable readings using the very best, state of the art technology and performing ASTM F2170. The Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualize Live Readings, Thermal Conditions and Psychrometric Charts, as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Feedback Data Logger App and a compatible iOS or Android mobile device.

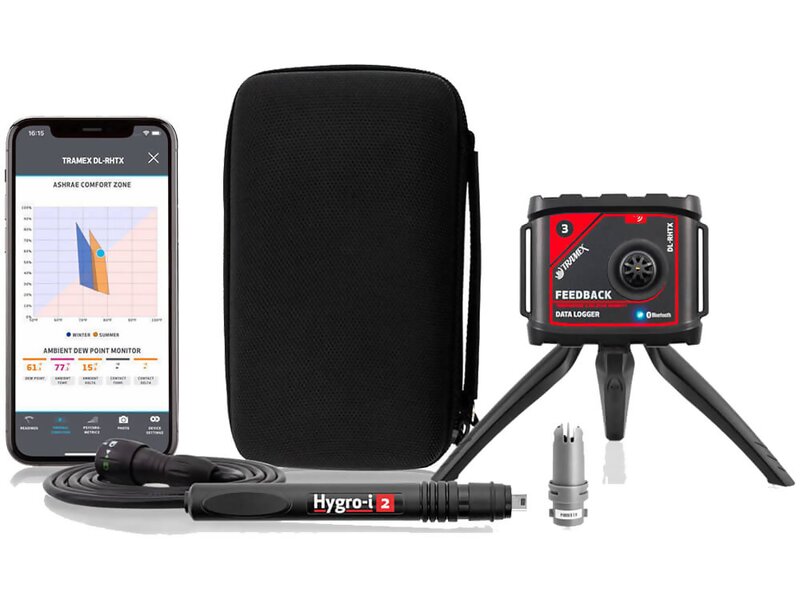

Kit Contents
Features
- Bluetooth BLE enabled for use with mobile devices.
- Up to 100,000 data point entries possible.
- Instant set up and start modes. Used to perform ASTM F2170.
- Ambient and In-situ RH and temperature logging
- Intuitive and instructive APP interface.
- Adjustable interactive chart, spreadsheet, report and easy-export functions.
- Connectivity up to 165ft (50 meters) for highly accessible data downloads
Specifications
With built-in Ambient RH + Temperature sensor; Plug-in RH + Temperature Sensor (optional); Contact Temperature Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.
| Size | 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm) |
| Weight | 3.53oz (100g) |
| Construction | ABS enclosure |
| Power | 1 x AA type battery 1.5 Volt |
| Memory | 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate | Logger interval adjustable between 5 minutes and 1 hour |
| Transmission Range | Up to 165ft (50m) line-of-sight |
| Bluetooth | BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising |
| Included | Wall Mounting and Tripod Stand |
| Supported measurements |
| Ambient Relative Humidity | Temperature, Dew point, Grains per pound |
| In Situ Relative Humidity | Temperature, Dew point, Grains per pound (with optional plug-in RH Probe) |
| Contact Temperature | Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe) |
| Psychrometric chart showing Relative Humidity | Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point |
| Relative humidity sensor specifications |
| Range | 0 to 100%RH |
| Accuracy | ±1.5%RH |
| Range 0% to 80% | RH ±2.0%RH |
| Range 80% to 99% | RH (@ 77ºF (25ºC)) |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
| Temperature sensor specifications |
| Range | -40ºF to 257ºF (-40ºC to 125ºC) |
| Accuracy | ±0.1ºF Range 68ºF to 140ºF (±0.1 °C Range 20°C to 60°C) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.04ºF (0.03ºC) per year |
| Contact temperature probe |
| Units | ºF (ºC) |
| Temperature Range | -20°F to +175°F (-30°C to +80°C) |
| Accuracy | ±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C) |
| Resolution | 0.1% over the complete range |
| Battery |
| Power supply | 1 x AA type battery 1.5 Volt |
| Battery life | Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied |
