Tramex FMK Flooring Master Kit
Industry: Flooring Inspection, Flooring Installation.

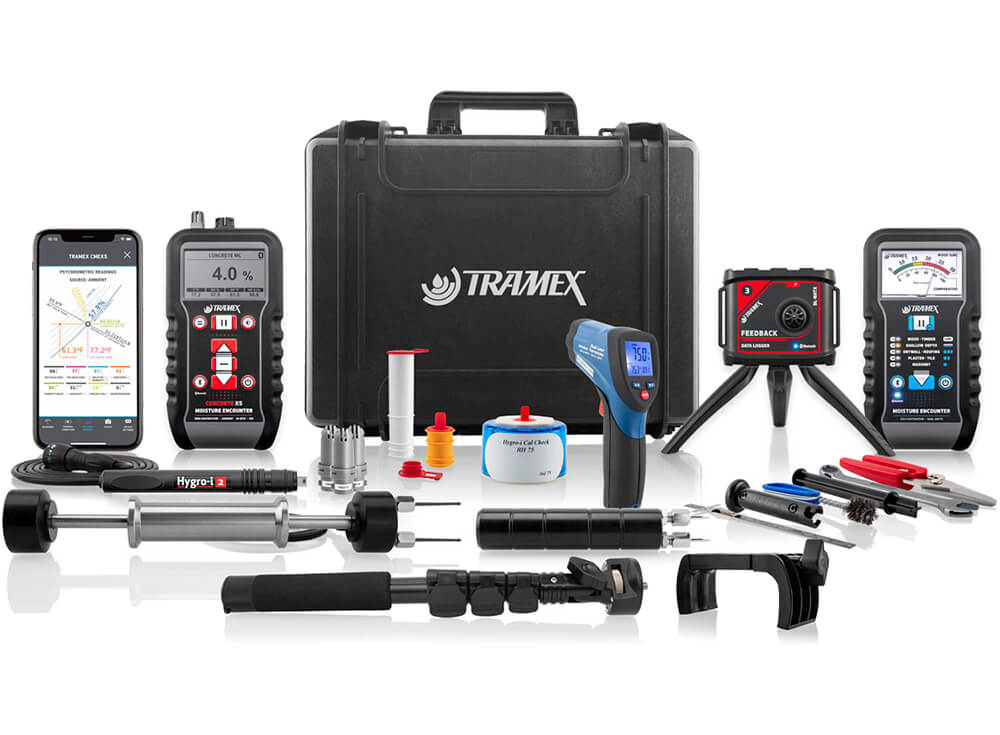

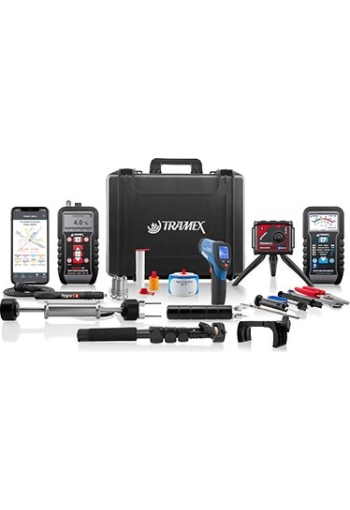

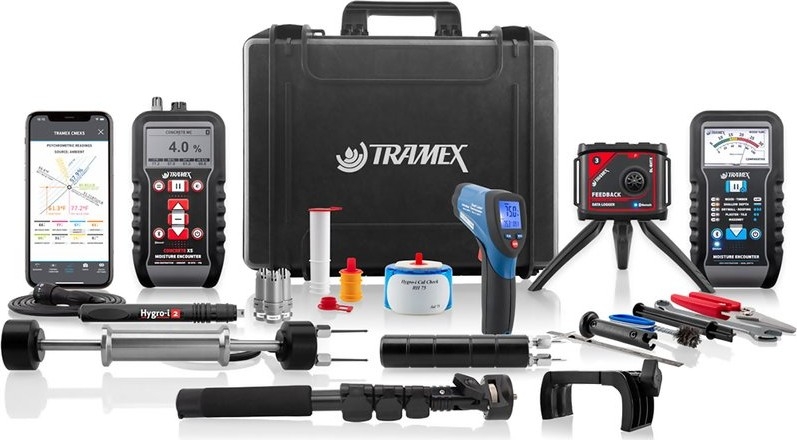

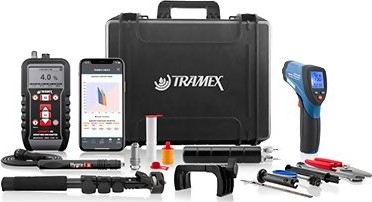

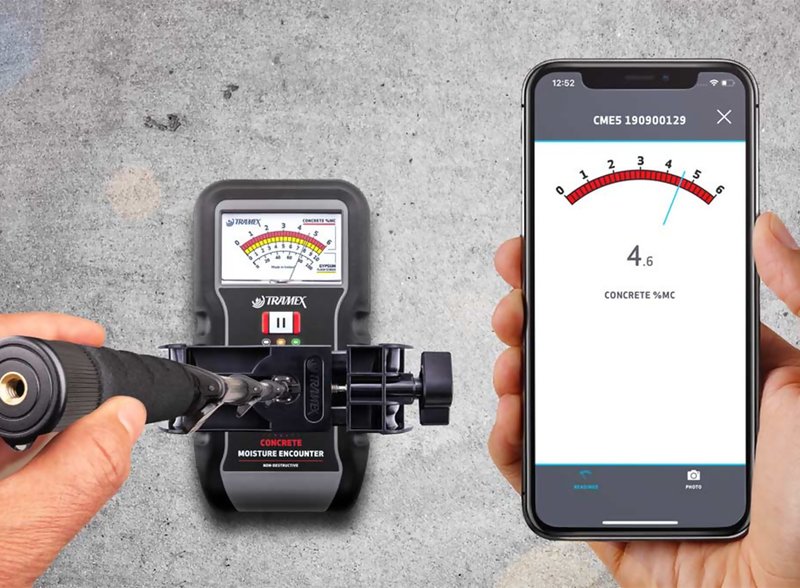

The TrameX FMK Flooring Master Kit is the ultimate kit for pre & post-application moisture testing of concrete slabs, wood and various other floor covering materials. Featuring the Tramex CMEX5 digital concrete moisture meter for non-destructive quantitative and comparative testing of concrete and ambient conditions. The Tramex CMEX5 Concrete Moisture Encounter X5 incorporates plug-in heavy-duty pin-probes measures Moisture Content in wood or WME in other building materials. The CMEX5 also incorporates plug-in RH probes for in-situ testing of concrete. These probes can be used with the Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in situ and in the environment. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Tramex ME5 Moisture Encounter Non-Destructive Moisture Meter allows for moisture testing of wood and includes a shallow-depth feature to eliminate the effect of the substrate when needed. The Flooring Master Kit comes with an extension handle in a heavy duty Tramex travel case. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
Kit Contents
Specifications
| Size | 20.5" x 18.9" x 5.9" (52cm x 48cm x 15cm) |
| Weight | 13.2 lbs (6kg) |
| Power | 5 x AA batteries, 1 x 9 volt PP3 battery |

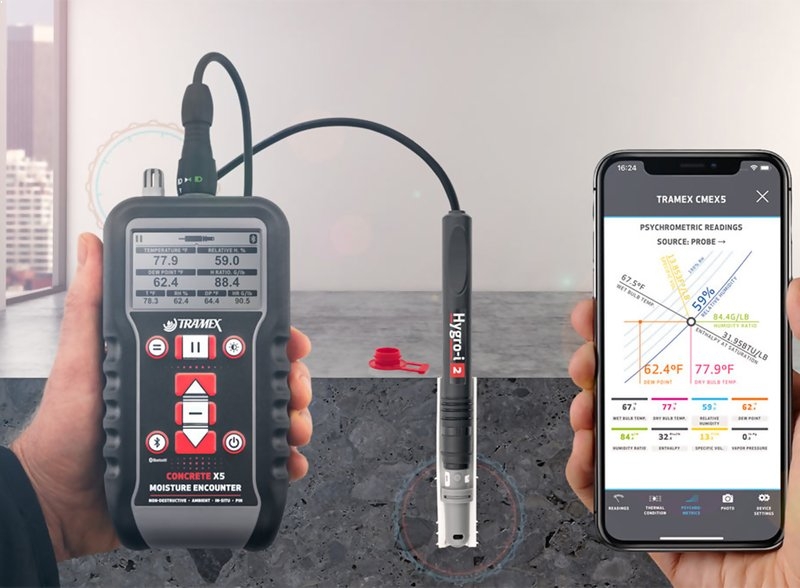

Tramex CMEX5 Concrete Moisture Encounter X5
| Moisture content for Concrete | 0 → 6.9 % |
| Comparative for Gypsum floor screed | 0 → 12 |
| CM Equiv Anhydrite/Concrete | 0→2.7 / 0→ 4.3 |
| Reference scale | 0 → 100 |
| Relative Humidity | 0 → 99% (with optional Hygro-i2 ® probe) |
| Humidity accuracy | 0% → 99%RH ± 2% @ 25°C / 77°F |
| Moisture content for wood | 5→ 30 % (with optional wood pin probes) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Digital |
| Depth of penetration in concrete | approx. ¾" (20mm) |

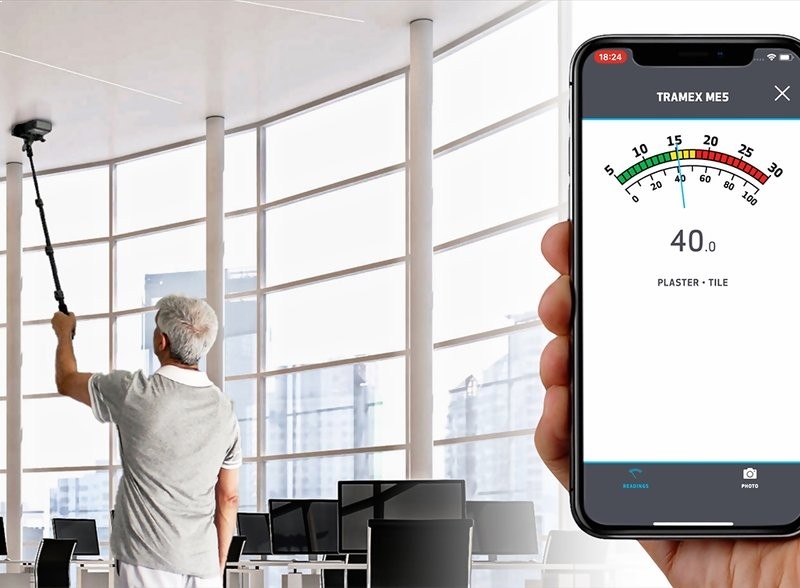

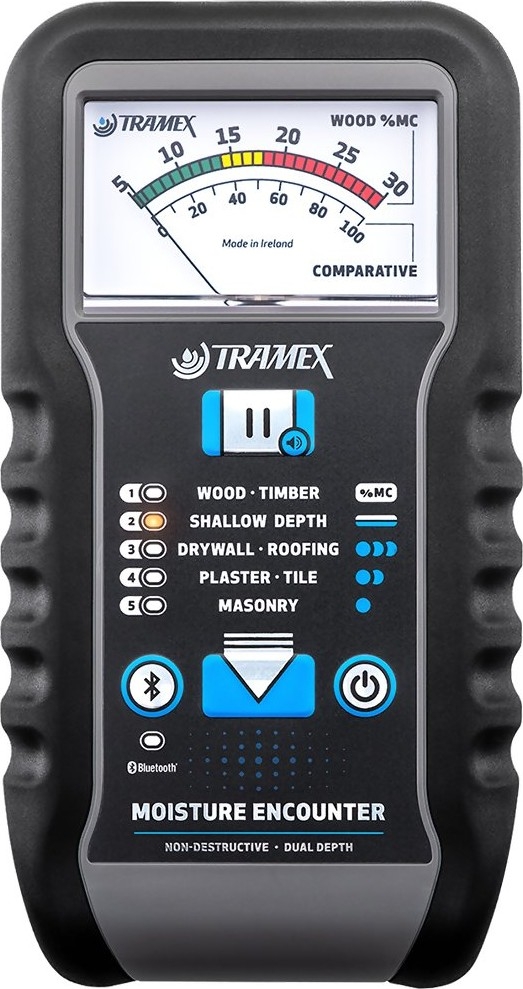

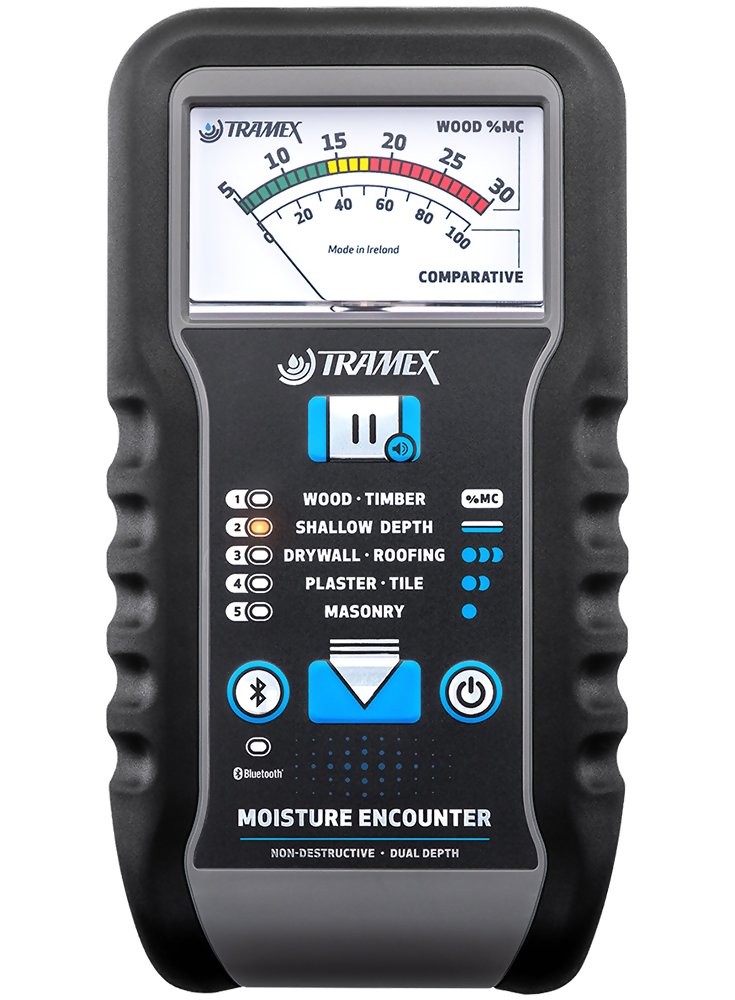

Tramex ME5 Moisture Encounter Non-Destructive Moisture Meter
| Size | 6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm) |
| Weight | 9.5oz (270g) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Analogue |
| Depth of penetration | Shallow signal: up to 0.40" (10mm) |
| Deep signal | up to 1.25" (30mm) |
| Wood Moisture Content | 5 to 30% |
| Reference scale for building materials | 0 to 100 |

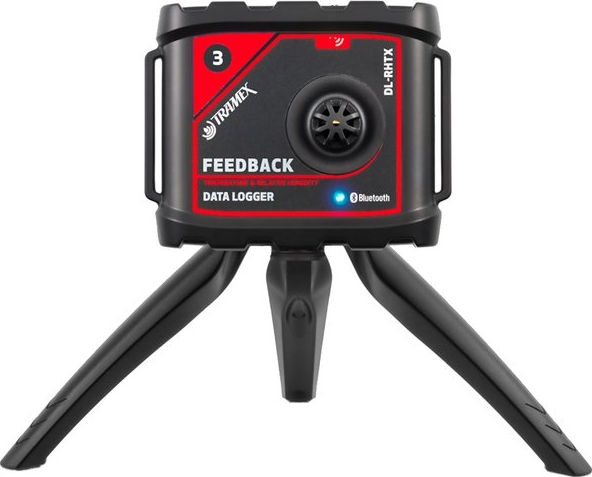

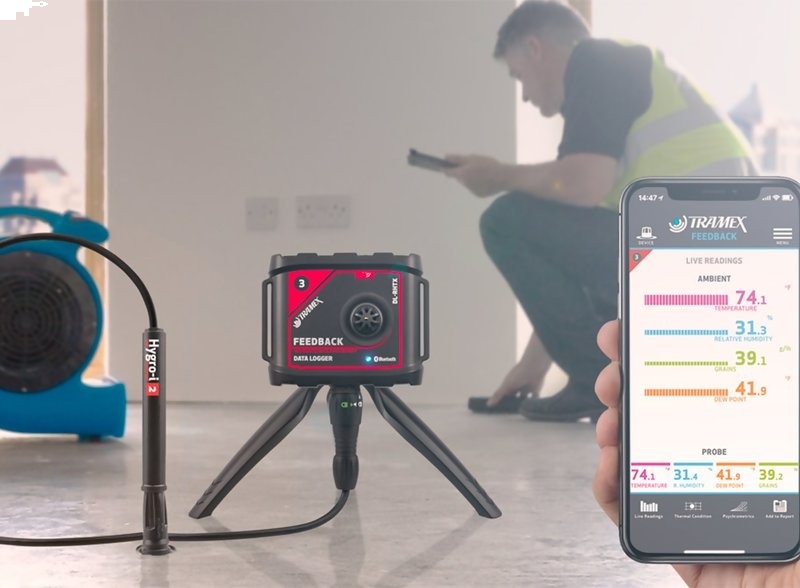

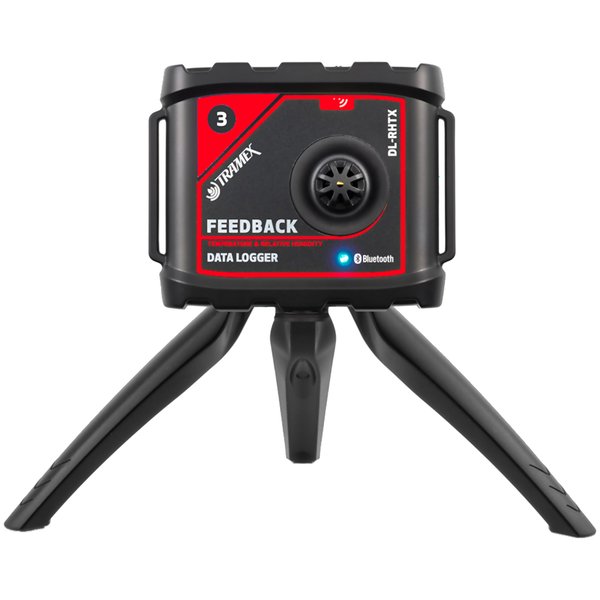

Tramex DL-RHTX Feedback DataLogger
| Size | 3.94" x 3.54" x 1.38" (100mm x 90mm x35mm) |
| Weight | 3.53oz (100g) |
| Construction ABS enclosure Power | 1 x AA type battery 1.5 Volt |
| Memory | 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate | Logger interval adjustable between 5 minutes and 1 hour |
| Transmission Range | Up to 165ft (50m) line-of-sight Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising Included: Wall Mounting and Tripod Stand |
Tramex RHIE2 Hygro-i2 Relative Humidity Probe (3X)
Range | 0 to 100% RH |
| Accuracy | ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77°F (25°C)) |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |

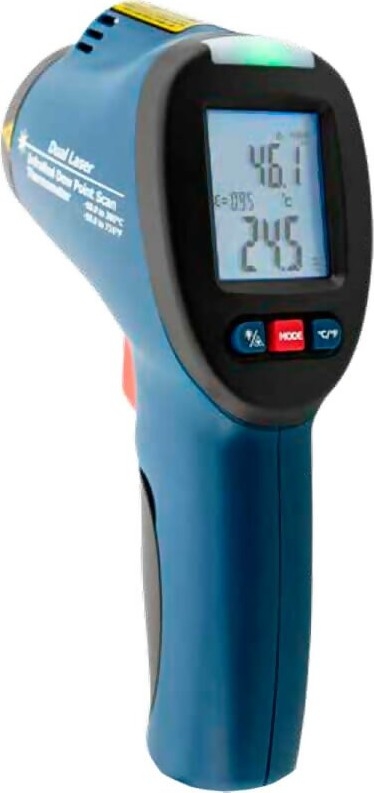

Tramex IRT2 Infrared Surface Thermometer
Temperature range | -58°F ~ 1202°F (-50 to 650 °C) |
| Distance to Spot ratio | D:S = 12:1 |
| Display resolution | 0.1 °F(0.1°C) <1000 1°C >1000 |
Accuracy for targets | Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5% |
Repeatability | -58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C) |
Response time | 150ms |
Spectral response | 8~14um |
Emissivity | Digitally adjustable from 0.10 to 1.0 |
Over range indication | LCD will show "----" |
Polarity: Automatic (no indication for positive polarity) | Minus (-) sign for negative polarity |
Diode laser output | <1mW,Wavelength 630~670nm, Class 2 laser product |
Operating temp. | 32 to 122°F ( 0 to 50°C) |
Storage temp. | 14 to 140°F (–10 to 60°C) |
Relative humidity | 10%~90%RH operating, <80%RH storage |
Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety | "CE" Comply with EMC |
Related Products
Tramex ME5 Moisture Encounter Non-Destructive Moisture Meter
- 5 Ranges of sensitivity: Wood & Timber / Shallow Depth / Drywall & Roofing / Plaster & Tile / Masonry
- Dual-Depth penetration allows for comparative of surface and core moisture and elimination of substrate influence on the testing of coverings
Tramex DL-RHTX Feedback DataLogger
- Bluetooth BLE enabled for use with mobile devices
- Up to 100,000 data point entries. Instant set up and start modes
- Precise Ambient Relative Humidity and Temperature logging
Tramex SAL75 Calibration Salt Check
- Calibration Salt Check for Tramex Hygro-i2 Relative Humidity Probe. The calibration salt check allows for regular calibration checks. Designed to produce a 75% RH environment within the chamber which may be used to ensure the calibration of the Hygro-i2®RH probe is optimum
- Order Code: SAL75, for Tramex RHP-LW Long RH Probe, Tramex RHP-SW Relative Humidity Probes
- Order Code: SAL75S, for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SW Relative Humidity Probes
- Order Code: SAL75N for Tramex RHP-NW Narrow Wand Relative Humidity Probe, Tramex RHP-SNW Short Narrow Wand Relative Humidity Probe
- Order Code: SAL75-6 for Tramex Hygro-i2 Relative Humidity Probe for calibration checking of 6 probes at once.
Tramex Extension Handle for ME5, CME5 and CMEX5
- The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
- Order Code: E5-HBS
