4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe

---

8 simple membrane keypad controls

---

Compact Kit For Measuring Relative Humidity and Moisture Content of Concrete and Wood Flooring
With Bluetooth and Accompanyning App

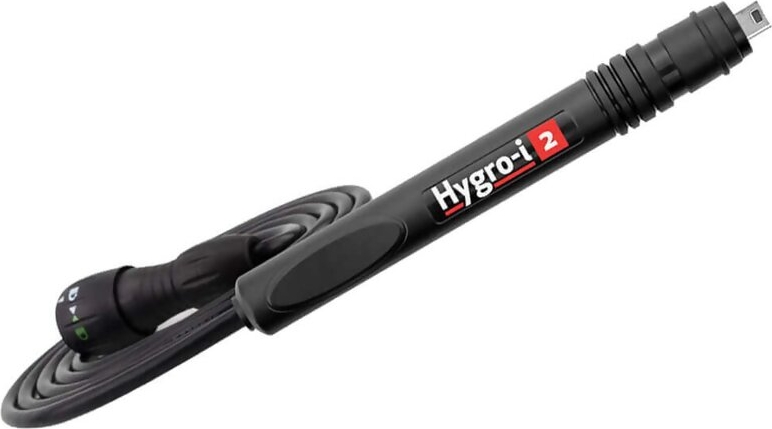

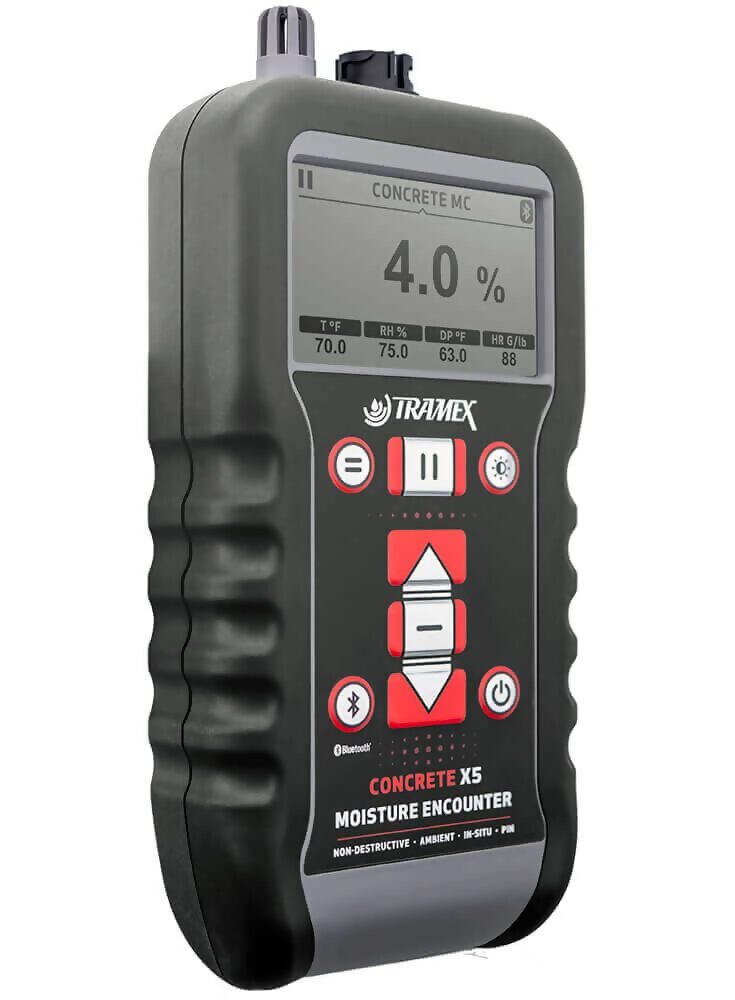

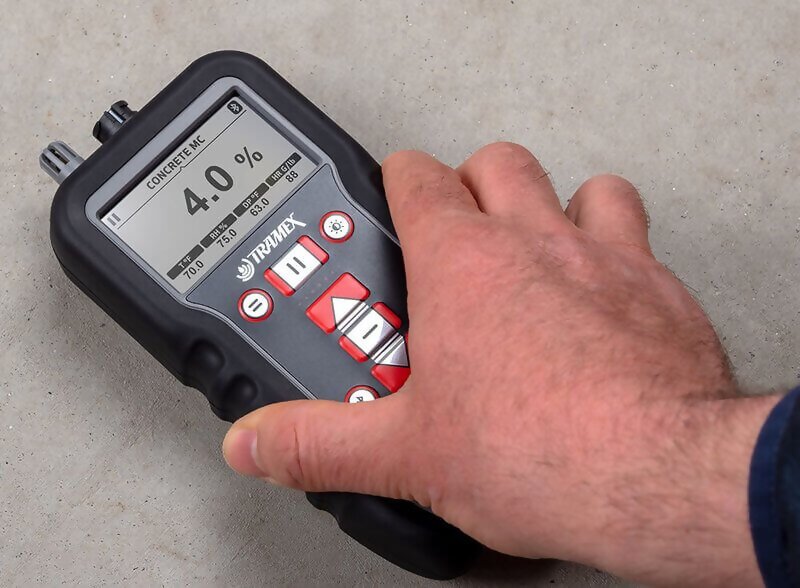

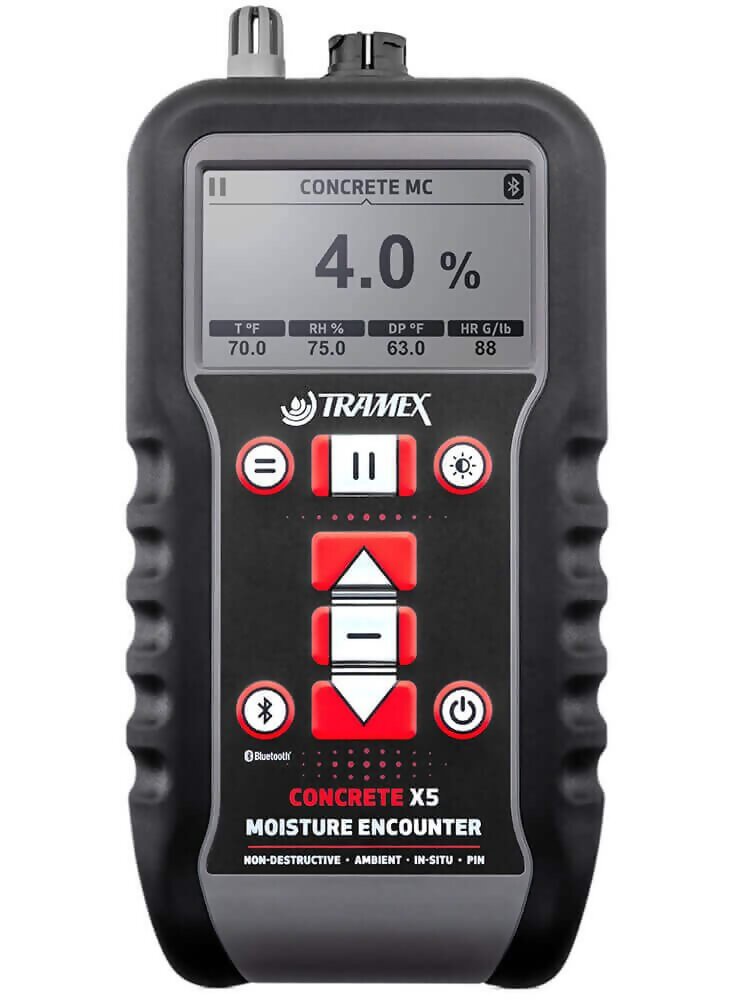

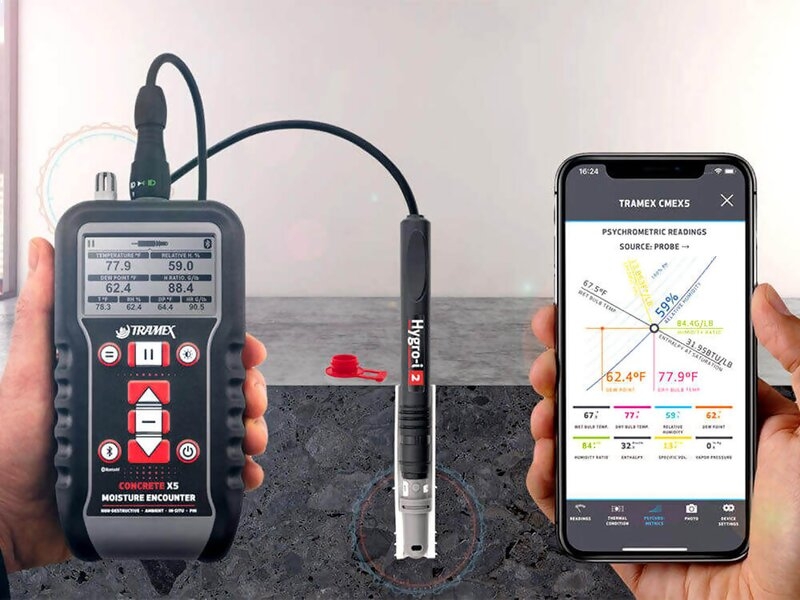

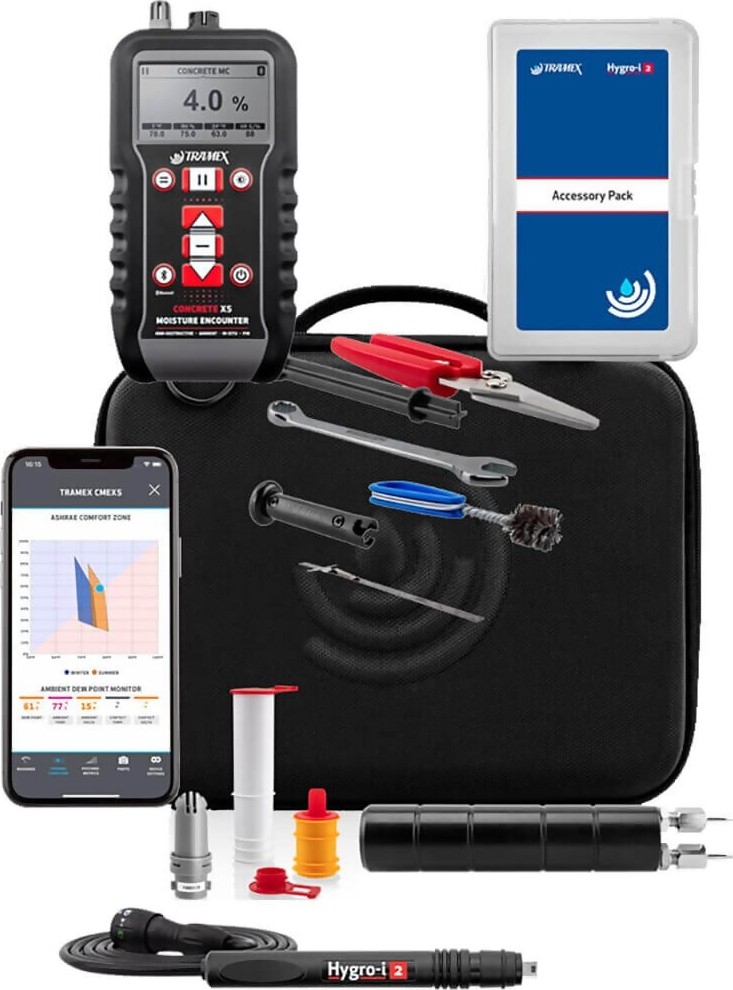

The Tramex FZK Flooring Inspector EZ Kit is compact kit for instant and precise moisture testing of concrete and wood flooring. The Tramex Tramex CMEX5 Concrete Moisture Encounter X5 digital moisture meter allows for non-destructive quantitative testing of concrete using Gravimetric testing as a baseline and comparative testing per ASTM F2659. The CMEX5 built-in hygrometer measures ambient RH, temperature and dew point conditions. Plug-in reusable Tramex RHIE2 Hygro-i2 Relative Humidity Probe allow for performing ASTM F2170 for relative humidity readings in concrete slabs. The Tramex heavy-duty wood pin-probe measures the moisture content of wood. The Flooring Inspector EZ Kit comes in a Tramex easy-travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard-to-reach places.

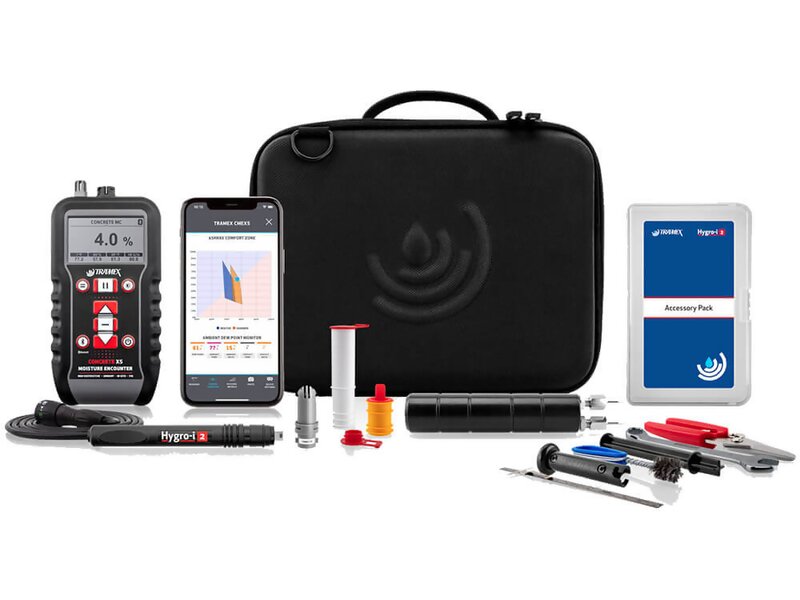

Kit Contents

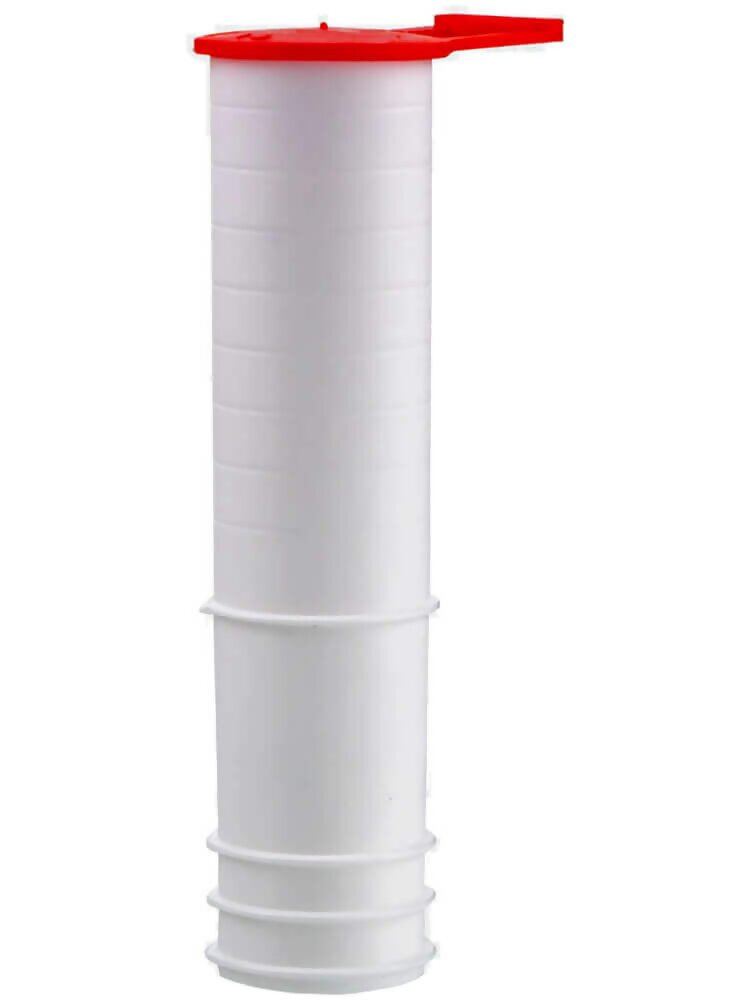

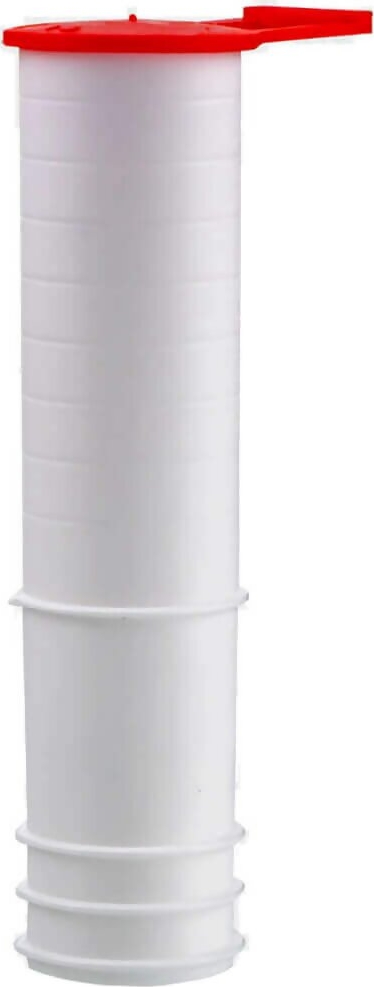

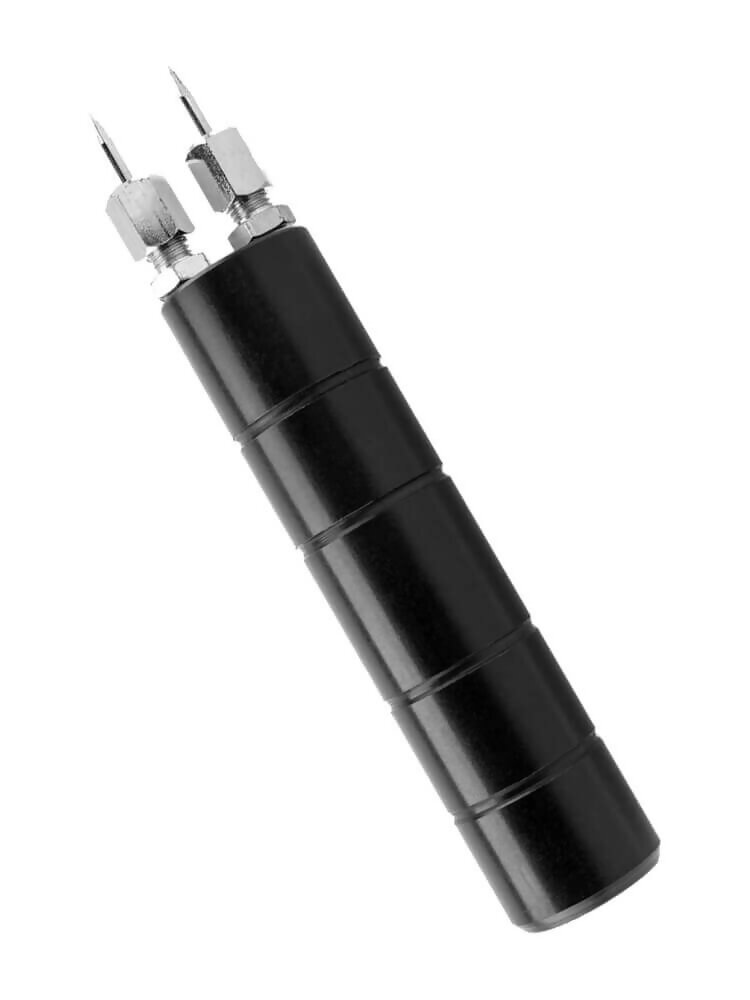

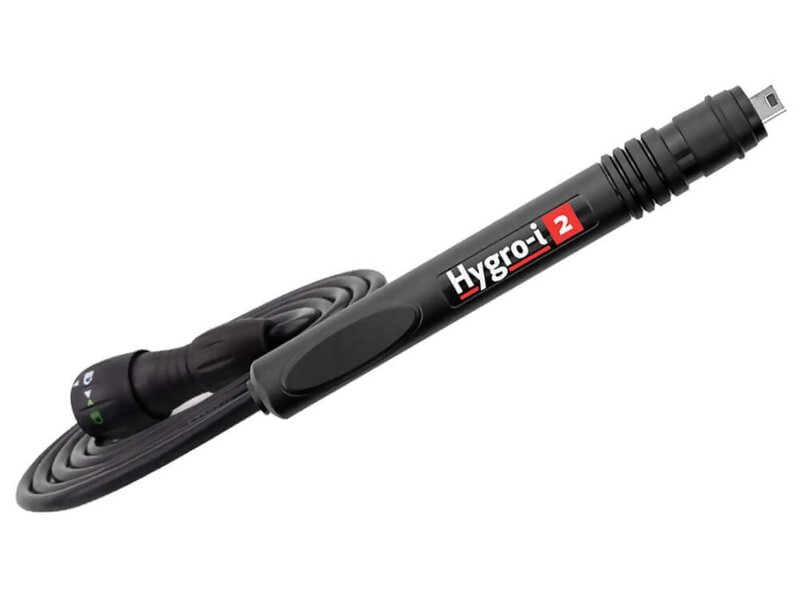

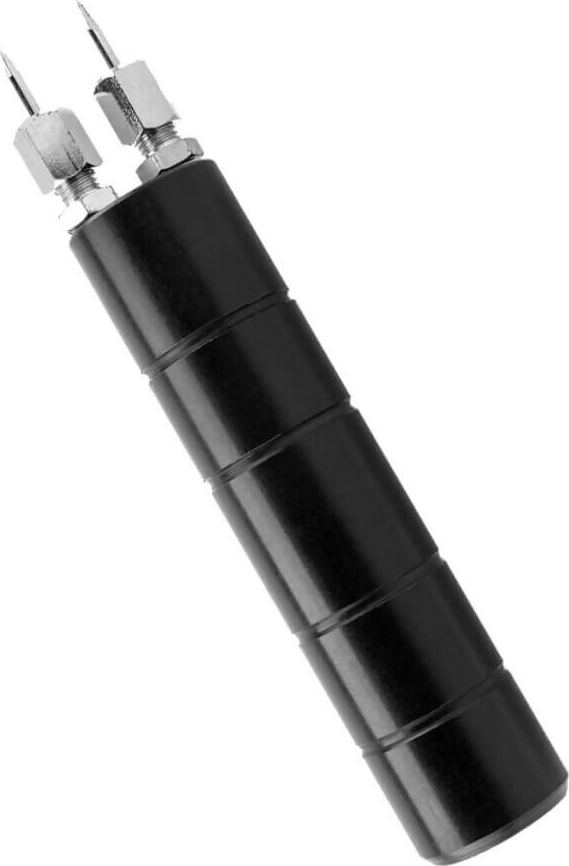

Tramex CMEX5 Concrete Moisture Encounter X5 Tramex Free App available for Android and iOS Tramex RHIE2 Hygro-i2 Relative Humidity Probe Tramex HH14TP30B Heavy-duty Pin-type Wood Probe with Cable and Pins Tramex RHHL Hygro-i Hole Liners and Caps Tramex ALLBAGP Carring Case

Features

• 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe.
• 8 simple membrane keypad controls.
• Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
• The built-in Hygrometer probe provides Relative Humidity (RH) readings, temperature, dew point temperature and Humidity Ratio.

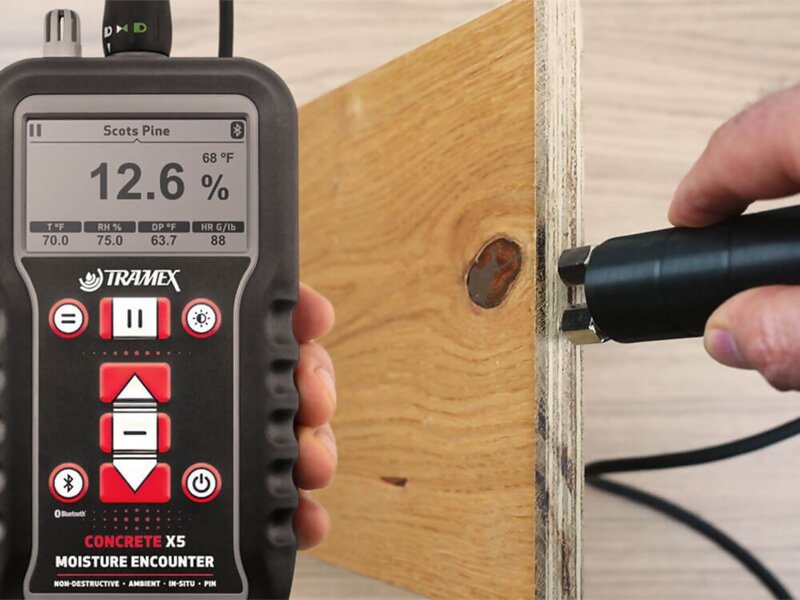

• Wood pin probe mode is automatically selected when the probe is plugged into the Concrete Moisture Encounter X5.
• When the external Relative Humidity (RH) Hygro-i2 probe is connected to the Concrete Moisture Encounter X5, the instrument automatically switches to RH mode. Ambient or In-Situ Relative Humidity readings, probe temperature, dew point temperature and Humidity Ratio are automatically displayed (Hygrometer Mode).
• When the battery requires replacement a LOW BATTERY icon is shown on the display.

Specifications

Kit:

Size	13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight	3.4lbs (1.55kg)
Power	2 x AALR6 ALKALINE (included)

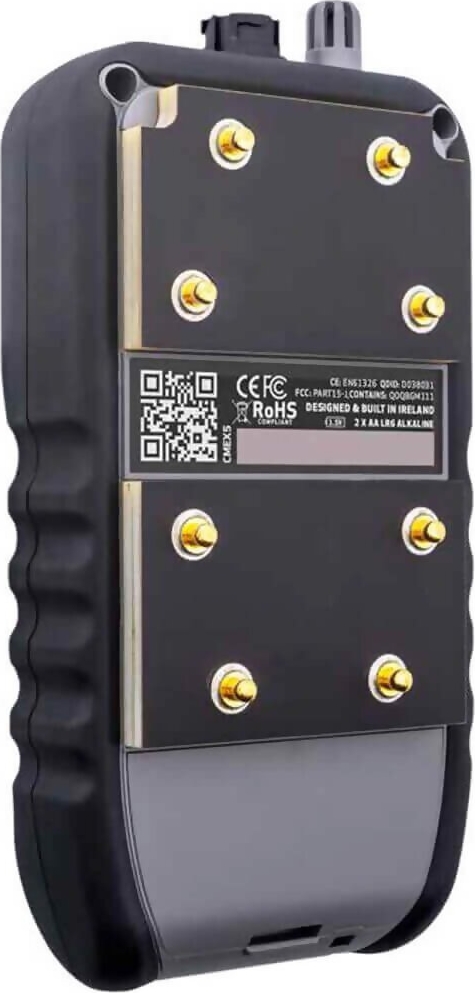

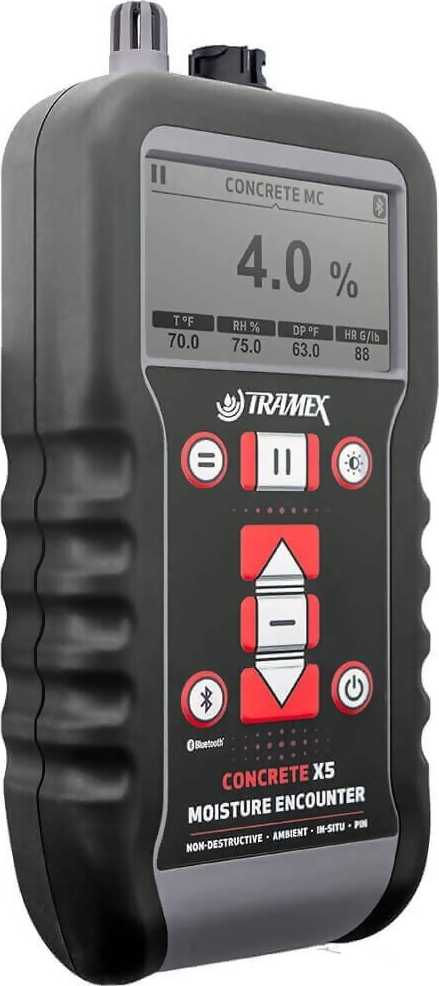

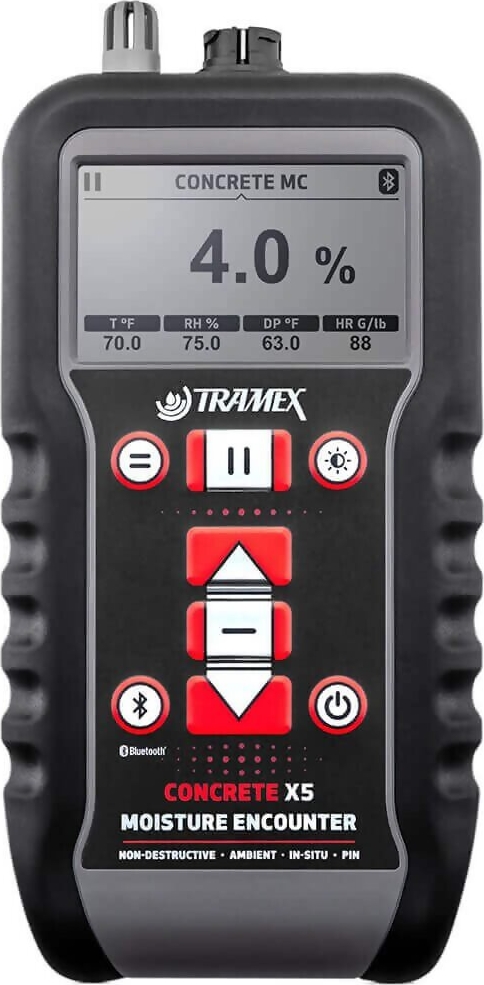

Tramex CMEX5 Concrete Moisture Encounter X5:

Moisture content for Concrete	0 → 6.9 %
Comparative for Gypsum floor screed	0 → 12
CM Equiv Anhydrite/Concrete	0→2.7 / 0→ 4.3
Reference scale	0 → 100
Relative Humidity	0 → 99% (with optional Hygro-i2 ® probe)
Humidity accuracy	0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood	5→ 30 % (with optional wood pin probes)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Digital

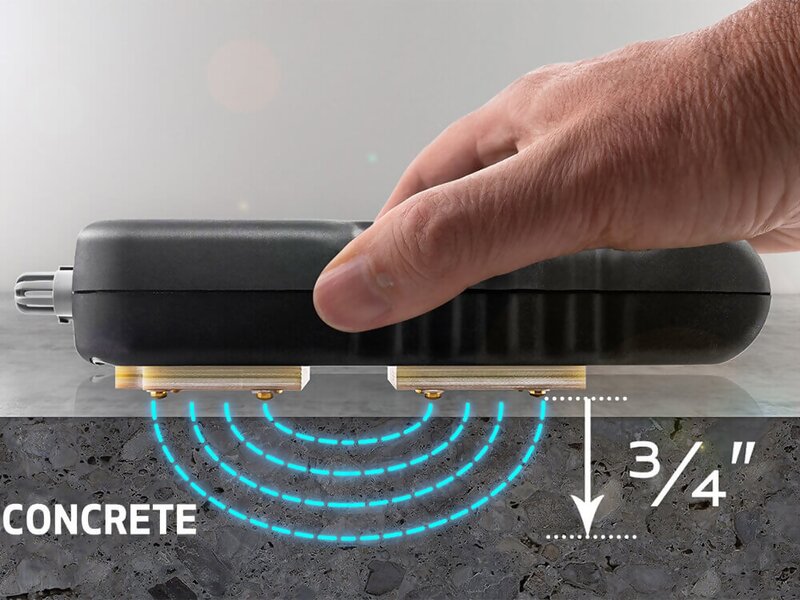

Depth of penetration in concrete	approx. ¾" (20mm)

Related Products

Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter Clear easy-to-read analog dial Instant and precise readings to a depth of approximately  3/4" into the slab

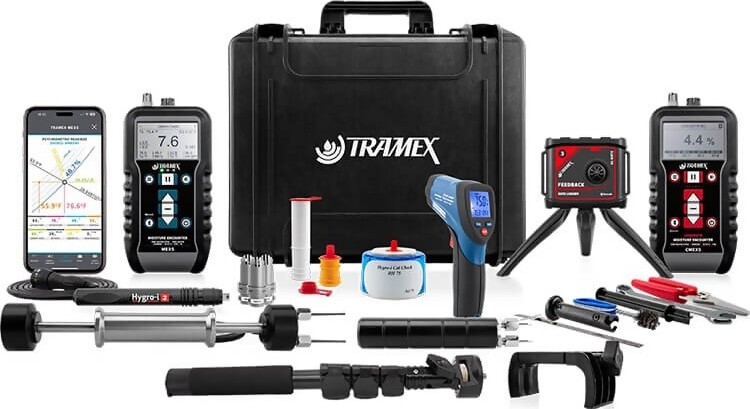

Tramex FMK Flooring Master Kit Industry: Flooring Inspection, Flooring Installation.

Tramex Hygro-i2 Relative Humidity Probe Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test

Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins For use with CMEX5, CMEX2, MRH3 & PTM. Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM) Order Code: HH14TP30B (For use with CMEX5)

Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X For use with CMEX5, CMEX2, MRH3 & PTM. Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM) Order Code: HH14TP30B (For use with CMEX5)

Tramex CALCRH Calibration Check for CME5, CMEX5 The Tramex CALCRH is a calibration check plate used to easily verify if moisture meters yield proper moisture readings, or if or needs to be sent to a calibration lab.

Tramex HA21SP52 Hammer-Action Pin-Type Electrode Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3. Order Code: HA21SP52 (For use with MRH3) Order Code: HA21SP52B (For use with CMEX5)

Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200 Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH Order Code: HH14SP200 For use with MRH3 Order Code: HH14SP200B For use with CMEX5

Tramex CALCRH Calibration Check for CME5, CMEX5 Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3 Order Code: HH14SP90 For use with MRH3 Order Code: HH14SP90 For use with CMEX5

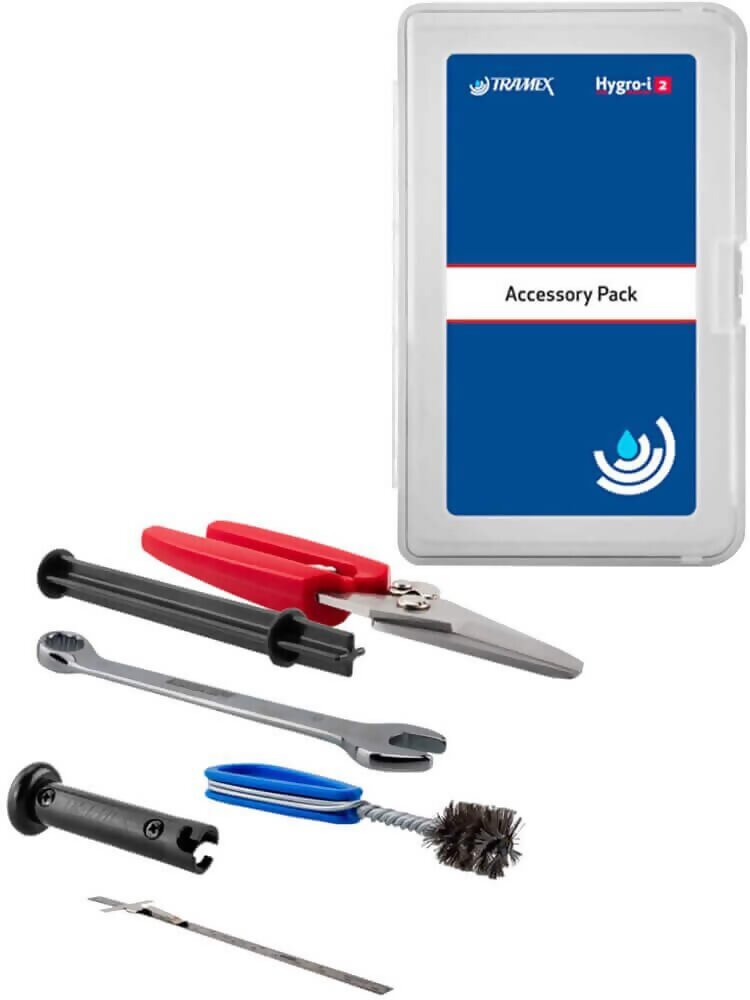

Tramex ASTM F2170 Accessory Pack Accessory Pack for RH testing The AP-F2170-B for use with the: CMEX5 and DL-RHTX The AP-F2170 for use with the: CMEX2 and MRH3
