Name: Tramex RMK Roof Master Kit
Brand: Tramex
SKU: 1911
Price: 11710.00 USD
Availability: InStock

Tramex RMK Roof Master Kit

See More Tramex Moisture Meters

Tramex RIK Roofing Inspector Kit

Non-destructive checking of moisture conditions in roofing

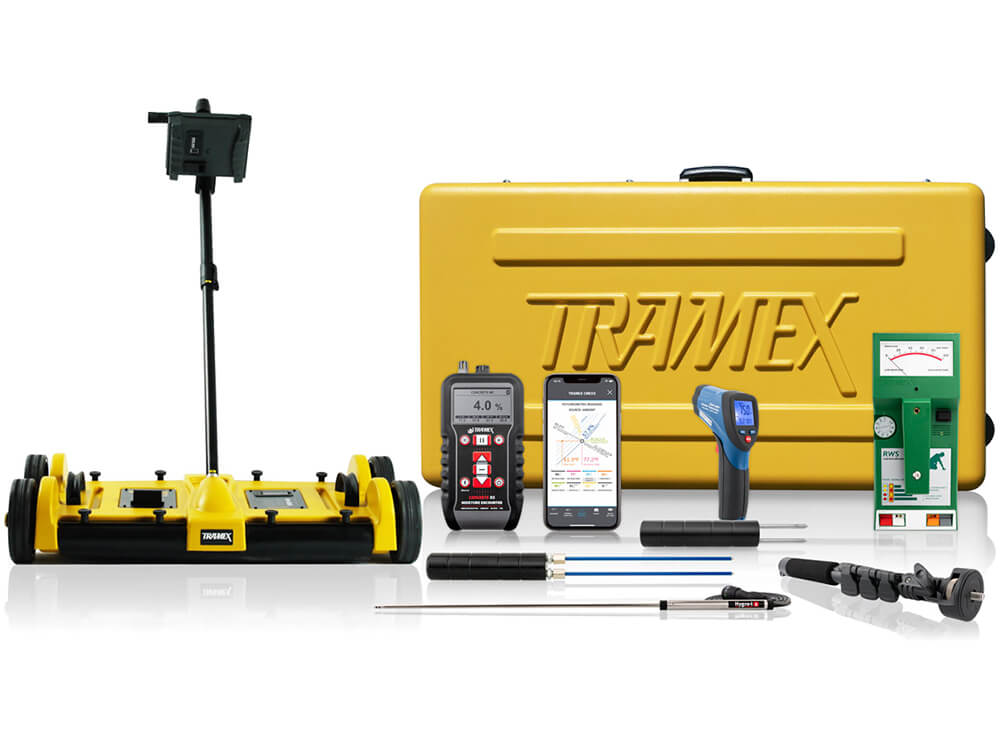

The Tramex RMK Roof Master Kit is a complete kit for the Roofing Professional, including the Dec Scanner and the Tramex RWS Roof Moisture Meter and Wet Wall Scanner allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing systems up to 6 inches (152mm) in depth. The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 Concrete Moisture Encounter X5 and probes. An infrared surface thermometer gives surface temperature. This kit comes in a protective heavy-duty wheeled carry case with die-cut foam lining. The Roof Master Kit is used to perform ASTM D7954.

line
Kit Contents
line

line
Specifications
line

Kit:

Size	41.2" x 21.1" x 12" (1045mm x 535mm x 305mm)
Weight	59.5lbs (27kg)
Power	4 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE Batteries (included)

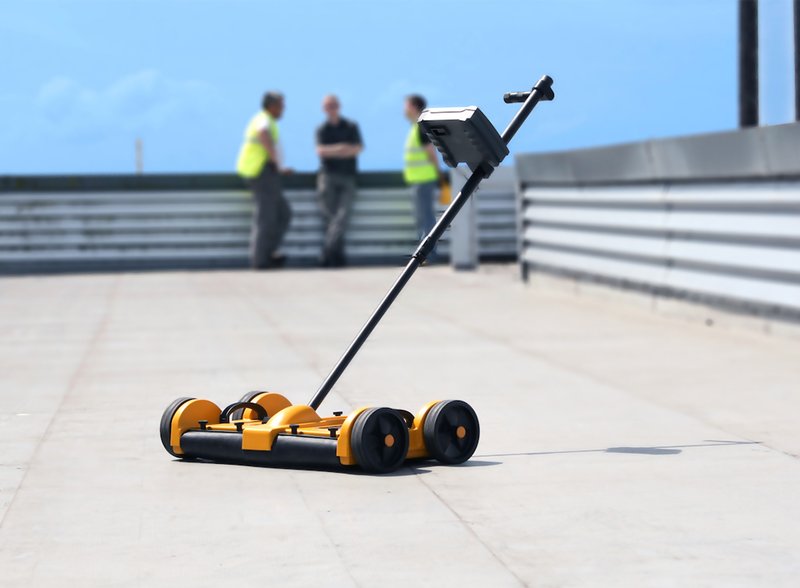

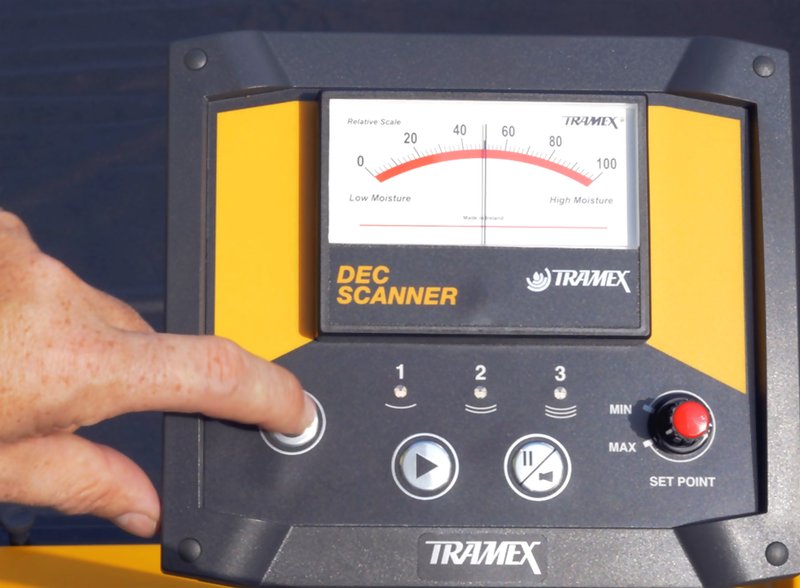

Tramex DSAL Dec Scanner Moisture Scanner for Roofing

Size	30”W x 15¾“D x 6¼”H (762 mm x 400 mm x 158 mm)
Scanning area	24”W x 15.5”D (609 mm x 394mm)
Carry case	38”W x 20”D x 12”H (940mm x 508 mm x 305mm)
Weight Dec Scanner	24.6 lbs (9.95 Kg)
Weight Carry Case	21.9 lbs (9.9 Kg)
Total Weight Dec Scanner in Carry Case	46.5 lbs (21.1 Kg)
Outer packaging carton weight	4.4 lbs (2 Kg)
Total shipping weight	51 lbs (23.1Kg)
Dimensional shipping weight	66 lbs (30 Kg)
Display	Analog Measuring Range: 0 to 100
Comparative Max. depth of penetration	6” (152 mm)
Power Supply	2 x 9 Volt PP3 Batteries (included)
Limitations	Some EPDM, Butyl rubber roofing and other conductive roofing

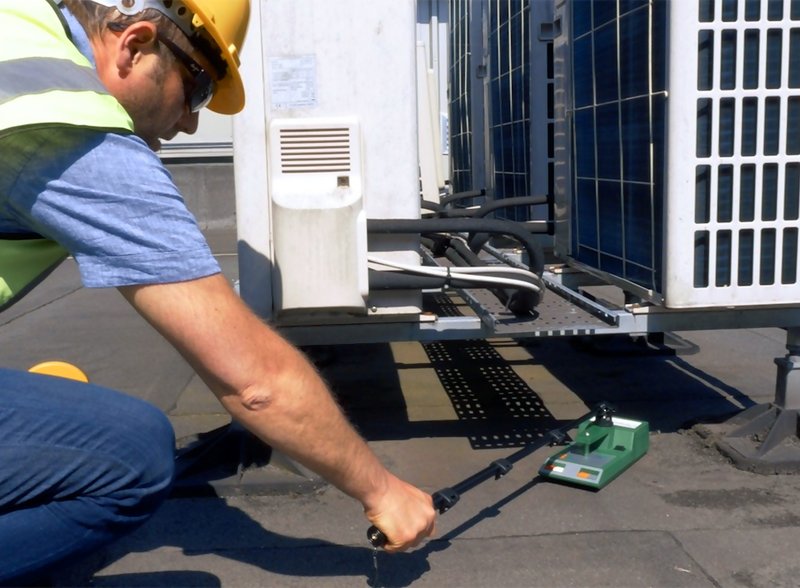

Tramex RWS Roof Moisture Meter and Wet Wall Scanner

Construction	ABS Body Power: 9 volt PP3
Battery	Included
Display	Analog Depth of penetration: 4" (100mm)
Sensitivity Four Ranges	Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity
Limitations	Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes

Tramex CMEX5 Concrete Moisture Encounter X5

Moisture content for Concrete	0 → 6.9 %
Comparative for Gypsum floor screed	0 → 12
CM Equiv Anhydrite/Concrete	0→2.7 / 0→ 4.3
Reference scale	0 → 100
Relative Humidity	0 → 99% (with optional Hygro-i2 ® probe)
Humidity accuracy	0% → 99%RH ± 2% @ 25°C / 77°F
Moisture content for wood	5→ 30 % (with optional wood pin probes)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Digital
Depth of penetration in concrete	approx. ¾" (20mm)

Tramex IRT2 Infrared Surface Thermometer

Temperature range	-58°F ~ 1202°F (-50 to 650 °C)
Distance to Spot ratio	D:S = 12:1
Display resolution	0.1 °F(0.1°C) <1000 1°C >1000
Accuracy for targets	Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%
Repeatability	-58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)
Response time	150ms
Spectral response	8~14um
Emissivity	Digitally adjustable from 0.10 to 1.0
Over range indication	LCD will show "----"
Polarity: Automatic (no indication for positive polarity)	Minus (-) sign for negative polarity
Diode laser output	<1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.	32 to 122°F ( 0 to 50°C)
Storage temp.	14 to 140°F (-10 to 60°C)
Relative humidity	10%~90%RH operating, <80%RH storage
Power supply	9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety	"CE" Comply with EMC
