This product has been replaced by the Tramex RMK
Non-Destructive, deep penetration moisture testing
7” Pin-Probe for deep penetration.
Instant concrete moisture measurement
Plug-in Hygro-i ® Probe for Relative Humidity, Temperature, Dew-Point and Mixing Ratio.
The Tramex RMK5.1 Roof Master Kit allows for point-of-contact, non-destructive checking of moisture conditions in roofing and waterproofing systems up to approximately 4 inches in depth, as well as non-destructive measurement of moisture conditions in concrete decks, wood decks and ambient relative humidity & dew-point conditions. The Tramex RMK5.1 Roof Master Kit features the handheld Tramex RWS Roof and Wall Scanner non-invasive impedance scanner and the Tramex CMEX II electronic moisture meter and Hygro-i ® relative humidity probe. This kit comes in a protective, heavy-duty carrying case with die-cut foam lining.
Photo Gallery

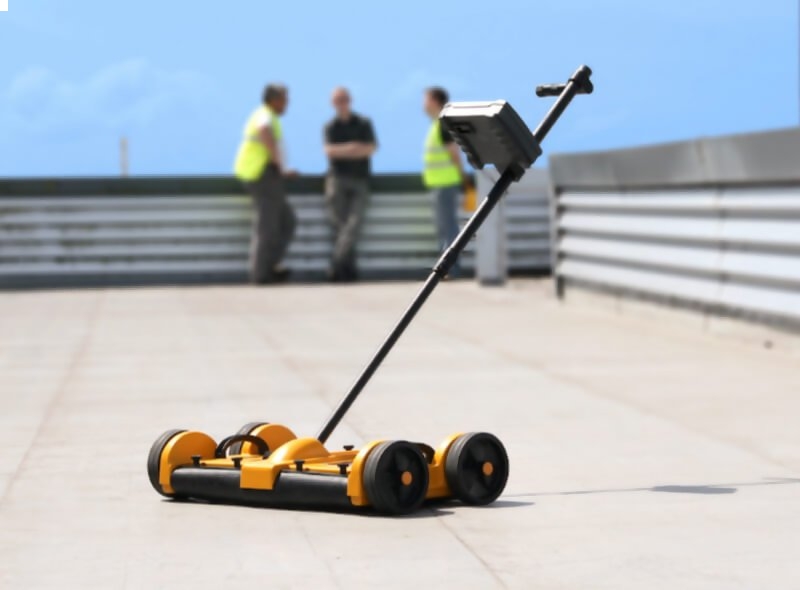

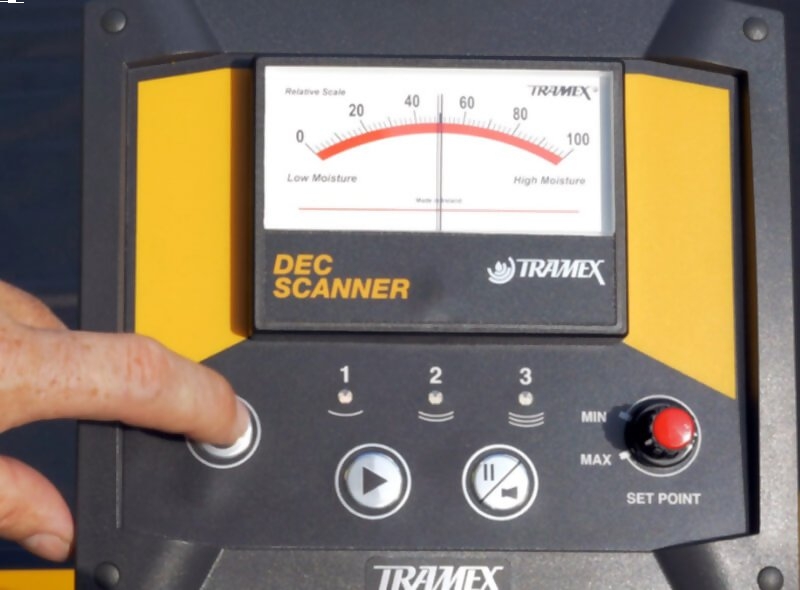

Features of the Dec Scanner
- Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
- Ergonomic, easy-reach and easy to operate control panel.
- Leak tracing, problem sourcing and an instantaneous and clear indication of roof condition.
- Fast and accurate readings over large roof areas in a short time frame.
- Faster and more user friendly than nuclear meters.
Features of the RWS
- For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications.
- Detects, locates and traces leaks in concrete flooring.
- To evaluate the extent of the moisture problem and help trace and pin-point its source.
- Multi-mode functions allowing for depth penetration and sensitivity selection.
- Fast and easy to operate giving instant clear readings.
- “Hold” function facilitates ease of recording readings.
- Lightweight, handheld and battery operated.
- Inexpensive to purchase and operate compared to other non-destructive testing methods.

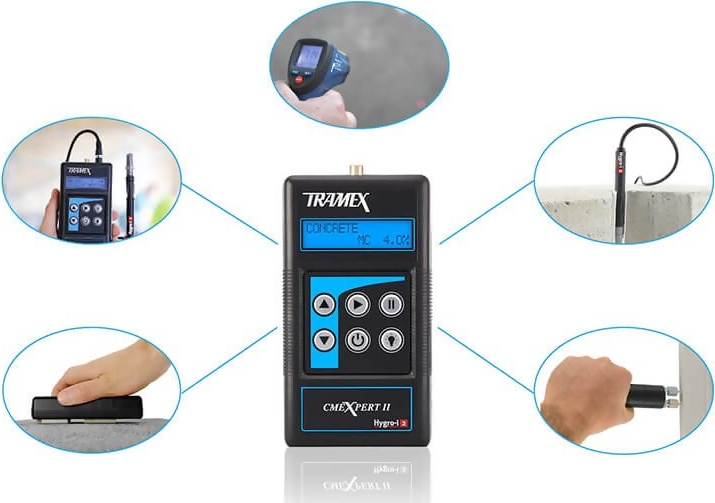

Features of the CMEX II
- Measures up to 6.9% Moisture Content in Concrete.
- Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
- Attaches to a relative humidity Hygro-i ® probe for in-situ testing of concrete and ambient conditions.
- 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment.

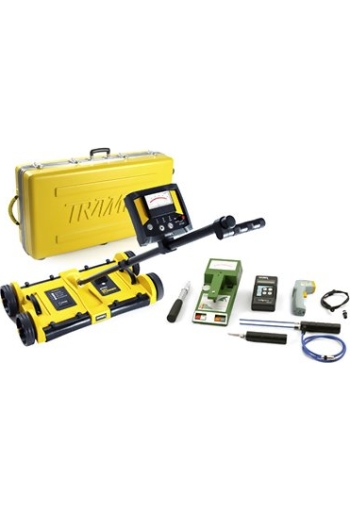

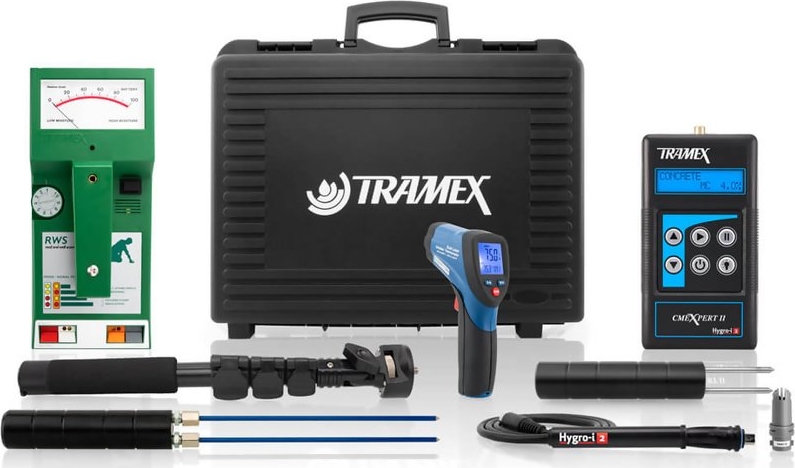

Kit Contents
- Dec Scanner
- RWS - Roof and Wall Scanner + telescopic handle (for use on roofs).
- CMEX II - concrete moisture meter.
- 1 x Hygro-i ® probe.
- Hand held electrode with 7" insulated pins.
- Hole Punch.
- Infrared thermometer
Specifications
| Size | 19.2" x 14.9" x 5.7" (487mm x 380mm x 145mm) | | Weight | 9.9lbs (4.51kg) | | Power | 3 x 9 volt PP3 | | Battery | Included | | Measuring range - RWS | | | Depth of penetration | 4" (100mm) | | Reference scale | (NDT*) 0 to 100 | | Measuring range - CMEX II | | | Depth of penetration in concrete | (NDT*) approx. ¾" (20 mm) | | Moisture content for Concrete | (NDT*) 0 to 6.9 % | | Comparative for Gypsum floor screed | (NDT*) 0 to 10 | | Reference scale | (NDT*) 0 to 100 | | Relative Humidity (RH probe) | 0 to 99% | | Moisture content for wood (with pin probes) | 7 to 40 % | | Humidity accuracy | 0% to 99%RH +/- 2% @ 25°C / 77°F | * NDT - non-destructive test
