Tramex TREMS-WME-MC Remote Environmental Monitoring System

See More Tramex Moisture Meters

Tramex TREMS-WME-MC Remote Environmental Monitoring System

See More Tramex Moisture Meters
Price:
$2,800.00
    warrenty

    Product Description
    Ambient Relative Humidity and Temperature
    WME Reference 1-100
    Remote Environmental Monitoring System Cloud

    The Tramex TREMS-WME-MC Remote Environmental Monitoring System allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard. Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions.

    Designed and developed by Tramex, this state of the art technology can notify users allowing for quick response to in-situ and environmental changes.

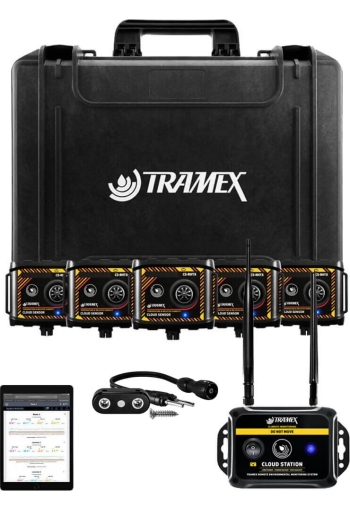

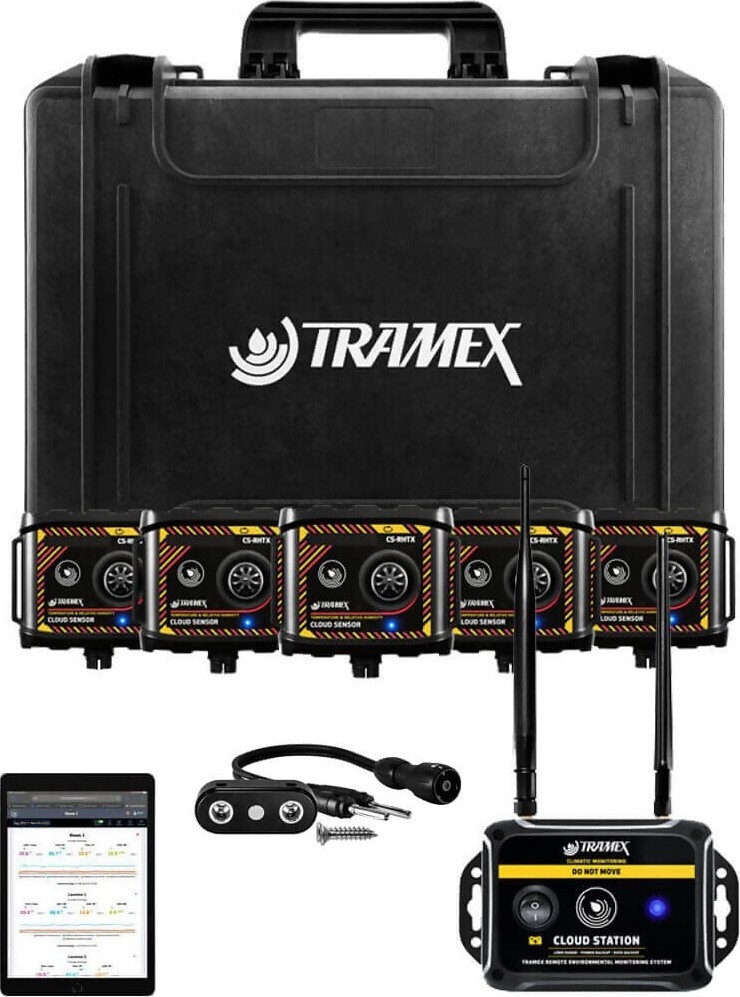

    The Tramex TREMS-WME-MC Remote Environmental Monitoring System kit comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, and 5 external WME/MC probes.

    Multiple Sensors can be used with one Station and additional Sensor and WME/MC probe Accessory Packs are also available, meeting your specific monitoring requirements.

    Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point, grains per pound / grams per kilo and WME/MC readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.

    Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

    There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System WME/MC.


    line
    Kit Contents
    line

    • 5 x CS-RHTX Tramex Cloud Sensors
    • 5 x WME/MC electrode probes
    • 1 x Tramex Cloud Station
    • 1 x Heavy Duty Protective Carry Case
    • Tramex Cloud Software Monitoring platform (Tablet not included)
    • Antennae for Cloud Station


    line
    Features
    line

    • Ambient Relative Humidity and Temperature
    • WME Reference 1-100
    • Remote Environmental Monitoring System Cloud


    line
    Specifications
    line

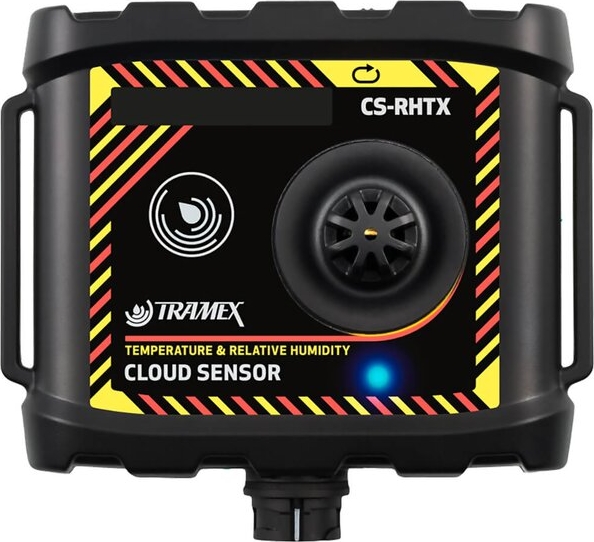

    Cloud Xtra Sensor

    Temperature

    Exceptional Accuracy±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)
    Range-40ºF to 257ºF  (-40ºC to 125ºC)
    Sensor ProtectionPTFE Film protects sensor opening from water & dust
    Drift<0.04ºF (0.03ºC) per year


    Relative Humidity

    Exceptional Accuracy±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
    Range0 to 100%RH
    Resolution0.1% over the complete range
    Drift<0.25%RH per year


    Sensor

    Transmission RangeUp to 2 miles line-of-sight
    Communication FrequencyMultiple readings per hour.
    IdentificationItems individually coded for ease of install and logging identification.
    Size3.94" x 3.54" x 1.38" (100mm x 90mm x35mm)
    Weight3.53oz (100g)
    ConstructionABS enclosure
    PowerBuilt in long-life CR123A battery
    IncludedWall Mounting

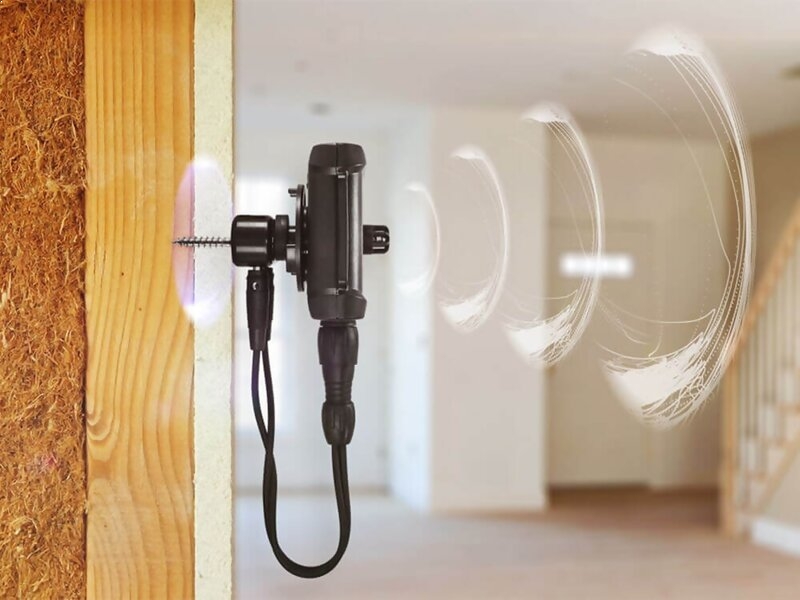

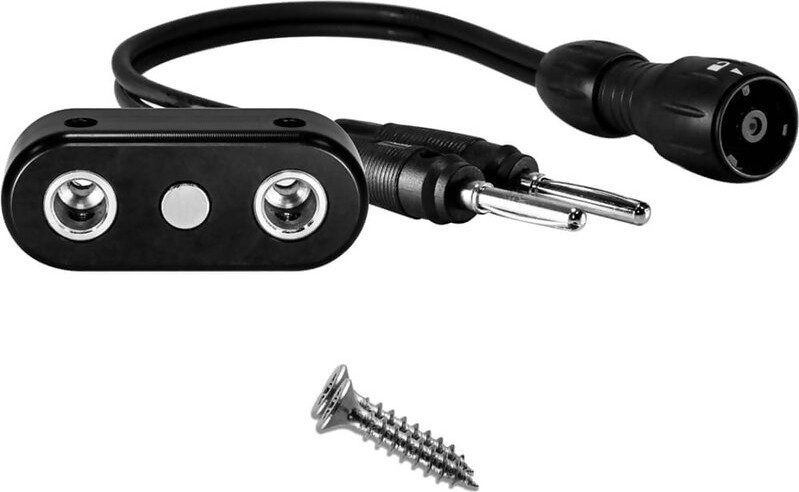

    WME/MC Probe

    Wood Moisture Equivalent (WME/MC)0 - 100


    Tramex Cloud

    FrequencyRegion Specific frequency available
    SecurityWPA2-PSK encryption, no unwarranted telemetry/tracking.
    Size5.9" x 3.6" x 2" (150mm x 90mm x 50mm)
    Weight9.9oz (280g)
    PowerUniversal AC Power Adapter
    ConstructionWall-mountable ABS enclosure


    Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.


    Kit

    Size17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
    Weight7.6lbs (3.56kg)
    Power5 x CR123A 3-volt batteries (included)


    lineRelated Productsline

    Tramex AP-TREMS-WME-MC Remote Environmental Monitoring System Wme/Mc Accessory Pack

    • Comprises 5 CS-RHTX Tramex Cloud Sensors as well as 5 external WME/MC probes. These external probes extend the benefits of the remote monitoring system allowing for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard

    line

    Tramex RHP-SW Relative Humidity Probes

    • Fast Acclimation and Temperature response time
    • Proven robustness, Durable and Reusable
    • Best in class accuracy and reliable, even at high RH >90%

    line

    Tramex CTP Contact Temperature Probe

    • Plug-in accessory probe used with the FeedBackDataLoggers
    • Used alongside the Humidity sensor functions in the DataLogger
    • Dew Point circumstances can be easily identified


    line
    Downloads
    line

    Tramex TREMS-WME-MC Remote Environmental Monitoring System - Data Sheet
