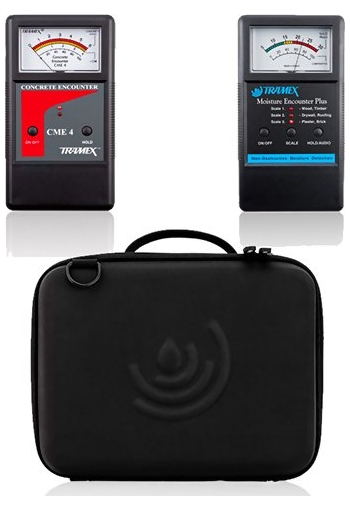

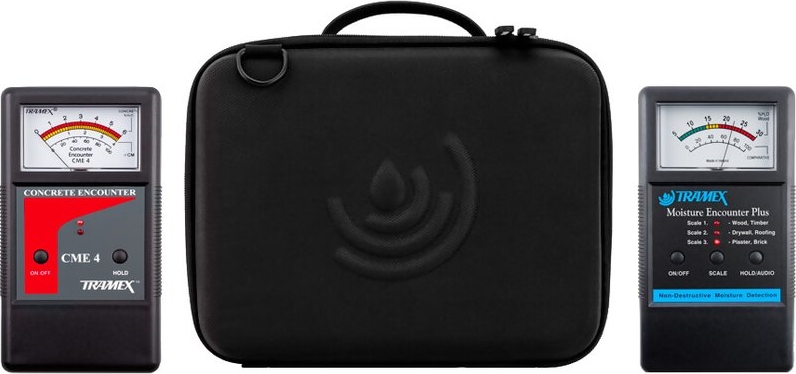

Tramex WDZK5.1 Water Damage Restoration EZ Kit

Kit Contents:

CME4 Non-destructive, instant concrete moisture meter.
MEP Non-destructive analog moisture meter for general building materials.
Heavy-duty carrying case

Measuring Range:

Moisture Content of Concrete (NDT): 0 to 6.9 % (moisture by weight)
Moisture content of wood: Pin-type Probe 7-40%.
Gypsum Scale: 0 to 10 (comparative)
Reference Scale for Building Materials: 0 to 100 (comparative)

The Tramex WDZK5.1 Water Damage Restoration EZ Kit is acompact kit for instant and precise non-destructive testing of moisture conditions in numerous building materials such as concrete and other cementitious materials per ASTM F2659, as well as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex WDZK5.1 features the Tramex MEP non-destructive overall building inspection moisture meter, and the Tramex CME4 concrete moisture meter. The Water Damage Restoration EZ Kit comes in a Tramex Easy-travel case.

Kit Contents

The Tramex WDZK5.1 Water Damage Restoration EZ Kit includes everything needed for testing:

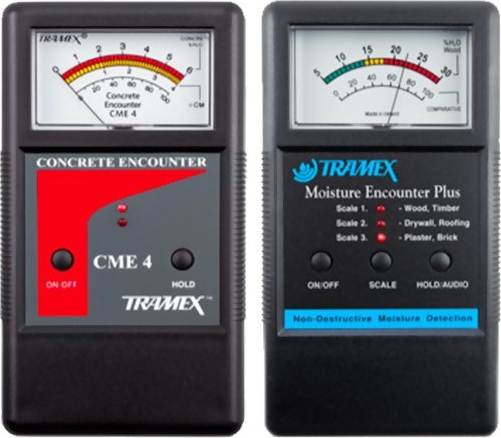

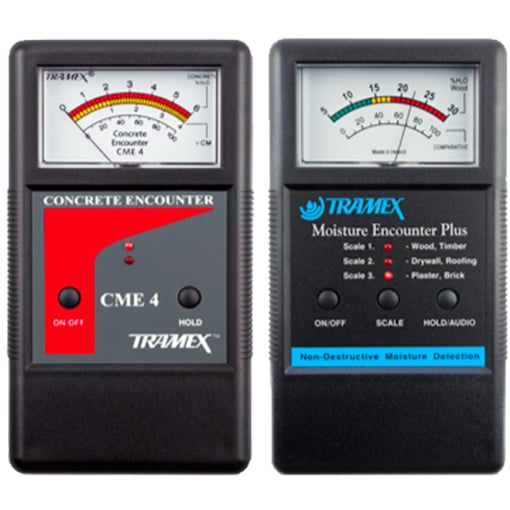

CME4 Non-destructive, instant concrete moisture meter
MEP Non-destructive analog moisture meter for general building materials
Operating Instructions
Certificate of Calibration
One (1) year warranty

Features

CME4

Clear easy-to-read analog dial.
No need to probe, drill or mechanically damage the surface.
Instant and accurate readings deep into the surface. Non-destructive in operation.
Hold function “freezes” meter reading when inspecting areas where the meter face is not visible and for easy recording of readings.
Reproducible results.
Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.

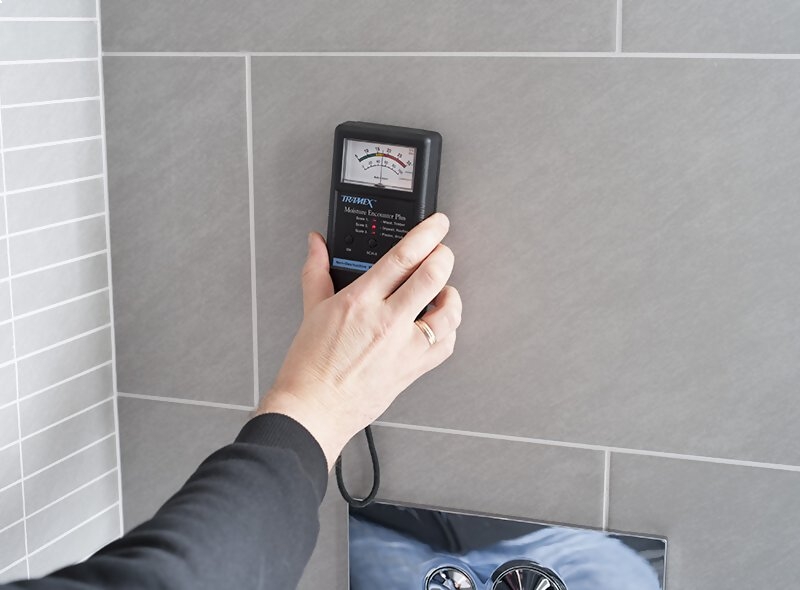

MEP

Wide range of readings for wood from 5% to 30%.
Deep signal penetration up to 11⁄4” (30mm) into the materials being
tested without the need to damage the surface.
Three ranges of sensitivity: Wood, Timber / Drywall, Roofing / Plaster,
Brick – making it ideal for testing various building materials.
Detects moisture through paint, wall coatings, drywall, ceramic tiles,floor coverings, wood, roof coverings and ceiling tiles.

Specifications

Size	13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight	2.49lbs (1.13kg)
Power	2 x 9 volt PP3
Battery	Included
Measuring range - MEP
Depth of penetration	(NDT*) 1¼" (30mm) (in wood, drywall)
Moisture content for Wood	(NDT*) 5 to 30 %
Reference scale for building materials	0 to 100
Measuring range - CME4
Depth of penetration in concrete	(NDT*) approx. ¾" (20 mm)
Moisture content for Concrete	(NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed	(NDT*) 0 to 10
Reference scale	(NDT*) 0 to 100
