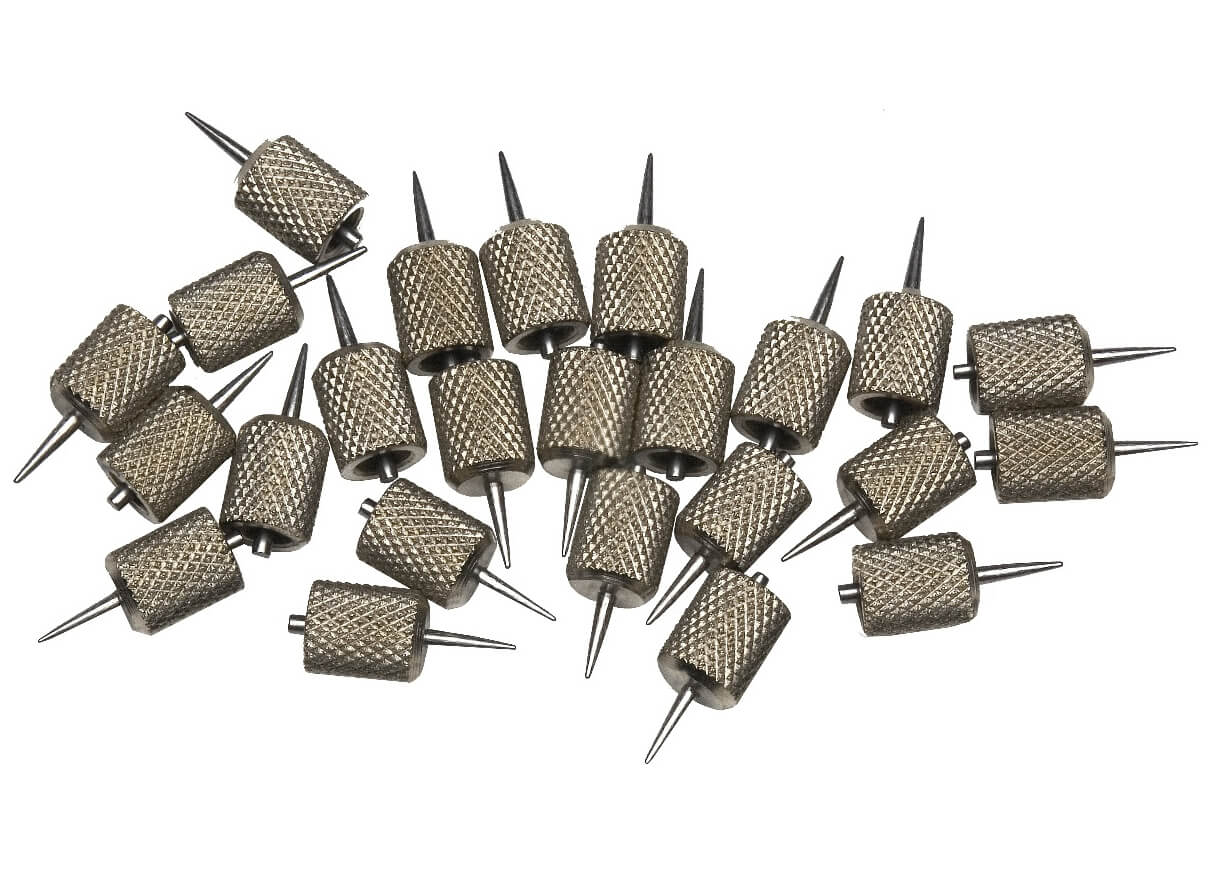

2497/A-100

• Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum

MCS-2

• This moisture content standard is great for verifying that your P-2000 or RDM-3P paper moisture meters are in calibration. With two electrical resistance values (6% and 10%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-2 is also available with a letter of certification traceable to NIST.
  • For P-2000 meters with serial numbers up to 19389, please order the MCS-2
  • For P-2000 meters with serial numbers of 19390 and above, please order the MCS-2X.



12-E

• Double roller type for measuring moisture content on a moving web

15-E

• Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block.

19-E

• Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications

• Home inspector: use on wood joists and drywall.
• Paper producer: use on curved surfaces such as cardboard and paper tubes.
• Woodworker: use on timber, poles, and veneer/

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

43-E

• Clamp type for testing thin sheet stock. The sample tested is compressed between two smooth discs.

• Leaf type for measuring moisture content on a moving web or roll. Can be used with a portable unit or for stationary installation

Prods for testing standard and high density bales (requires H-4 Handle).

Available as:

• 830-2 – 10” prod
• 830-3 – 18” prod
• 830-4 – 36” prod
• 830-5 – 12” for hops

Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing
