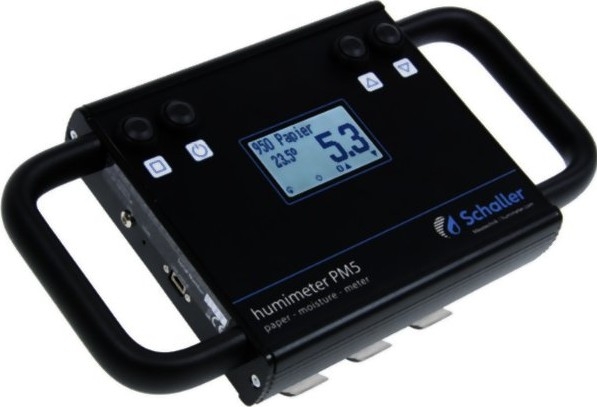

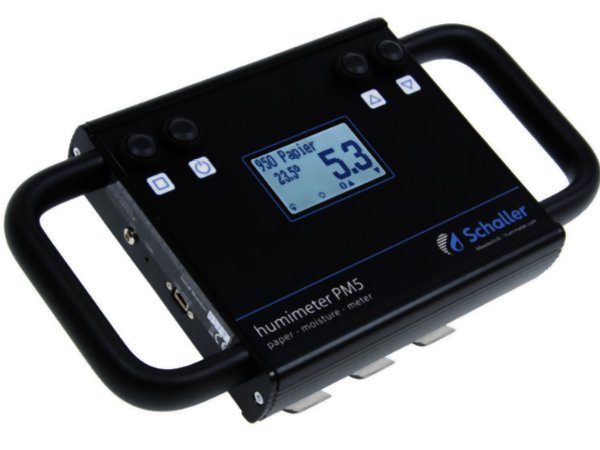

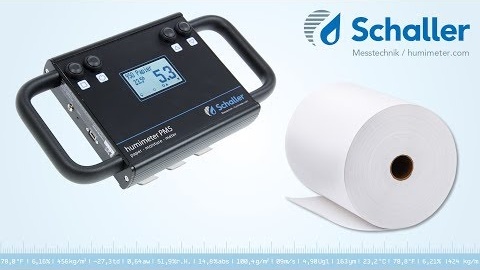

Schaller Humimeter PM5 Paper Moisture Meter

---

Measuring range: 1% to 25% water content

---

Resolution: 0.1% water content

---

Measuring depth: 50 mm

---

The Schaller Humimeter PM5 Paper Moisture Meter is ideal for paper manufacturers, paper processors and paper retailers, for a non-destructive determination of absolute moisture of paper and cardboard at warm, running paper rolls as well as at stagnant, cool rolls.

With non-contact infrared paper temperature measurement.

Non-destructive measurement through the packaging.

Kit Contents

Schaller Humimeter PM5 Paper Moisture Meter USB data interface module LogMemorizer measuring data recording Analyzing software on USB flash drive Rechargeable battery Plastic case with proof plate

Features

• Measuring range: 1% to 25% water content
• Resolution: 0.1% water content
• Measuring depth: 50 mm
• Non-contact infrared temperature measurement with 90° optics
• Paper temperature for determination of water content: 0 to +80°C / 32 to 176°F
• Infrared temperature measurement –25 to +125°C / -13 to 257 °F
• Automatic temperature compensation
• Temperature can be set to °C or °F as required
• Measurement within seconds without prior treatment of samples
• Hold function, automatic datalog and manual saving of results for up to 10,000 measuring values with measuring point report
• Large, well-lit LC display
• Dimensions 254 x 138 x 70 mm (with rubber protection, weight 850 g
• Scope of supply: moisture meter PM5, moisture meter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, rechargeable battery, plastic case with proof plate
• Quick and highly accurate measurement using a non-destructive method
• Simple handling, small, handy, applicable everywhere on site
• Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
• Infrared paperweb temperature measurement
• Moisture meter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC
• Rechargeable batteries
• Accurate determination of paper roll temperature
• Higher accuracy of measuring results due to temperature compensation based on infrared temperature measurement Accessories and Extensions.

Specifications

Part Number	Accessories and Extensions
12297	Entry of an existing characteristic curve in a moisture meter device
11217	Laboratory analysis for preparation of a calibration curve for a new material for moisture meter devices
12496	Laboratory analysis for preparation of a calibration curve for a new material for moisture meter PM5 and conversion of absolute water content into relative paper moisture (max. 0 - 100%). Please indicate required measuring range!
11733	Thermo printer runs by battery, industrial model, portable Dimensions: 180 x 100 x 45 mm, weight: 0.4 kg
10600	Factory calibration certificate. Protocol documenting the calibration of material moisture meters before deliver
14098	Spare parts set: 3 pieces of measuring bows for moisture meter PM
12464	Plug power supply unit USB; output: 5VDC, USB A connector; input: 90-250VAC, EU plug, -5 to +45°C
