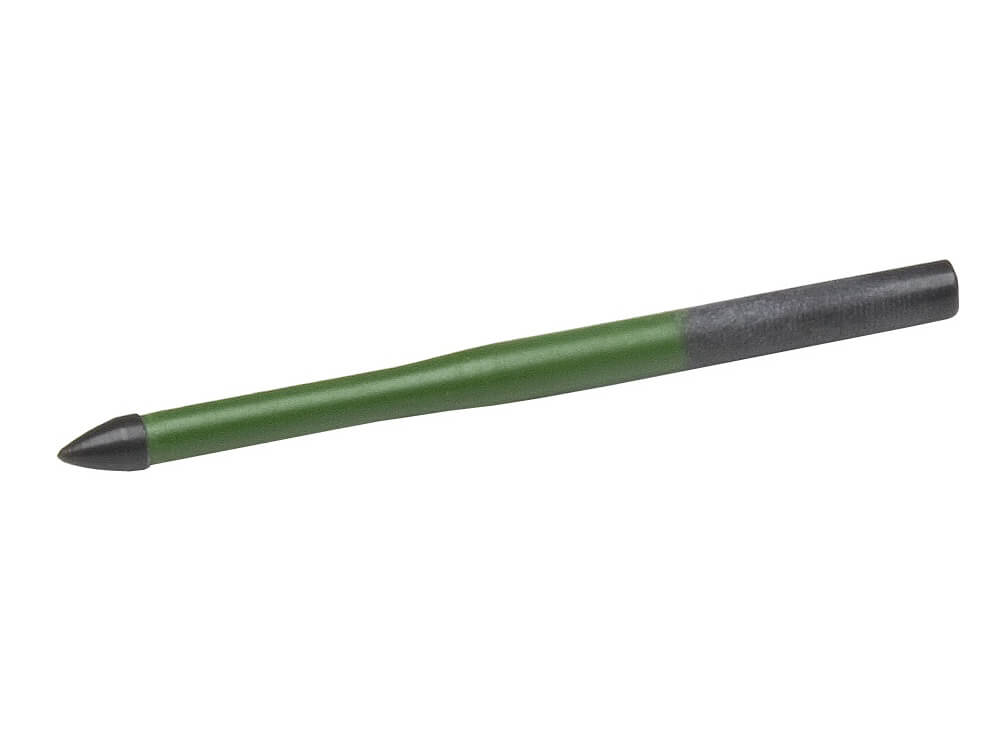

1849

• An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½" insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

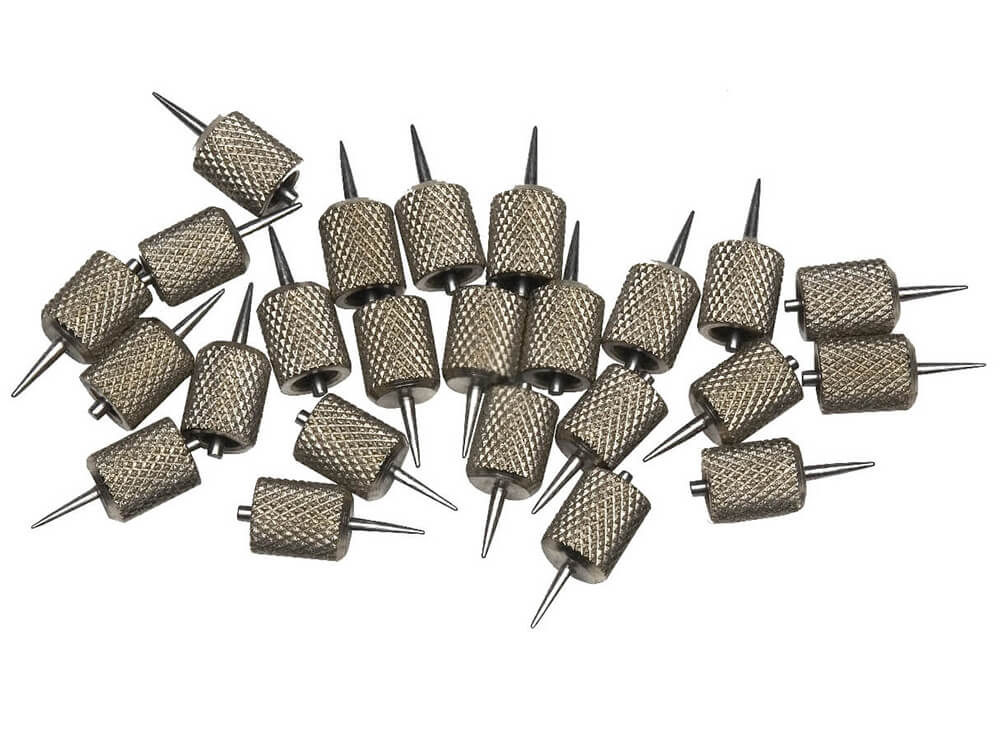

2497/A-100

• Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½"), concrete and gypsum

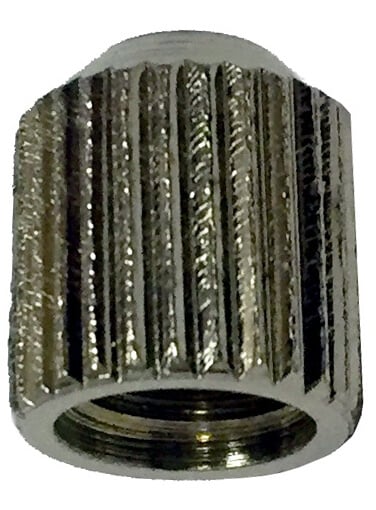

305RET-0021

• Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

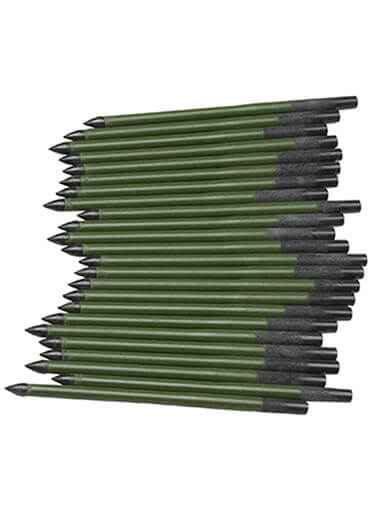

496

• 496 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

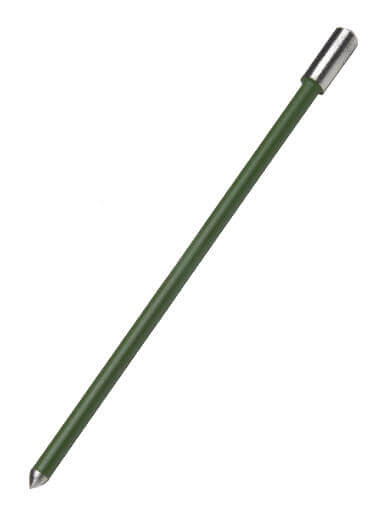

608

• The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4". Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS. Also available in 7" length with 6" penetration as 608/001.

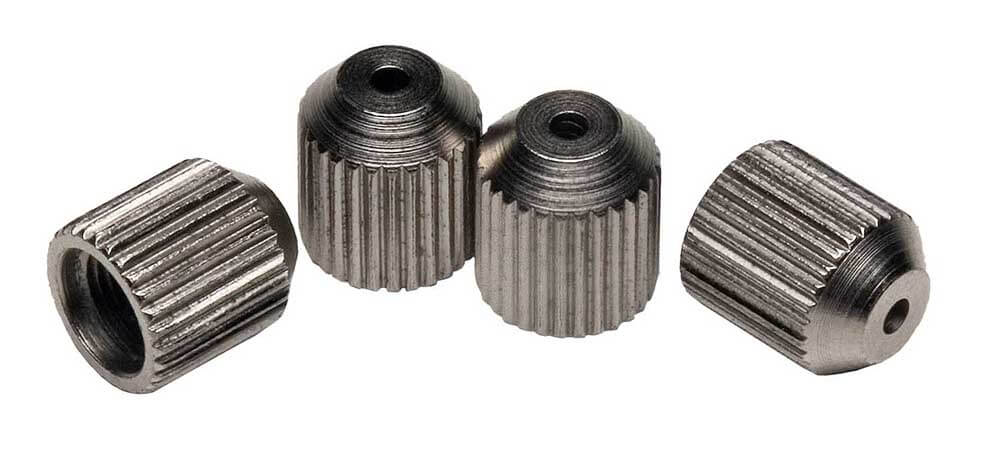

632

• Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

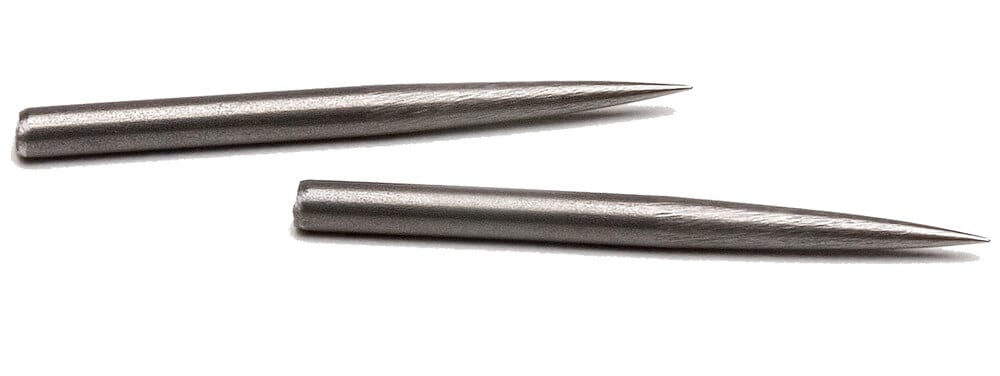

A-111

• Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16" and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

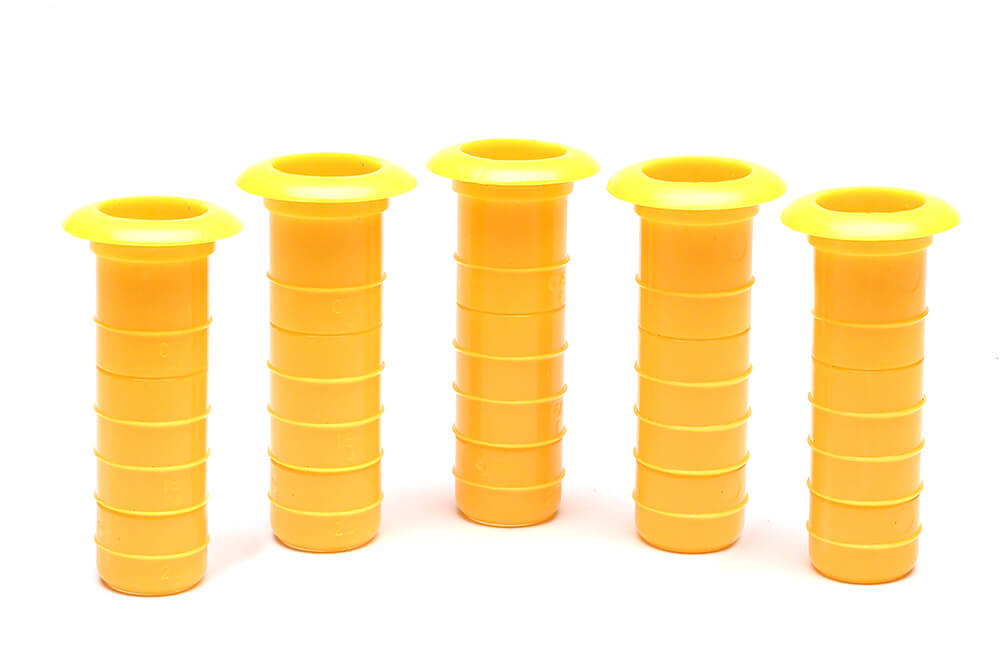

CS-3

• Plastic sleeve required when performing ASTM F-2170 tests on concrete. Used with the RH/T-S3 attachment included with Total Check and HT-4000F. Order in packs of 20 CS-3/20

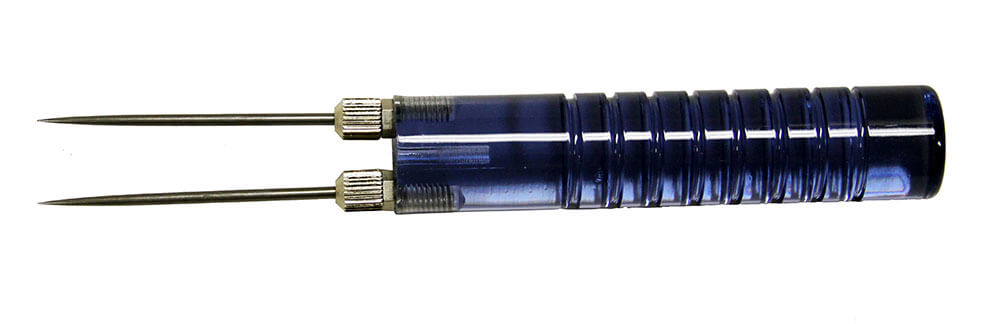

HP-1

• Makes pilot holes in stucco to reduce pin damage

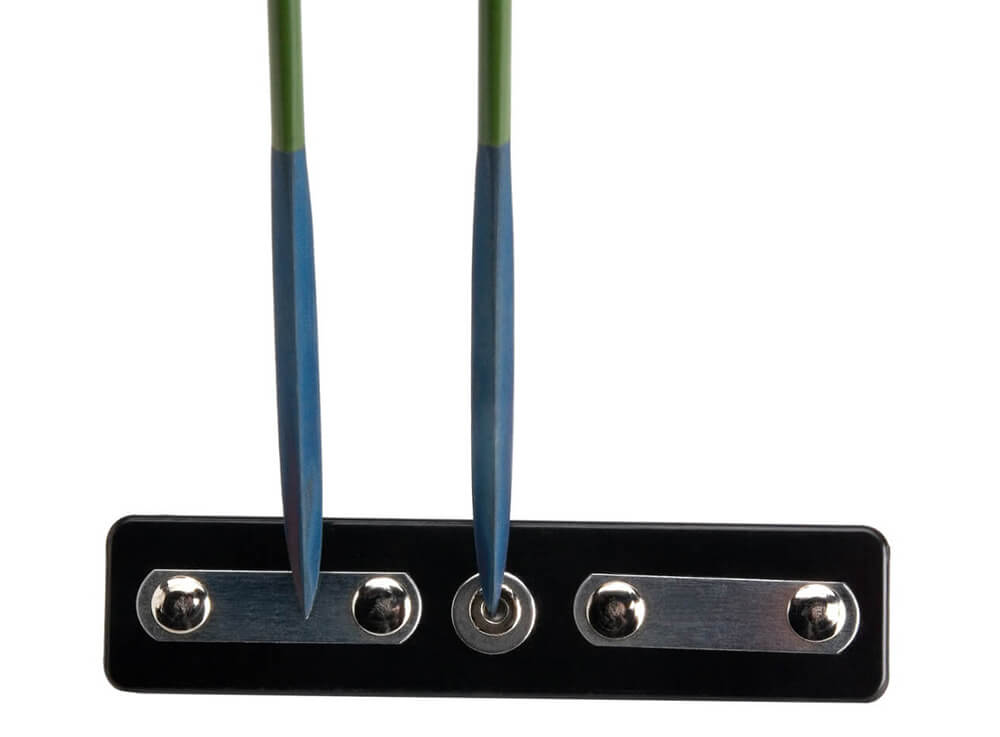

MCS-1

• Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certificationtraceable to NIST.

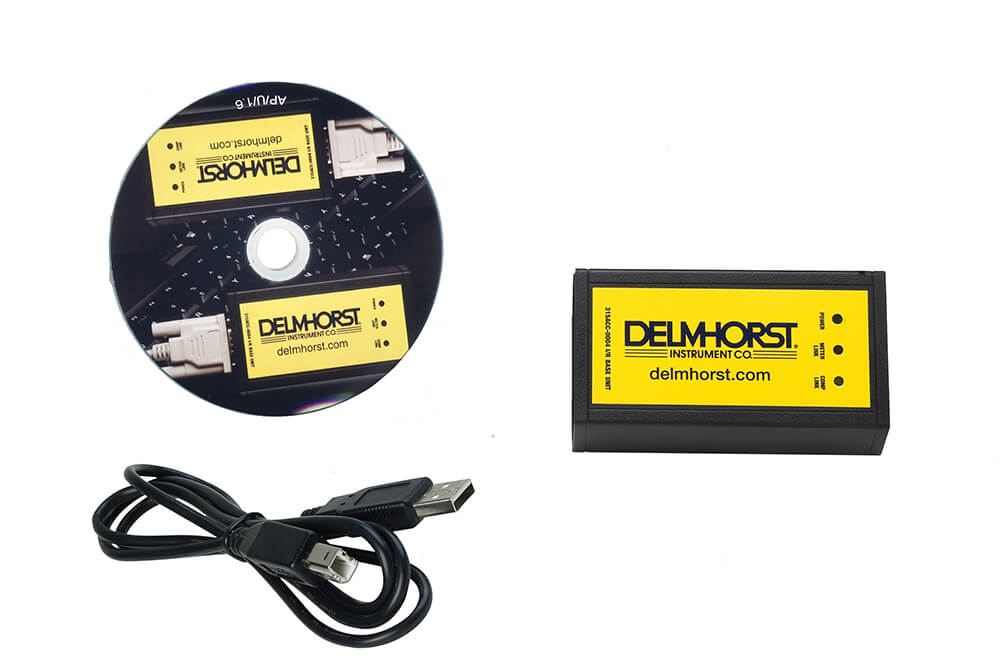

PC/KIT

Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to:

• Export job data to Excel.
• Customize printing options.
• View readings and stats in the application program.
• Save and print individual or group job readings.
• Customize job title.
• View data in Fahrenheit or Celsius.
• Append notes to each job.
• Generate graphical histogram.

All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7/8/10.

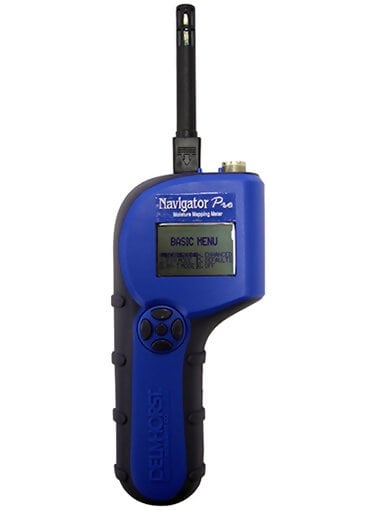

The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Moisture Check, Navigator Pro, RDM-3, RDM-3P, and Total Check moisture meters

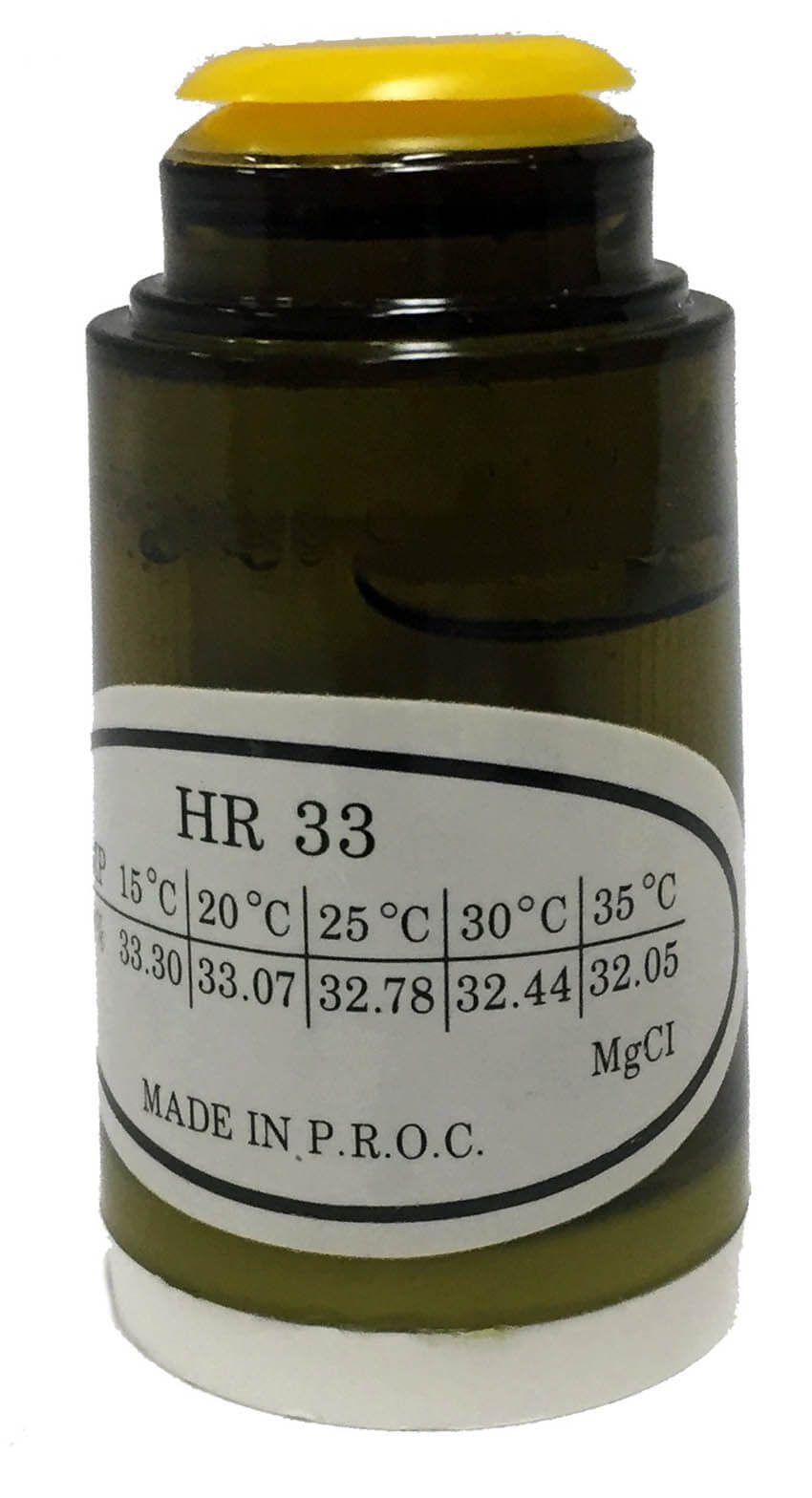

Relative Humidity Test Kit

• The relative humidity test kit is great for testing the accuracy of our detachable RH/T-S1 and RH/T-S3 relative humidity sensors. The air inside the test kit bottle is controlled by a salt solution, which keeps the relative humidity constant. The kit is available with either 33% or 75% relative humidity (Order asRH/TK/33 and RH/TK/75 respectively).

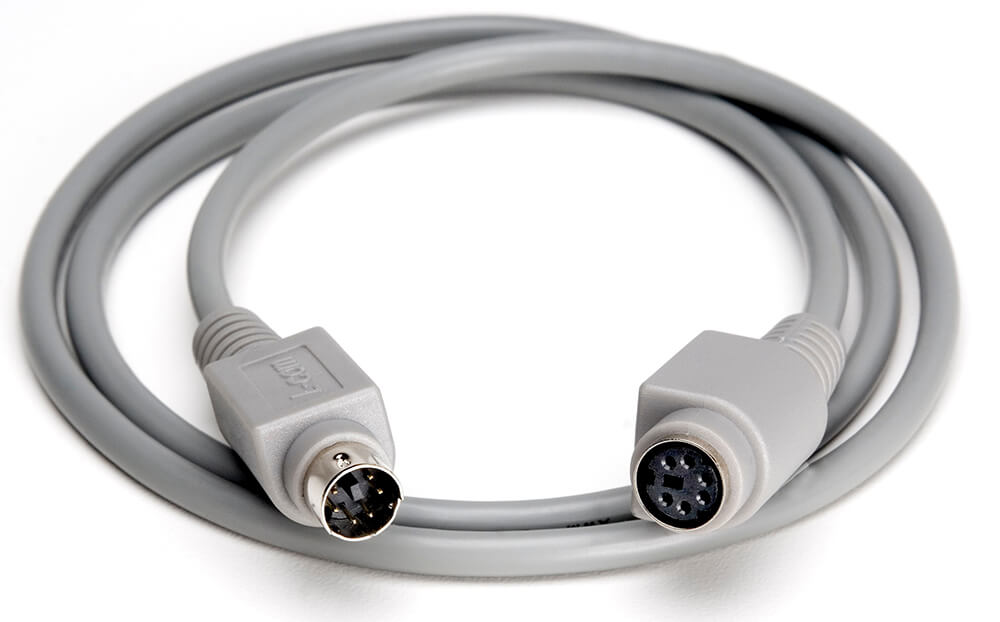

RH/T-C1

• Extension cable that connects to the RH/T-S3, allowing you to easily view your meter’s screen while performing ASTM F-2170 tests on concrete.

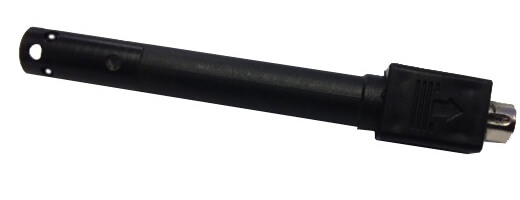

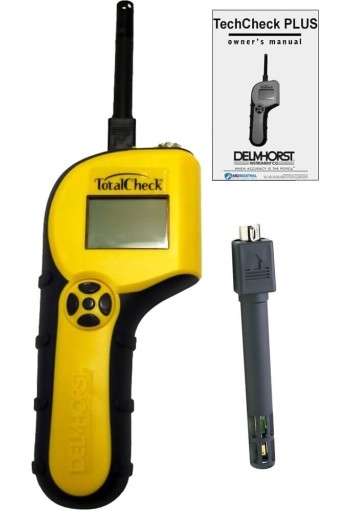

RH/T-S3

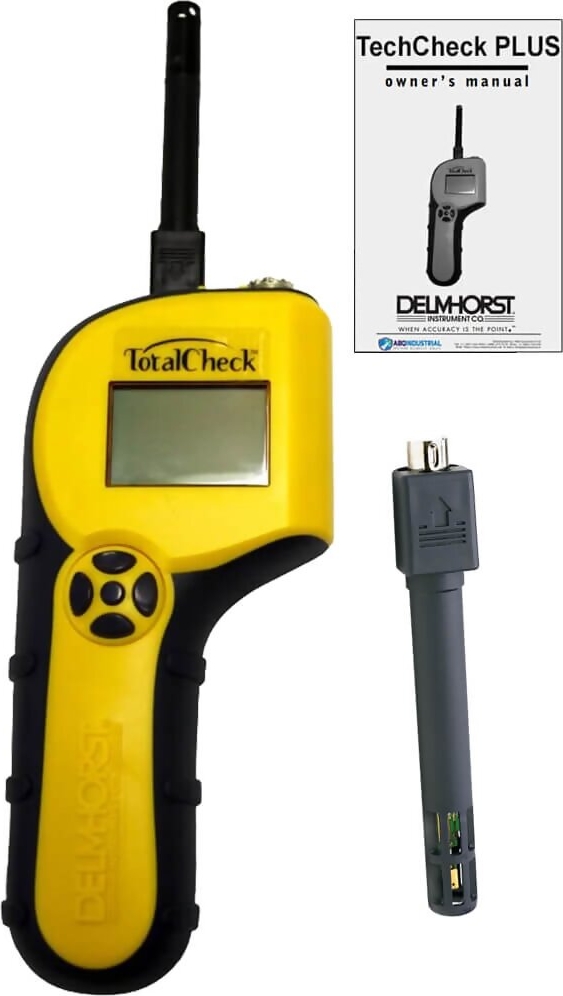

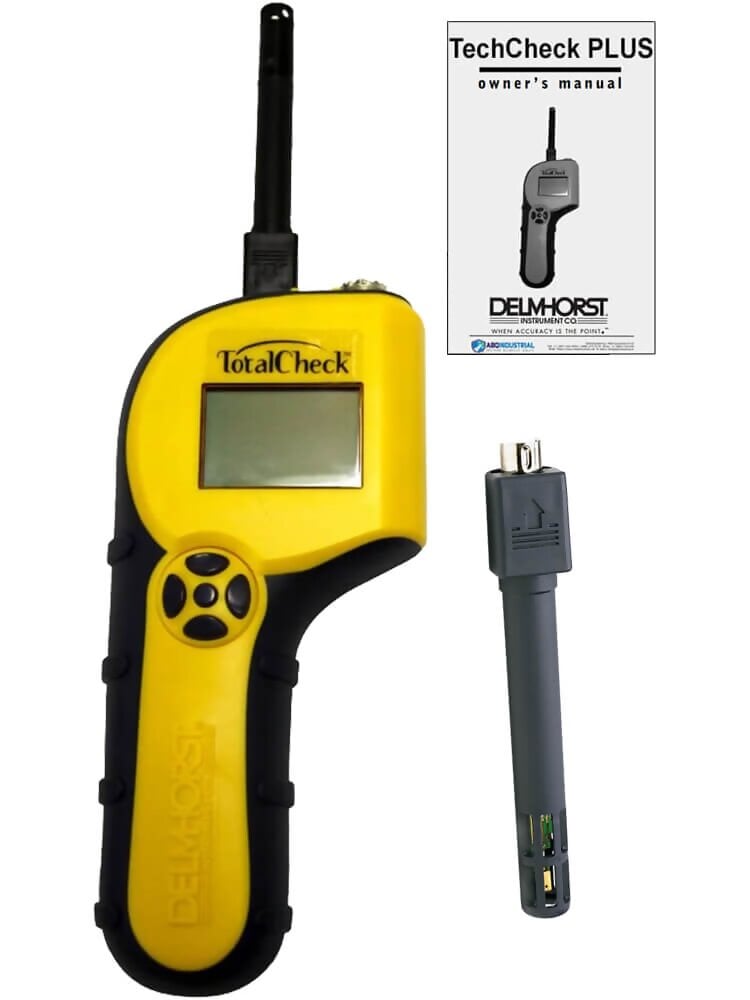

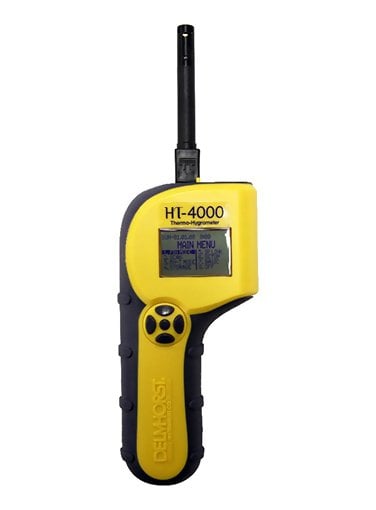

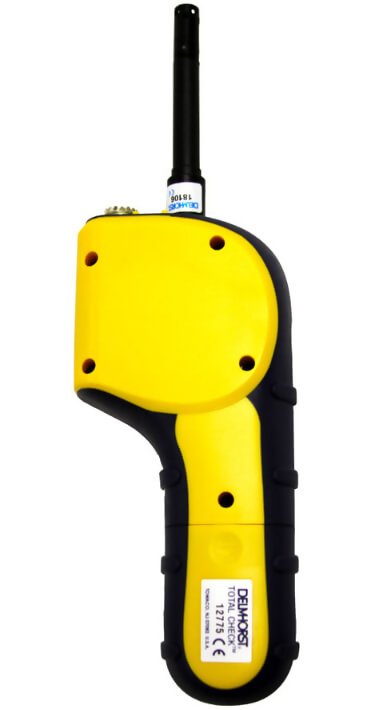

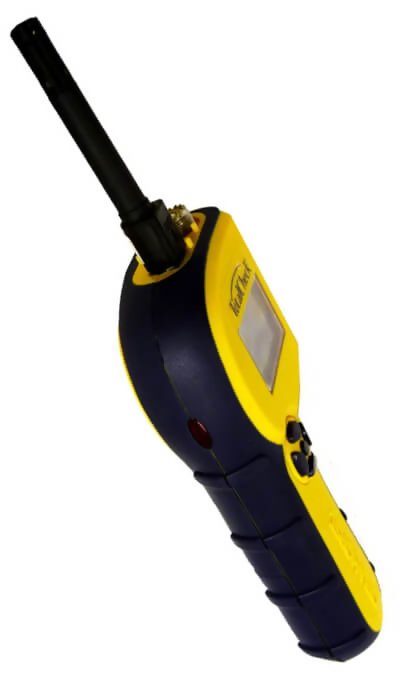

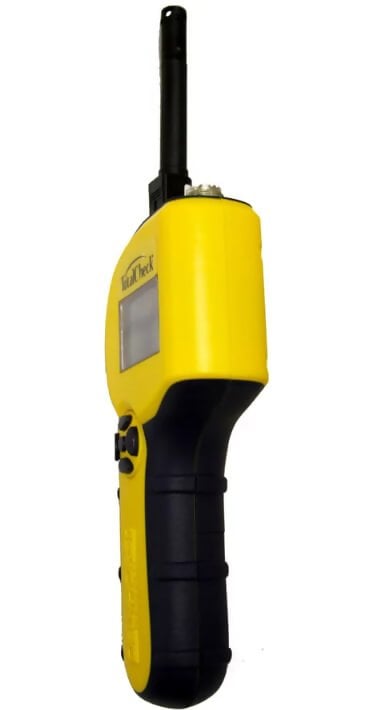

• Detachable relative humidity/temperature sensor that is included with Total Check and HT-4000F. Can be used to obtain ambient RH/T readings, or for performing ASTM F-2170 tests on concrete. Order individually or in packs of 5 as RH/T-S3/5.

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications

• Home inspector: use on wood joists and drywall.
• Paper producer: use on curved surfaces such as cardboard and paper tubes.
• Woodworker: use on timber, poles, and veneer/

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32" length and 11/16" penetration.

26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8" and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications

• Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
• Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
• Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate

Also available as the 26-ED, which includes gauge to measure pin penetration depth

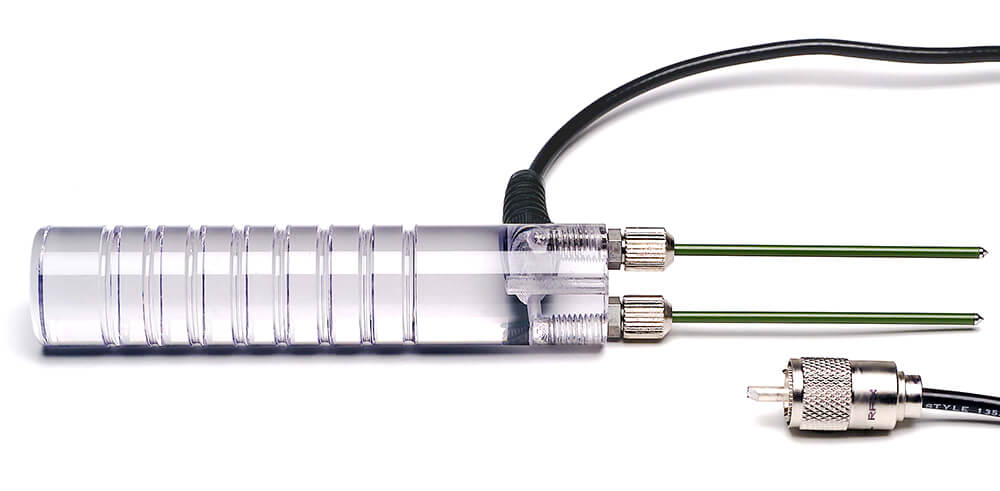

• The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".
• Great for use on roofs, insulation, or EIFS.
• 21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas.

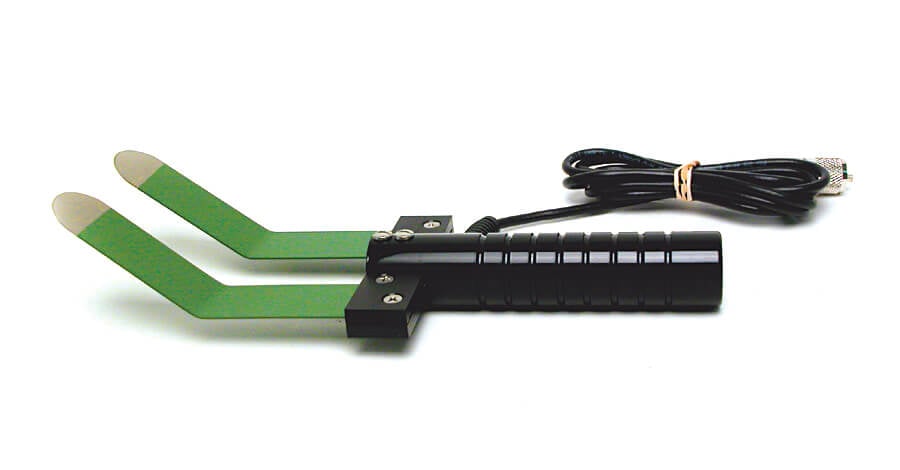

• Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding.
